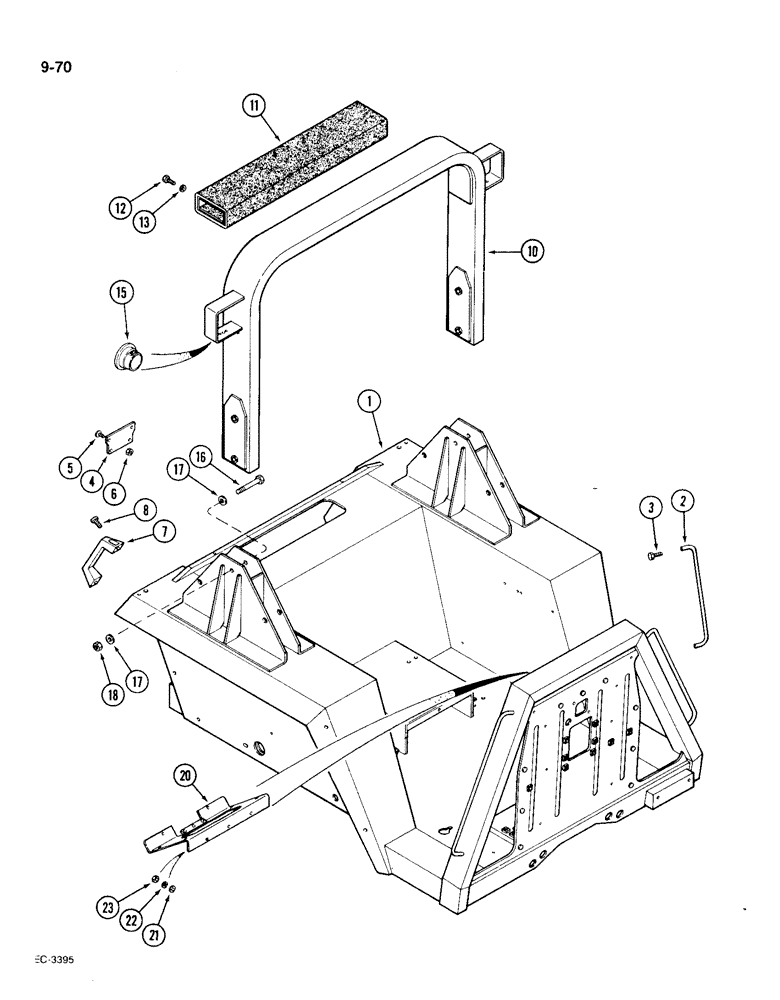

Запчасти Case IH 1896 (9-070) - PLATFORM WITH FENDERS, WITH TWO POST ROPS (09) - CHASSIS/ATTACHMENTS

1

F98345

CAB

PLATFORM - tractor, with fenders

1шт.

2

A143834

HANDLE

- mounting

1шт.

3

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

2шт.

4

A149306

COVER

- rear, fuel tanl water trap

1шт.

5

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- pan head slotted. No. 10-24 x 1/2 inch

4шт.

6

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - Keps, No. 10-24

4шт.

7

F64547

HANDLE

- grab, fender rear

2шт.

8

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- pan head slotted. No. 10-24 x 1/2 inch

4шт.

10

F97442

FRAME - 2 post ROPS

1шт.

11

A181283

COVER

- rollbar (If equipped)

1шт.

12

281-16712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - tapping, hex washer, 1/4 NC x 3/4 inch

4шт.

13

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

15

F64504

BUSHING

- harness

2шт.

16

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch, grade 5

4шт.

17

495-81186

WASHER,13/16" x 2" x .238", HDN

- flat, 13/16 x 2 x 1/4 inch

8шт.

18

131-669

LOCK NUT,3/4"-10, GB

NUT - hex lock, 3/4 inch NC

4шт.

20

F66067

PANEL

- column support

1шт.

21

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

3шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

23

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, greade 5

3шт.
