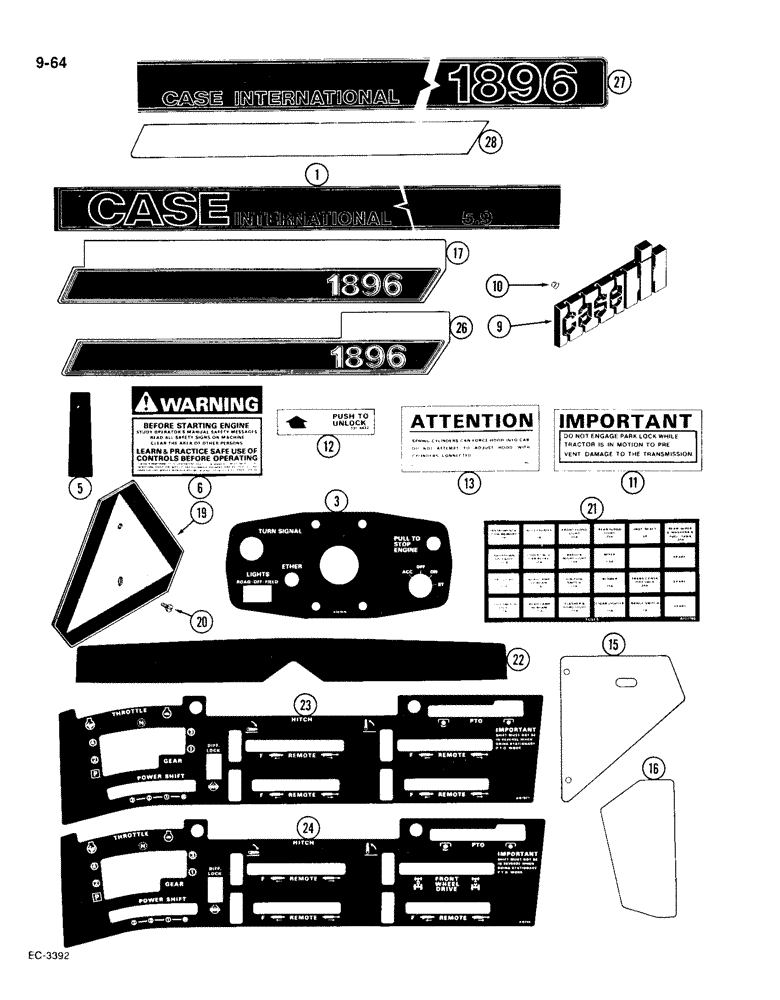

Запчасти Case IH 1896 (9-064) - DECALS, CASE IH (09) - CHASSIS/ATTACHMENTS

A67646

KIT - tractor decals, Includes: Ref. 1 - 16

1шт.

1

A181385

DECAL

- CASE International stripe, right hand (If equipped)

1шт.

1

A181386

DECAL

- CASE International stripe, left hand (If equipped)

1шт.

3

A169264

DECAL

- control panel

1шт.

5

321-4142

DECAL

- sight line

1шт.

6

321-3705

DECAL

- Warning, engine starting

1шт.

9

A181437

EMBLEM CASE/IH

EMBLEM - grill, CASE IH

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self-tapping, 1/4 inch, emblem retaining

2шт.

11

321-5364

DECAL

- park lock

1шт.

12

321-4622

DECAL

- instructions, hood unlatch

1шт.

13

321-4621

DECAL

- hood tilt adjust

2шт.

15

A181392

DECAL

- rear fender, right hand

1шт.

15

A181391

DECAL

- rear fender, left hand

1шт.

16

A181389

DECAL

- fender cover, left hand

1шт.

16

A181390

DECAL

- fender cover, right hand

1шт.

17

A181388

DECAL

- 1896, right fender

1шт.

17

A181387

DECAL

- 1896, left fender

1шт.

19

A163604

DECAL

EMBLEM - SMV

1шт.

20

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

- machine, pan head slotted, 1/4 NC x 3/8 inch

2шт.

21

A181300

DECAL

- fuse location, Start Serial: 17895425

1шт.

21

1975364C1

DECAL

- fuse location, digital display (Not illustrated), Serial Range: -17895425

1шт.

21

1975366C1

DECAL

- fuse location, analogue display (Not illustrated), Serial Range: -17895425

1шт.

22

321-6446

DECAL

- cab roof

1шт.

23

A167977

DECAL

- console, 12 speed

1шт.

24

A167978

DECAL

- console, 12 speed (MFD Tractor)

1шт.

26

A181526

DECAL

- 1896, right fender (2 Post ROPS) (If equipped)

1шт.

26

A181525

DECAL

- 1896, left fender (2 Post ROPS) (If equipped)

1шт.

27

A187159

DECAL

- CASE INTERNATIONAL stripe, right hand (If equipped)

1шт.

27

A187160

DECAL

- CASE INTERNATIONAL stripe, left hand (If equipped)

1шт.

28

A187163

DECAL

- red, rear fender side, right hand (If equipped)

1шт.

28

A187164

DECAL

- red, rear fender side, left hand (If equipped)

1шт.

A46520

DECAL

KIT - decals, French language, not illustrated, Includes decals below

1шт.

Kit also includes Refs. lidted on figure 9-66

1шт.

321-5793

DECAL

- diesel fuel, French language, not illustrated

1шт.

321-6646

DECAL

- warning, engine starting, French language, not illustrated

1шт.

321-5789

DECAL - park lock engagement, French language, not illustrated

1шт.

321-5625

DECAL

- hood unlatch, French language, not illustrated

1шт.

321-5624

DECAL - hood tilt adjust, French language, not illustrated

2шт.

321-6206

DECAL - steering console (Not used), French language, not illustrated

1шт.

321-5792

DECAL - 12 speed chart (Not used), French language, not illustrated

1шт.

321-5792 12 SPEED CHART, IN ENGLISH 321-5653.

1шт.

321-5627

DECAL - 12 speed chart (Not used), French language, not illustrated

1шт.

321-5626

DECAL - 8 speed chart (Not used), French language, not illustrated

1шт.

321-5861

DECAL - fuse location (On firewall), French language, not illustrated

1шт.

A176278

DECAL

- fuse location (Inside fuse panel cover), French language, not illustrated

1шт.
