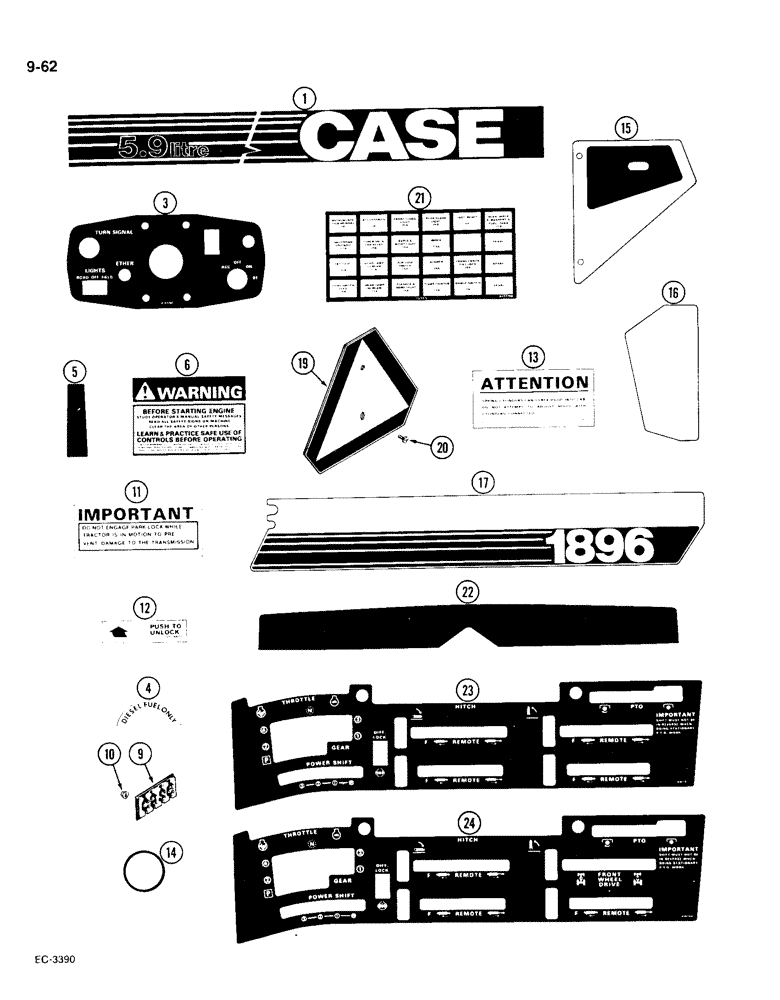

Запчасти Case IH 1896 (9-062) - DECALS, CASE (09) - CHASSIS/ATTACHMENTS

A67612

DECAL

KIT - tractor decals, Includes: Ref. 1 - 16

1шт.

1

A177130

DECAL

- CASE stripe, right hand

1шт.

1

A177131

DECAL

- CASE stripe, left hand

1шт.

3

A169264

DECAL

- control panel

1шт.

4

321-4493

DECAL

- diesel fuel

1шт.

5

321-4142

DECAL

- sight line

1шт.

6

321-3705

DECAL

- Warning, engine starting

1шт.

9

321-4739

EMBLEM

- grill, CASE

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self-tapping, 1/4 inch, emblem retaining

2шт.

11

321-5364

DECAL

- park lock

1шт.

12

321-4622

DECAL

- instructions, hood unlatch

1шт.

13

321-4621

DECAL

- hood tilt adjust

2шт.

14

A167962

DISC

PLATE - flasher, insert (If equipped)

1шт.

15

A176302

DECAL

- rear fender, right hand rear

1шт.

15

A176301

DECAL

- rear fender, left hand rear

1шт.

16

A176290

DECAL

- rear fender, right hand front

1шт.

16

A176289

DECAL

- rear fender, left hand front

1шт.

17

A176564

DECAL

- 1896, right fender

1шт.

17

A176563

DECAL

- 1896, left fender

1шт.

19

A163604

DECAL

EMBLEM - SMV

1шт.

20

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

- machine, pan head slotted, 1/4 NC x 3/8 inch

2шт.

21

A181300

DECAL

- fuse location

1шт.

22

321-6446

DECAL

- cab roof

1шт.

23

A167977

DECAL

- console, 12 speed

1шт.

24

A167978

DECAL

- console, 12 speed (MFD Tractor)

1шт.

A46520

DECAL

KIT - decals, French language, not illustrated, Includes decals below

1шт.

Kit also includes Refs. listed on Figure 9-66.

1шт.

321-5793

DECAL

- diesel fuel, French language, not illustrated

1шт.

321-6646

DECAL

- warning, engine starting, French language, not illustrated

1шт.

321-5789

DECAL - park lock engagement, French language, not illustrated

1шт.

321-5625

DECAL

- hood unlatch, French language, not illustrated

1шт.

321-5624

DECAL - hood tilt adjust, French language, not illustrated

2шт.

321-6206

DECAL - steering console (Not used), French language, not illustrated

1шт.

321-5792

DECAL - 12 speed chart (Not used), French language, not illustrated

1шт.

321-5792 12 SPEED CHART, IN ENGLISH 321-5653.

1шт.

321-5627

DECAL - 12 speed chart (Not used), French language, not illustrated

1шт.

321-5626

DECAL - 8 speed chart (Not used), French language, not illustrated

1шт.

321-5861

DECAL - fuse location (On firewall), French language, not illustrated

1шт.

A176278

DECAL

- fuse location (Inside fuse panel cover), French language, not illustrated

1шт.
