Артикул
Название
Примечание
Количество

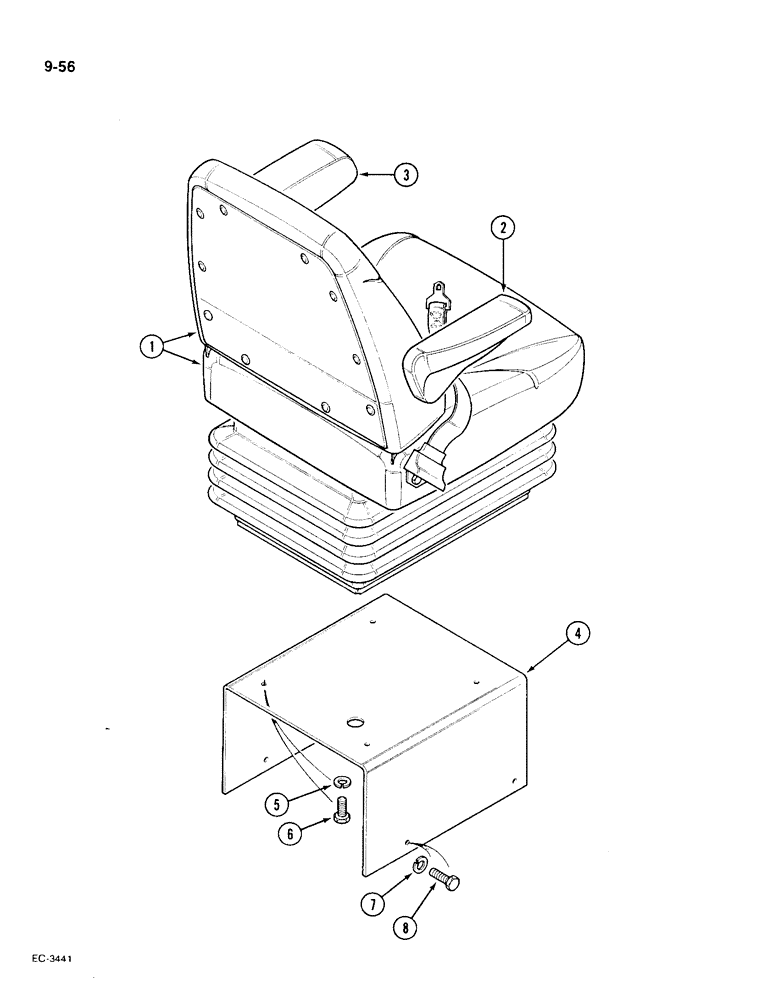

1340261C1
SEAT
ASSEMBLY - air, Includes: Ref. 1 - 3
1шт.
1
1981856C1
PACKAGE, REPAIR
KIT - cushion, seat and backrest
1шт.
NSS
NOT SOLD SEPARAT
CUSHION ASSEMBLY - seat (Order 1981856C1)
1шт.
1343826C1
SHAFT
ASSEMBLY - seat tilt
1шт.
138-2022
PIN,5/32" x 1 1/4", Coiled
1шт.
1981826C1
KNOB
- seat tilt
1шт.
138-77
LOCK PIN,5/32" x 1", Slotted
PIN, 5/32" x 1", Slotted
1шт.
1974711C1
LEVER
- backrest tilt
1шт.
30299R1
SCREW,Cross Oval Hd, M6 x 12
- machine, oval head cross recess, 6 x 12 mm
1шт.
1981851C1
PLATE
- switch
1шт.
1981852C2
IGNITION SWITCH
SWITCH ASSEMBLY - air control
1шт.
187-1333
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"
SCREW - self-tapping, pan Phillips head, No. 10 x 3/4 inch
2шт.
1974722C1
CLIP,ELECTRICAL
CLIP - retaining
4шт.
NSS
NOT SOLD SEPARAT
CUSHION ASSEMBLY - backrest (Order 1981856C1)
1шт.
1981828C1
BUTTON
KNOB - lumbar control
1шт.
138-303
LOCK PIN,3/16" x 1 1/8", Slotted
Pin, 3/16" x 1 1/8", Slotted
1шт.
NSS
NOT SOLD SEPARAT
COVER - back (Order 1981856C1)
1шт.
1974722C1
CLIP,ELECTRICAL
CLIP - retaining
10шт.
2
1974703C1
SET OF PARTS
KIT - armrest, right hand
1шт.
NSS
NOT SOLD SEPARAT
ARMREST ASSEMBLY - right (Order 1974703C1)
1шт.
NSS
NOT SOLD SEPARAT
PIN - drive (Order 1974703C1)
1шт.
3
1981818C1
ARMREST
KIT - armrest, left hand
1шт.
NSS
NOT SOLD SEPARAT
ARMREST ASSEMBLY - right hand (Order 1981818C1)
1шт.
NSS
NOT SOLD SEPARAT
PIN - drive (Order 1981818C1)
1шт.
4
1975275C1
CHANNEL
ASSEMBLY - seat mounting
1шт.
6
413-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
- hex, 5/16 NC x 1-3/4 inch, grade 5
4шт.
7
192-46
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
8
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
4шт.
1990548C4
KIT
service, air seat, air line and fittings
1шт.
Выбрано товаров: 30
