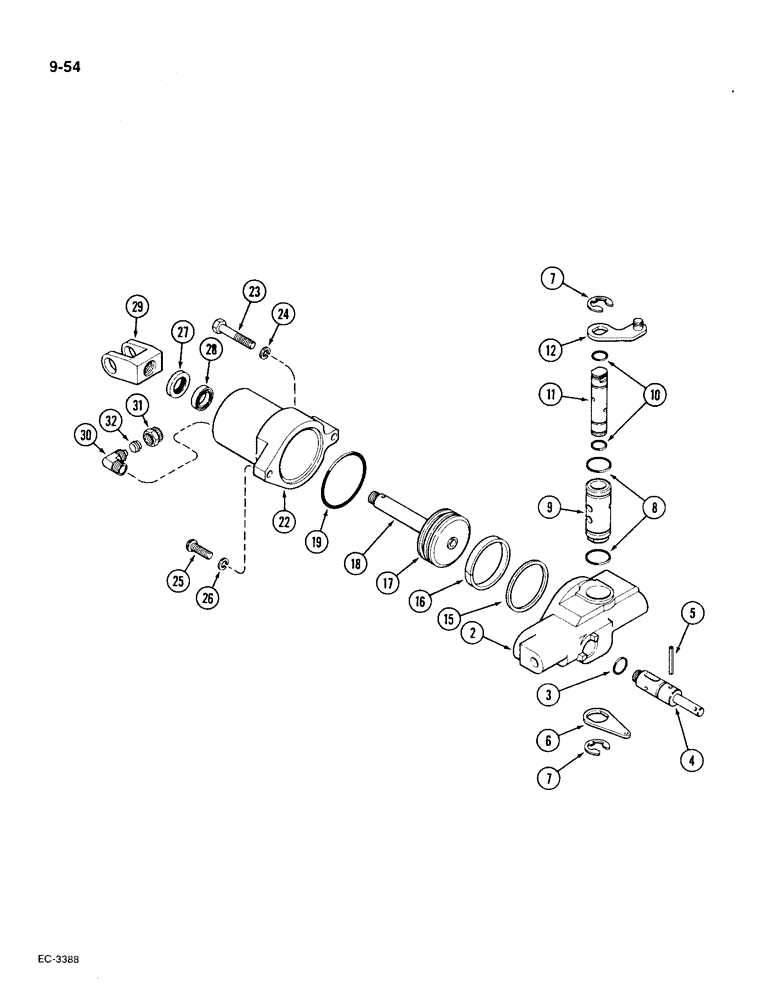

Запчасти Case IH 1896 (9-054) - CYLINDER ASSEMBLY, AIR/OIL SUSPENSION SEAT (09) - CHASSIS/ATTACHMENTS

A49828

CYLINDER

ASSEMBLY - module, Includes: Ref. 2 - 32

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - cylinder (Order A49828)

1шт.

3

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- 35/64 ID x 7/64 inch

1шт.

4

A49782

SPOOL

- damper

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - roll (Order A49828)

1шт.

6

A49780

LEVER

- push valve

1шт.

7

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

2шт.

8

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- valve sleeve, outer

2шт.

9

NSS

NOT SOLD SEPARAT

VALVE - push (Order A49828)

1шт.

10

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- 27/64 ID x 7/64 inch

2шт.

11

A49781

SPOOL

- push valve

1шт.

12

A49783

LEVER

- push valve spool

1шт.

15

A49687

RING

SEAL - piston ring

1шт.

16

A49685

RING

SEAL - piston ring

1шт.

17

G102152

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

- 2-3/64 ID x 7/64 inch

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Order A49828)

1шт.

19

S5735

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

- cylinder barrel

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - cylinder barrel (Order A49828)

1шт.

23

NSS

NOT SOLD SEPARAT

BOLT - hex, retaining (Order A49828)

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - lock (Order A49828)

1шт.

25

NSS

NOT SOLD SEPARAT

BOLT - special, retaining

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - lock (Order A49828)

1шт.

27

A49684

WIPER SEAL

WIPER - piston rod

1шт.

28

A49686

SEAL

- piston rod

1шт.

29

NSS

NOT SOLD SEPARAT

CLEVIS - cylinder (Order A49828)

1шт.

30

A49785

ELBOW

- 90 degree, brass

1шт.

31

A49784

CONNECTOR, ELEC

CONNECTOR - special nut, Includes: Ref. 32

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE - elbow (Order A49784)

1шт.

1977388C1

GASKET KIT

O-RING, for service of A49828 and A49610 cyl assy;

1шт.

1977961C1

LEVER ASSY.

ref #4 spool and ref #6 lever as one piece

1шт.
