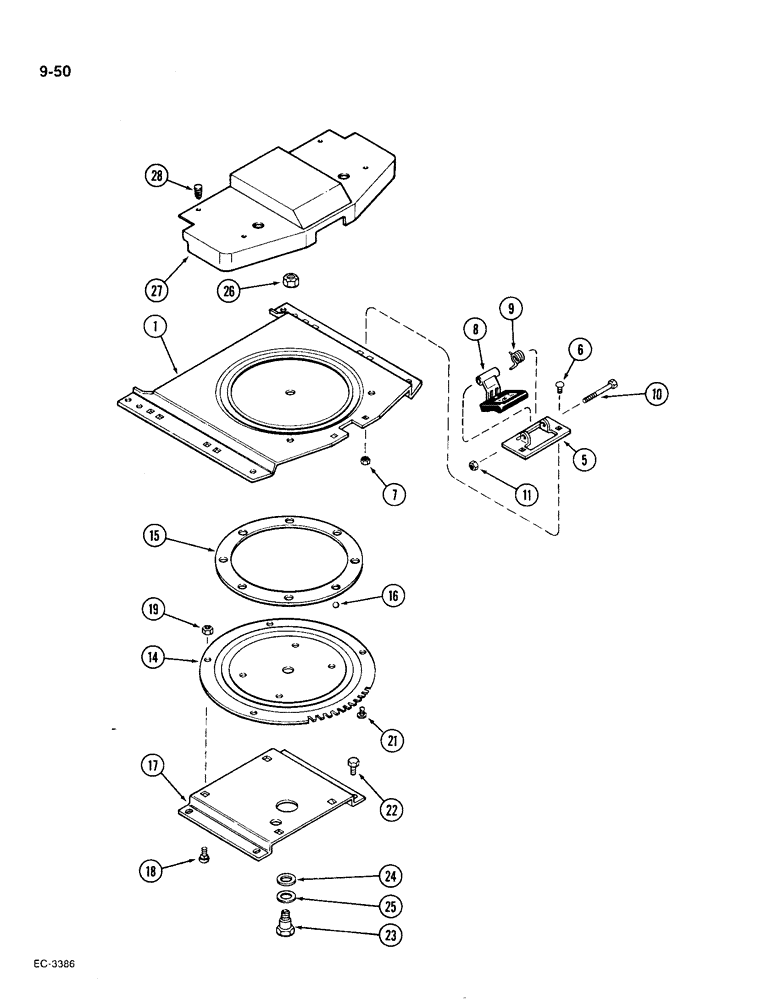

Запчасти Case IH 1896 (9-050) - SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

A181028

SEAT

ASSEMBLY - air/oil suspension, Includes: Ref. 1 - 28

1шт.

A49817

SUSPENSION

ASSEMBLY - hydraulic (Later production), Includes: Ref. 1 - 26

1шт.

A49818

HOUSING

ISOLATOR ASSEMBLY - seat (Later production), Includes: Ref.

1шт.

A49525

SEAT

ISOLATOR ASSEMBLY - seat (Early production), Includes: Ref. 1 - 26

1шт.

A49822

PLATE

SWIVEL ASSEMBLY - seat, Includes: Ref. 1 - 26

1шт.

1

A49551

PLATE

- top, swivel

1шт.

5

A49830

SUPPORT

BRACKET - latch, swivel

1шт.

6

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT - round head, square neck, 1/4 NC x 1/2 inch

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

8

A49831

LATCH

- swivel

1шт.

9

A49554

SPRING

- latch

1шт.

10

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

11

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

14

A49556

PLATE

- latch

1шт.

15

A49555

LARGE PLATE

RETAINER - ball

1шт.

16

211-315

BALL,1/2" Dia

- steel, 1/2 inch diameter

8шт.

17

A49557

PLATE

- mounting, swivel

1шт.

18

411-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 2

BOLT - round head, square neck, 3/8 NC x 3/4 inch

4шт.

19

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

21

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- pan head, 1/4 NC x 1/2 inch

4шт.

22

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

23

A49558

BOLT

- shoulder

1шт.

24

A49559

WASHER

- nylon, shoulder bolt

1шт.

25

F15105

WASHER

- thrust

1шт.

26

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

1шт.

27

A180423

SHROUD

- swivel (Later production)

1шт.

28

A49622

CLIP

- retaining (Later production)

4шт.
