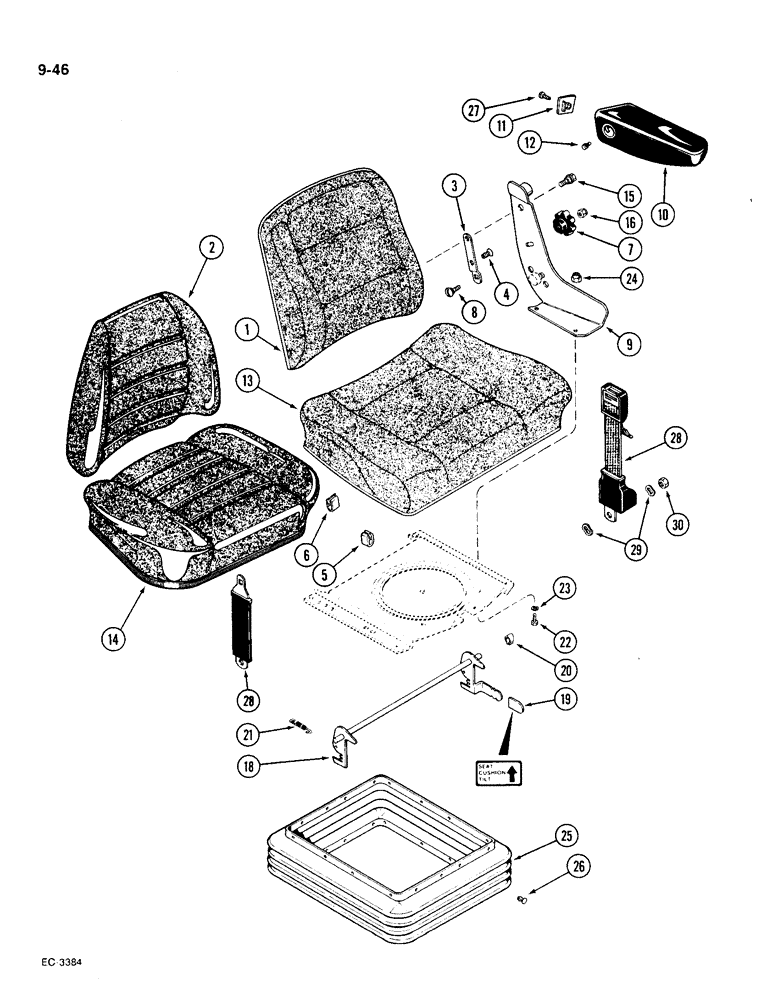

Запчасти Case IH 1896 (9-046) - SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A181028
SEAT
ASSEMBLY - air/oil suspension, Includes: Ref. 2 - 30
1шт.
1
A49826
SEAT
CUSHION - backrest (Later production)
1шт.
2
A49521
BACKREST
CUSHION - backrest (Early production)
1шт.
3
A48343
LINK
- tilt, backrest
2шт.
4
473-13816
SCREW,FLAT, 3/8" - 16 x 1"
- flat head, slotted, 3/8 NC x 1 inch
2шт.
5
N9034
SEAT
CLIP - retaining, seat cushion
2шт.
6
N6674
CLIP
- retaining, seat cushion
2шт.
7
A45487
BUTTON
KNOB - tilt, backrest
2шт.
8
A45527
CARRIAGE BOLT
- retaining, link
2шт.
9
A49517
BRACKET
- armrest, right
1шт.
9
A49516
BRACKET
- armrest, left
1шт.
10
A49515
ARMREST
- seat, right hand
1шт.
10
A49514
ARMREST
- seat, left hand
1шт.
11
A45584
COVER
PLATE - cover, right armrest
1шт.
11
A45583
PLATE
- cover, left armrest
1шт.
12
61-3256
HEX SOC SCREW,1/4"-20 x 3/8"
SCREW, , Armrest stop Hex Soc Hd, 1/4"-20 x 3/8"
2шт.
13
A49825
SEAT
CUSHION - seat (Later production)
1шт.
14
A49520
CUSHION
- seat (Early production)
1шт.
15
A48346
BOLT
- special, back tilt
2шт.
15
A47781
BOLT,Hex Flg, 1/2" - 13 x 1.25", Gr 5
BOLT - special, seat tilt
2шт.
16
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex lock, 3/8 inch NC
2шт.
18
A49518
LEVER
TILT ASSEMBLY - seat
1шт.
19
A47347
CAP
- tilt lever
1шт.
20
A49519
SPACER
- lever
2шт.
21
NLS
NO LONGER SERVICED
- tension, tilt lever
2шт.
22
113-291
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
- hex, 3/8 NC x 3/4 inch, grade 5
4шт.
23
A47352
WASHER
- wave, 1-1/8 inch ID
4шт.
24
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex lock, 3/8 inch NC
4шт.
25
A49618
BOOT
- rubber
1шт.
26
A49658
FASTENER
CLIP - canoe
28шт.
27
263-50510
SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"
SCREW - tapping, pan head slotted, No. 10 x 5/8 inch
2шт.
28
A46982
SAFETY BELT
SAFETY BELT
1шт.
29
A46987
WASHER
- wave
4шт.
30
131-1100
LOCK NUT,1/2"-13, GA
NUT, LOCK, , Continued on Figure 9-48 1/2"-13, GA
2шт.
Выбрано товаров: 34
