Артикул
Название
Примечание
Количество
A177457
SEAT

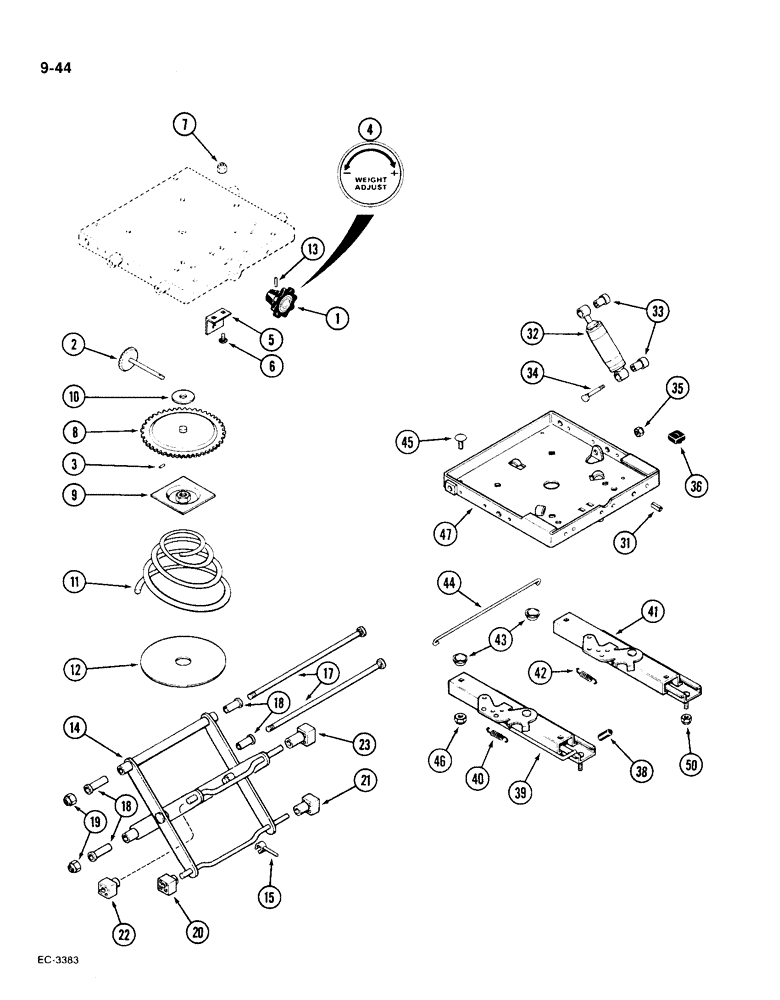

ASSEMBLY - vinyl, with suspension unit (Without swivel), Includes: Ref. 1 - 47
1шт.
1
A45508
BUTTON
KNOB - weight adjustment
1шт.
2
A45513
GEAR
ASSEMBLY - weight adjustment
1шт.
3
138-77
LOCK PIN,5/32" x 1", Slotted
PIN, 5/32" x 1", Slotted
1шт.
4
A45511
DECAL
- weight adjustment
1шт.
5
A45531
BRACKET
- shaft
1шт.
6
411-48
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT - round head, square neck, 1/4 NC x 1/2 inch
2шт.
7
131-1351
FLANGE NUT,Flg, 1/4"-20
NUT, LOCK, Flg, 1/4"-20
2шт.
8
A45505
GEAR
ASSEMBLY - suspension plate
1шт.
9
A45504
SPRING WASHER
- spring
1шт.
10
D82834
WASHER
- thrust
1шт.
11
A45497
SPRING
- suspension, weight
1шт.
12
A45530
PAD
- spring
1шт.
13
138-2024
PIN,5/32" x 1", Coiled
1шт.
14
N6872
ARM
ASSEMBLY - suspension
1шт.
15
A49160
INDICATOR
- ride height
1шт.
17
N6871
SHAFT
- bearing
2шт.
18
N6873
TUBE,0.501" ID x 0.63" OD x 2" L
BUSHING - shaft
4шт.
19
131-1100
LOCK NUT,1/2"-13, GA
NUT, LOCK, 1/2"-13, GA
2шт.
20
A45512
BLOCK
- slider, 1-3/16 inch
1шт.
21
A45516
BLOCK
- slider, 2-3/16 inch
1шт.
22
A45515
BLOCK
- slider, 1-9/16 inch
1шт.
23
CASA45517
BLOCK
- slider, 2-9/16 inch
1шт.
31
138-134
LOCK PIN,1/4" x 1", Slotted
PIN, 1/4" x 1", Slotted
1шт.
32
D82835
SHOCK ABSORBER
ABSORBER - shock, seat
1шт.
33
A45501
BUSHING,0.504" ID x 0.87" OD x 1.417"
BEARING - shock absorber
2шт.
34
A45056
STEP BOLT
BOLT - shoulder
1шт.
35
131-179
LOCK NUT,3/8"-16, GA
NUT - hex lock, 3/8 inch NC
1шт.
36
A45054
BUMPER,Neoprene
- seat
2шт.
A49654
ADJUSTER
ASSEMBLY - seat, Includes: Ref. 38 - 47
1шт.
38
A45481
HANDLE
GRIP - plastic, lever
1шт.
39
A49653
SLIDE
ASSEMBLY - seat mounting, right hand (With spring and handle)
1шт.
40
L35503
SPRING
- return, slide
1шт.
41
A45523
SLIDE
ASSEMBLY - seat mounting, left hand (With spring)
1шт.
42
L35503
SPRING
- return, slide
1шт.
43
S115782
BUSHING
SPACER - slide
4шт.
44
A48182
ROD
- connecting, latch
1шт.
45
11-514
CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2
BOLT - round head, square neck, 5/16 NC x 7/8 inch
2шт.
45
A47171
CARRIAGE BOLT
BOLT - special, square neck, lower base
2шт.
46
131-351
LOCK NUT,5/16"-18, GA
NUT - hex lock, 5/16 inch NC
4шт.
47
A48181
BASE
- lower
1шт.
50
131-205
LOCK NUT,5/16"-18
NUT - hex lock, 5/16 inch NC
4шт.
Выбрано товаров: 42
