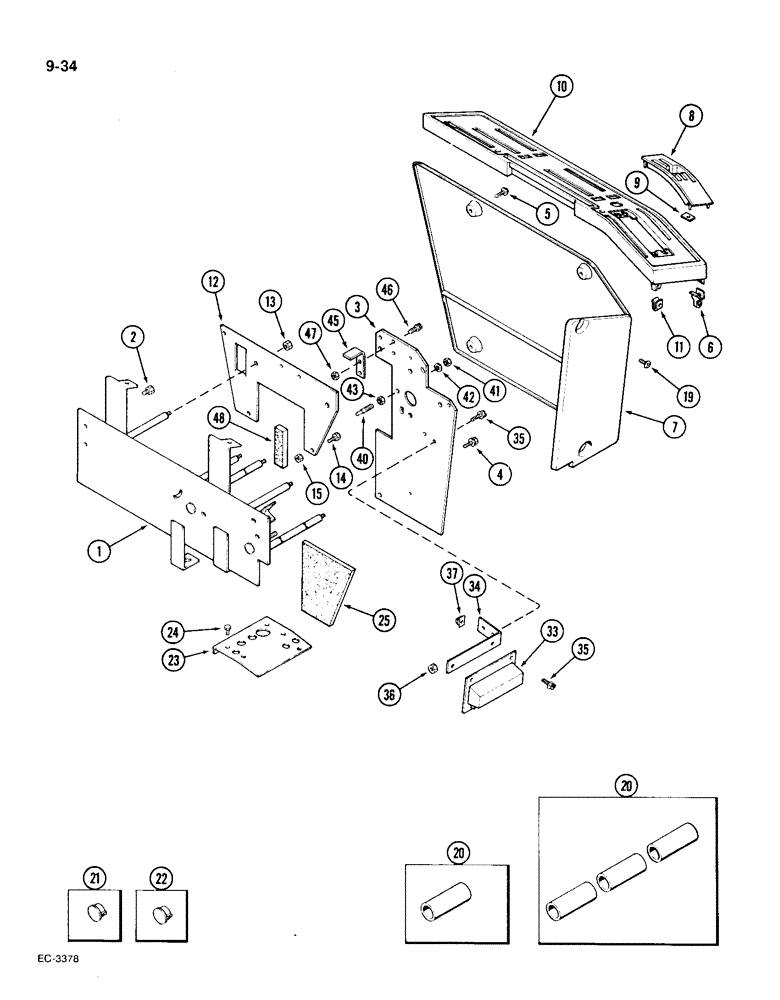

Запчасти Case IH 1896 (9-034) - CONTROL CONSOLE (09) - CHASSIS/ATTACHMENTS

1

A181983

SUPPORT

- control console

1шт.

2

281-44910

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW - tapping, hex washer, 3/8 NC x 5/8 inch

5шт.

3

A176862

SUPPORT

- gear shift shaft

1шт.

4

281-16712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - tapping, hex washer, 1/4 Nc x 3/4 inch

1шт.

5

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - tapping, round x-recess, No. 10 x 3/54 inch

5шт.

6

131-862

SPRING NUT,Tinn, U, #10

- Tinnerman, N0. 10

2шт.

7

A169853

GUARD

SHROUD - console

1шт.

8

A164753

COVER

INSERT - shifter cover

1шт.

9

131-437

LOCK NUT,Self-Threadin, 5/16"

NUT - self threading, 5/32 inch

4шт.

10

A165283

COVER

- console

1шт.

11

31-627

PIPE

NUT - Tinnerman, 1/4 inch NC

6шт.

12

A166534

SUPPORT

- remote shaft

1шт.

13

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex jam, 3/8 inch NC

5шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, grade 5

2шт.

15

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

19

281-16712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - tapping, hex washer, 1/4 Nc x 3/4 inch

6шт.

20

A67318

BUSHING

SPACER - control lever

1шт.

21

353-406

PLUG,Dome, .625" hole, Nylon

- nylon, 5/8 inch

3шт.

22

353-410

PLUG,Dome, .875" hole, Nylon

- nylon, 7/8 inch (without hitch)

2шт.

23

A145830

PLATE

- mounting, shift cable

1шт.

24

276-55916

SELF-TAP SCREW,Hex Hd, 3/8"-16 x 1"

SCREW - tapping, hex head, 3/8 NC x 1 inch

5шт.

25

A147799

FOAM

- console shift support

1шт.

33

A164734

BOARD

ASSEMBLY - relay

1шт.

34

A162959

BRACKET

- mounting, relay board

1шт.

35

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch, grade 5

4шт.

36

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, grade 5

2шт.

37

131-627

NUT,Tinn, U, 1/4"-20

- Tinnerman, U-type, 1/4 inch NC

2шт.

40

A176565

STRUT

STUD - shift stop

1шт.

41

113-1281

NUT - hex jam, 5/16 inch NC

1шт.

42

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

43

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, grade 5

1шт.

45

A176860

BRACKET

- range lever stop

1шт.

46

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch, grade 5

2шт.

47

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, grade 5

2шт.

48

A169860

FOAM

- padding, console shroud

2шт.
