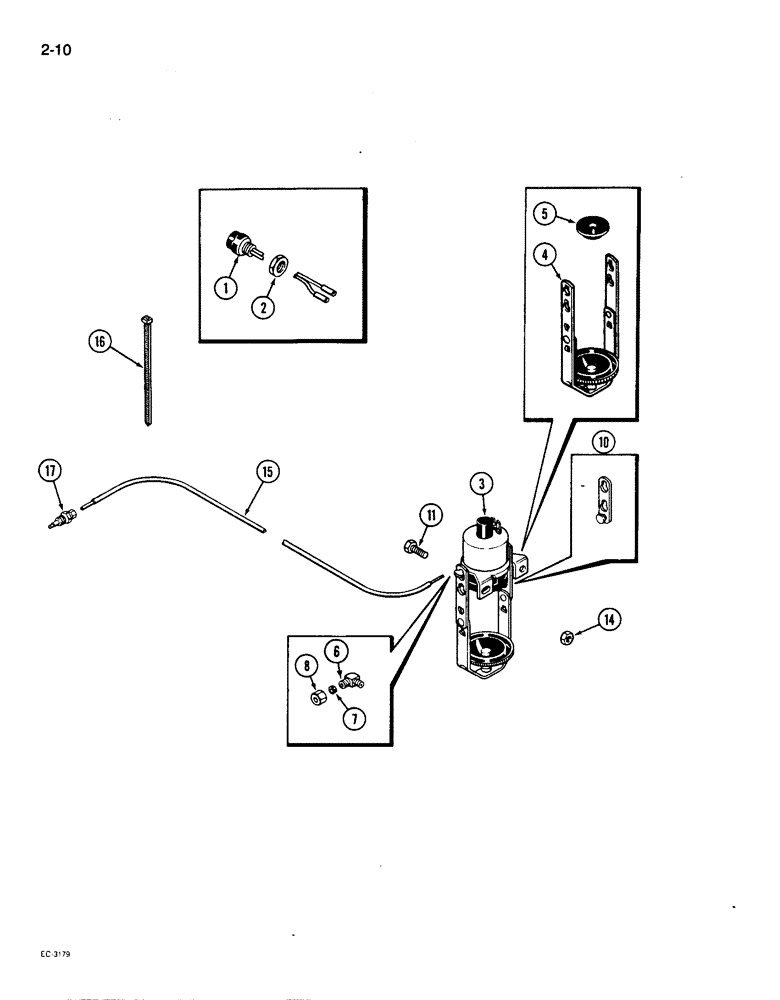

Запчасти Case IH 1896 (2-10) - ETHER STARTING SYSTEM, 6T-590 ENGINE (02) - ENGINE

1

A135520

SWITCH

- cold start

1шт.

2

425-1110

NUT,5/8"-18, G5

1шт.

3

A143381

SOLENOID

ASSEMBLY - ether start, Includes: Ref. 4 - 8

1шт.

4

A45687

CLAMP

HANGER - ether can

1шт.

5

395686R1

GASKET

- rther can

1шт.

6

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Incl. Ref 7 & 8 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

10

R30812

LINK

- extension, hanger

2шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, grade 5

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, grade 5

2шт.

15

A149932

TUBE

ether injection - 2006 mm (79 in)

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

17

A172900

NOZZLE CAP

NOZZLE - atomizer (With nut and sleeve)

1шт.
