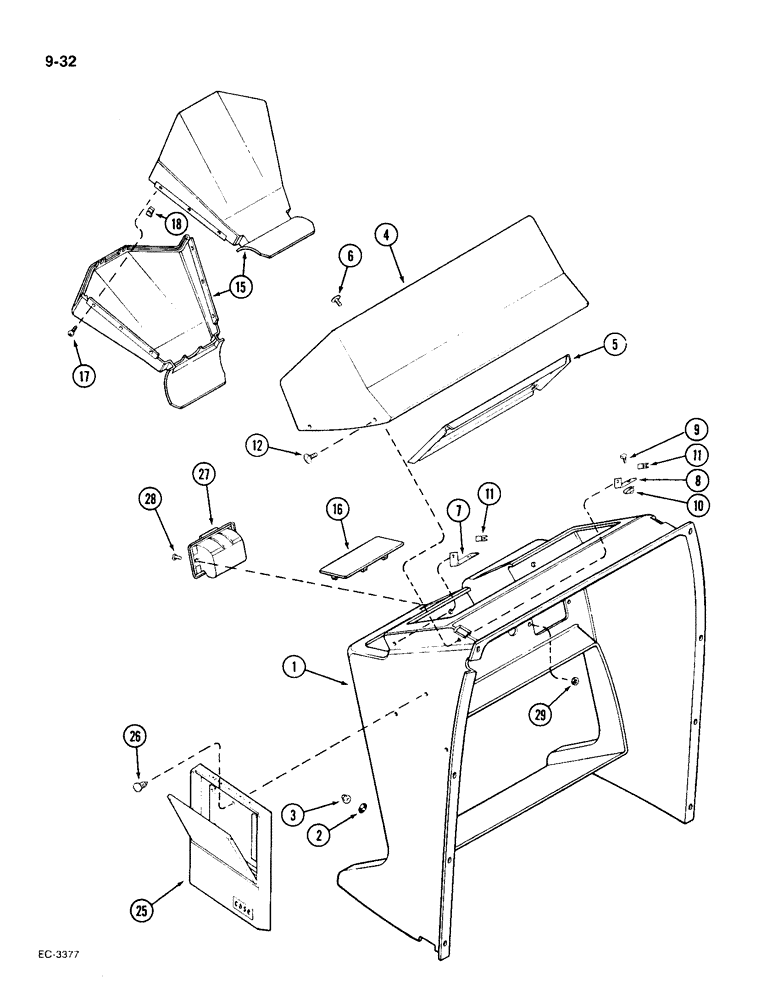

Запчасти Case IH 1896 (9-032) - INSTRUMENT PANEL SHROUD (09) - CHASSIS/ATTACHMENTS

1

A169013

GUARD

SHROUD - lower, instrument panel

1шт.

2

A160525

WASHER

- nylon, shroud

8шт.

3

129-886

CROWN NUT,Crown, 1/4"-20

- dome, 1/4 inch NC (Black)

8шт.

4

A169014

GUARD

SHROUD - upper, instrument panel

1шт.

5

A161073

SUPPORT

- instrument cluster

1шт.

6

260-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - tapping, pan x-recess, No. 10 x 1/2 inch

2шт.

7

A139109

BRACKET

- lower, shroud support

2шт.

8

A139110

BRACKET

- upper, shroud support

2шт.

9

113-68

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

- hex, 1/4 Nc x 1/2 inch, grade 5

4шт.

10

131-627

NUT,Tinn, U, 1/4"-20

- Tinnerman, U-type, 1/4 inch NC

6шт.

11

131-644

NUT,Tinn, #14

- Tinnerman, J-type, No. 14

6шт.

12

263-16716

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1"

SCREW - tapping, pan slotted, 1/4-14 x 1 inch

6шт.

15

A169015

GUARD

SHROUD - steering column

2шт.

16

A169002

COVER

- fuse panel

1шт.

17

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - tapping, pan x-recess, No. 10 x 3/4 "

10шт.

18

131-606

SPRING NUT,Tinn, U, #10

- Tinnerman, U-type, No. 10

10шт.

25

A177376

BOX

- operators manual

1шт.

26

A162364

FASTENER

- manual box

3шт.

27

A165449

ASH TRAY

TRAY - ash

1шт.

28

151-548

RIVET,Pop, 1/8" x .462"

- ashtray to lower shroud

2шт.

29

495-31016

WASHER,#6

2шт.
