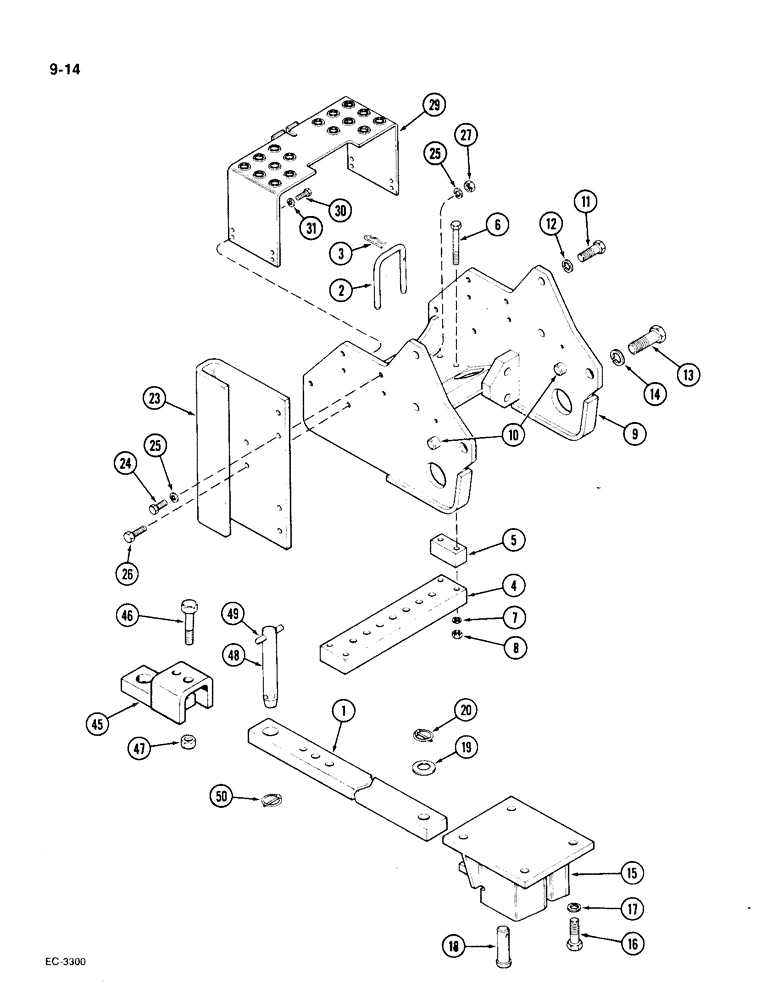

Запчасти Case IH 1896 (9-014) - DRAWBAR, WITH HITCH (09) - CHASSIS/ATTACHMENTS

1

A137939

DRAWBAR, SWINGING

DRAWBAR - tractor

1шт.

2

A135985

RETAINER

- drawbar swing

1шт.

3

136-166

COTTER PIN,Int, 9/32" x .120"

PIN - hair, internal type, 9/32 x 2 inch

1шт.

4

A135981

BAR

- support, drawbar rear

1шт.

5

A162830

SPACER

- drawbar

2шт.

6

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

9

A164218

BRACKET

- support, drawbar, Includes: Ref. 10

1шт.

10

A161440

PIN

- link, crossbar

2шт.

11

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

12

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

13

13-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 5

- hex, 1 NC x 2-3/4 inch, grade 5

2шт.

14

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

15

A162815

BRACKET

- pivot, drawbar

1шт.

16

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

17

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

18

A137940

PIN,25.4mm OD x 95.25mm L

- pivot, drawbar

1шт.

19

A160059

WASHER

- pivot pin

1шт.

20

A30338

PIN

- klik

1шт.

23

A162833

BRACKET

STOP - sway, draft arm

2шт.

24

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

2шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

26

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

29

A164215

GUARD

SHIELD - PTO

1шт.

30

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

31

492-11038

LOCK WASHER,3/8"

4шт.

A67493

CLEVIS

YOKE ATTACHMENT - drawbar, Includes: Ref. 45 - 50

1шт.

45

A161230

CLEVIS

YOKE - drawbar

1шт.

46

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch, grade 8

1шт.

46

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex, 5/8 NC x 2-3/4 inch, grade 8

1шт.

47

129-572

NUT,3/4"-10, G8

1шт.

47

429-1010

NUT,5/8"-11, G8

1шт.

A65764

PIN

ASSEMBLY - implement, Includes: Ref. 48 - 50

1шт.

48

A65765

PIN - drawbar

1шт.

49

138-326

LOCK PIN,3/8" x 3 1/4", Slotted

Pin, 3/8" x 3 1/4", Slotted

1шт.

50

A30338

PIN

- klik, 1/4 inch

1шт.
