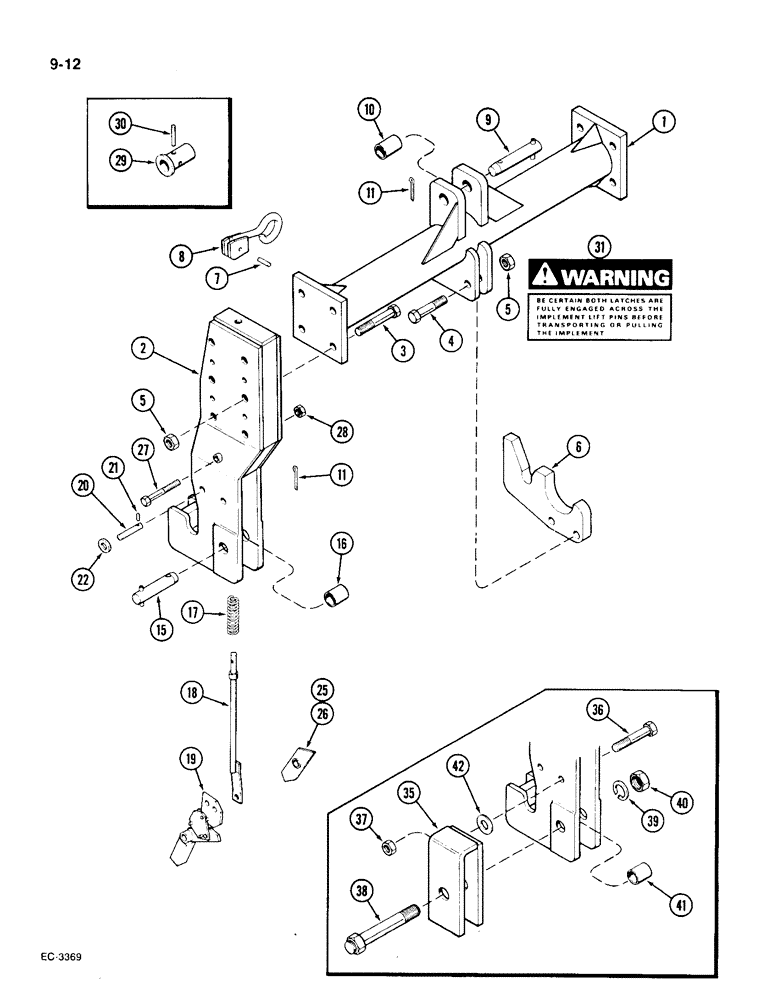

Запчасти Case IH 1896 (9-012) - QUICK HITCH COUPLER, CATEGORY II AND III, WITH OFFSET FRAME (09) - CHASSIS/ATTACHMENTS

A66281

NO LONGER SERVICED

COUPLER ATTACHMENT - quick hitch (Cat. II and III), Includes: Ref. 1 - 42

1шт.

A66282

COUPLER - hitch (Cat. II and III)

1шт.

1

NSS

NOT SOLD SEPARAT

HITCH - upper arm (Order A66282)

1шт.

2

A44594

HITCH ASSY

HITCH - right, lower arm bracket

1шт.

2

A44595

HITCH ASSY

HITCH - left, lower arm bracket

1шт.

3

413-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch, grade 5

8шт.

4

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- 3/4 NC x 3 inch, grade 5

2шт.

5

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, grade 5

10шт.

6

A44600

PLATE

LUG - hitch, upper arm

1шт.

7

138-2067

PIN,3/16" x 1", Coiled

2шт.

8

A44472

HANDLE

- release, hitch

2шт.

9

A45463

PIN

- 5-1/2 inch long

1шт.

10

A44474

SLEEVE

- upper draft arm pin

1шт.

11

T50113

PIN

- clinch, 3/8 x 1-1/2 inch

3шт.

15

A45462

PIN

- 4-3/4 inch long

2шт.

16

A43542

SLEEVE

- coupler arm (For category II tractors)

2шт.

17

A44476

VALVE SPRING

SPRING - release rod

2шт.

18

A44598

ROD

- tripping device (Used with handles, Serial Range: facing-rear)

2шт.

18

A45086

ROD

- tripping device (Used with handles facing each other)

2шт.

19

A45020

LEVER

- lock, right hand

1шт.

19

A45019

LEVER

- lock, left hand

1шт.

20

A45459

PIN

- 2-1/2 inch long

2шт.

21

138-2055

PIN,3/16" x 1 1/2", Coiled

2шт.

22

195-41

WASHER,5/8"

- flat, 21/32 x 1-5/16 x 1/8 inch

2шт.

25

A44470

LEVER

- right, lower trip ratchet

1шт.

26

A44471

LEVER

- left, lower trip ratchet

1шт.

27

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch, grade 5

2шт.

28

131-165

NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

29

T32995

ADAPTER

- hitch coupler

2шт.

30

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

Pin, 7/16" x 1 1/2", Slotted

2шт.

31

321-3339

DECAL

- warning, implement lift pins

2шт.

A66283

KIT

- hitch adapter (Used with A66281), Includes: Ref. 35 - 42

1шт.

35

A66284

BRACKET

- adapter, hitch, kit

2шт.

36

426-1268

BOLT - hex, 3/4 NC x 4-1/4 inch, grade 8, hitch adapter kit

2шт.

37

131-385

LOCK NUT,3/4"-10, GA

NUT - hex, prevailing torque, 3/4 inch NC, hitch adapter kit

2шт.

38

A66285

BOLT

- adapter attaching, hitch, kit

2шт.

39

192-33

LOCK WASHER,1 1/8"

hitch adapter kit 1 1/8"

2шт.

40

425-1118

NUT,1 1/8"-12, G5

- hex, 1-1/8 inch Nf, hitch adapter kit

2шт.

41

A43542

SLEEVE

- coupler arm, hitch adapter kit

2шт.

42

195-109

WASHER,3/4"

- flat, 13/16 x 2 x 1/8 inch, hitch adapter kit

2шт.
