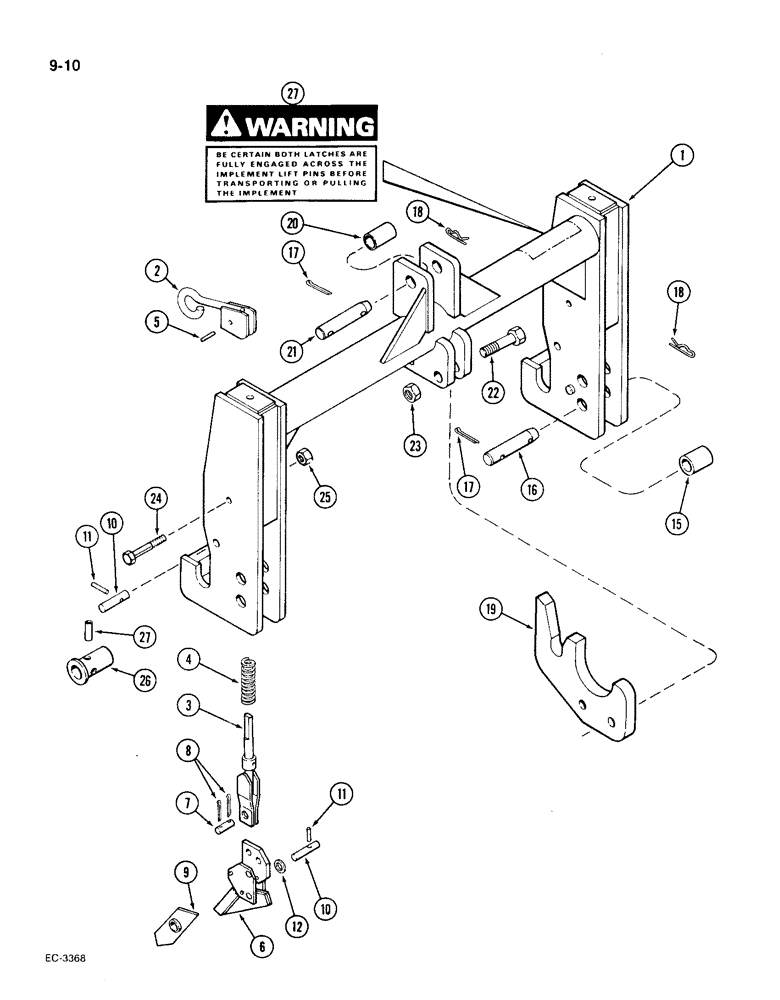

Запчасти Case IH 1896 (9-010) - QUICK HITCH COUPLER,CATEGORY II, WITH STRAIGHT FRAME (09) - CHASSIS/ATTACHMENTS

A65707

COUPLER ATTACHMENT - quick hitch (Cat. II), Includes: Ref. 1 - 28

1шт.

A65708

COUPLER - hitch (Cat. II), Includes: Ref. 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - welded (Order A65708)

1шт.

2

A45456

HANDLE

- hitch release

2шт.

3

A45018

ROD

- handle to lock lever and ratchet

2шт.

4

A45461

SPRING

- release rod

2шт.

5

135-75

GROOVED PIN,1/4" x 1", Type A

PIN - roll, 1/4 x 1 inch

2шт.

6

A45454

LEVER

- lock, right

1шт.

6

A45457

LEVER

- lock, left

1шт.

7

A45460

PIN

- 1-3/8 inch long

2шт.

8

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

9

A44470

LEVER

- lower trip ratchet, right

1шт.

9

A44471

LEVER

- lower trip ratchet, left

1шт.

10

A45459

PIN

- 2-1/2 inch long

2шт.

11

135-56

GROOVED PIN,3/16" x 1 1/2", Type A

PIN - roll, 3/16 x 1-1/2 inch

2шт.

12

195-41

WASHER,5/8"

- flat, 21/32 x 1-5/16 x 1/8 inch

2шт.

15

A43542

SLEEVE

- hitch pin adapter

2шт.

16

A43540

AXLE PIN

PIN - draft arm, lower

2шт.

17

132-202

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

3шт.

18

T50113

PIN

- clinch, 3/8 x 1-1/2 inch

3шт.

19

A44475

LUG

- attaching, upper hitch

1шт.

20

A44474

SLEEVE

- upper draft arm pin

1шт.

21

A43541

PIN

- upper draft arm

1шт.

22

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- 3/4 NC x 3 inch, grade 5

2шт.

23

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, grade 5

2шт.

24

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, grade 5

2шт.

25

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex top lock, 1/2 inch NC

2шт.

26

T32995

ADAPTER

- hitch coupler

2шт.

27

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

Pin, 7/16" x 1 1/2", Slotted

2шт.

28

321-3339

DECAL

- warning, implement lift pins

2шт.
