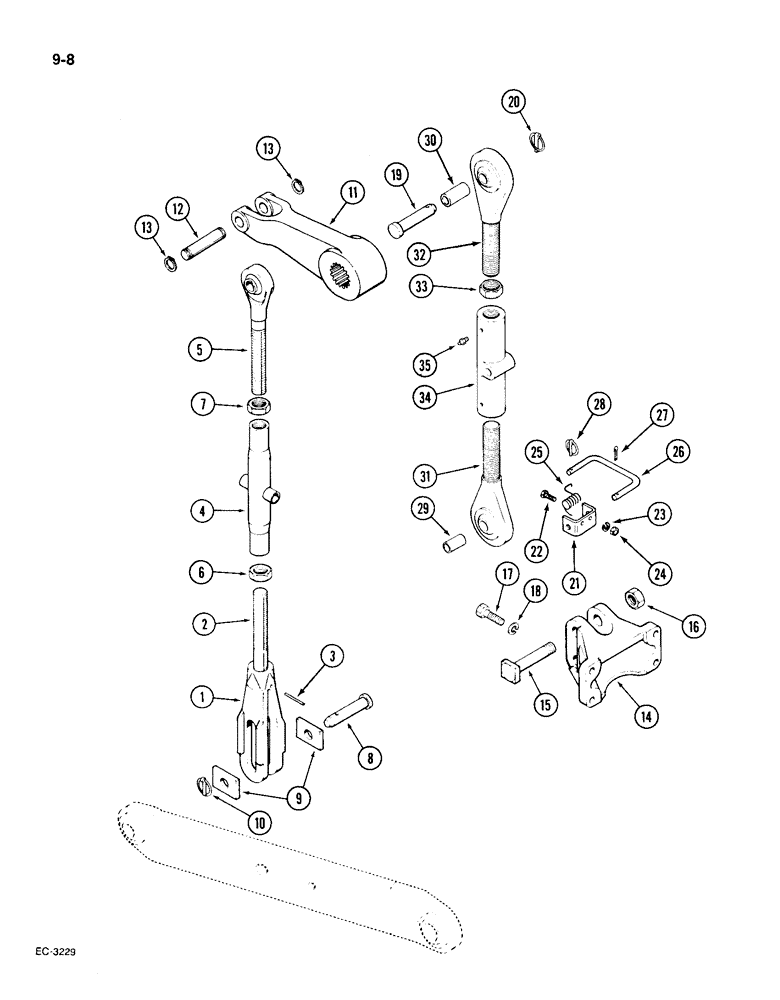

Запчасти Case IH 1896 (9-008) - HITCH LIFT LINKS, P.I.N. 9939634 AND AFTER (09) - CHASSIS/ATTACHMENTS

A166364

LINK

ASSEMBLY - lift, Includes: Ref. 1 - 7 and yoke assembly

2шт.

NSS

NOT SOLD SEPARAT

YOKE ASSEMBLY - lift link, draft arm (Order component parts)

1шт.

1

A137078

YOKE

- draft arm

1шт.

2

A166366

SCREW,Stud, 1 1/4" - 12 x 9.85"

- yoke arm

1шт.

3

138-160

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.

4

A166372

TURNBUCKLE

- adjusting, lift link

1шт.

5

A166367

END

SCREW ASSEMBLY - upper link

1шт.

6

129-352

NUT,Jam, 1 1/4"-7, G5, LH

- hex, 1-1/4 inch NF, left hand thread

1шт.

7

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

- hex, 1-1/4 inch NF

1шт.

8

A67342

PIN

- yoke, lift link

2шт.

9

A67343

PLATE

- stop, lower link pin

2шт.

10

A64204

PIN

- klik

2шт.

11

1971153C1

ARM

- lift, rockshaft to draft arm (Replaces A177253)

2шт.

12

1970827C1

PIN

- link to lift arm (Replaces A177258)

2шт.

13

A34428

SNAP RING,#98, Ext

Ring, Snap, , used with A177258 #98, Ext

4шт.

14

A165800

BRACKET

- mounting, turnbuckle

1шт.

15

A164279

BOLT,1" - 8 x 5", Gr 8

- square head, 1 NC x 5 inch

1шт.

16

131-163

LOCK NUT,1"-8, GA

NUT - hex, 1 inch NC

1шт.

17

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

18

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

19

A33432

PIN

- implement, upper link

1шт.

20

A64204

PIN

- klik

1шт.

21

A163821

BRACKET

- upper link storage

1шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

23

492-11038

LOCK WASHER,3/8"

2шт.

24

425-106

NUT,3/8"-16, Cl 5

2шт.

25

A177792

SPRING

- upper link hook

1шт.

26

A163822

HOOK

- storage, upper link

1шт.

27

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

28

A33497

LINCH PIN,4.76mm OD Pin

PIN - klik

1шт.

29

A33499

ADAPTER

- upper hitch pin (Cat I)

1шт.

30

A33498

ADAPTER

- lower hitch pin (Cat I)

1шт.

A166865

LINK

ASSEMBLY - upper, Includes: Ref. 31 - 35

1шт.

31

A169844

ROD

SCREW ASSEMBLY - turnbuckle, lower

1шт.

32

A166863

ROD

SCREW ASSEMBLY - turnbuckle, upper

1шт.

33

425-1424

JAM NUT,Jam, 1 1/2"-6, G5

- hex, 1-1/2 inch NC, grade 5

1шт.

34

A165965

TURNBUCKLE

- upper link

1шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.
