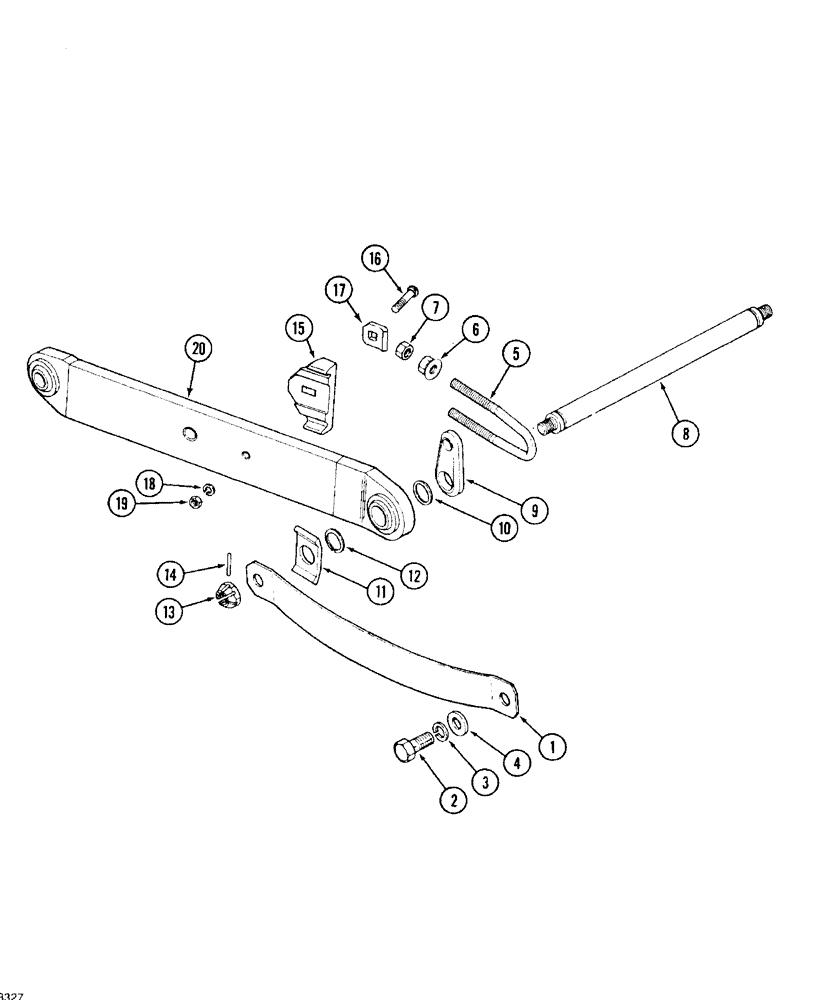

Запчасти Case IH 1896 (9-002) - HITCH SPRINGS, LINKS AND SHAFT, STANDARD LINKS (09) - CHASSIS/ATTACHMENTS

1

A145753

SPRING

- sensing

2шт.

2

13-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

2шт.

3

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

4

195-2100

WASHER,1 1/32" x 2" x .238"

- flat, 1-1/32 x 2 x 1/4 inch

2шт.

5

A162689

BOLT

U-Bolt - 3/4 inch NC

2шт.

6

131-935

FLANGE NUT,Flg, 3/4"-10, G8

- hex flange, 3/4 inch NC

4шт.

7

131-1338

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

4шт.

8

A176923

BEAM

SHAFT - cross, draft arm and sending spring

1шт.

9

A167660

LINK

- support, cross-shaft

2шт.

10

A167661

WASHER

- spacer, draft arm ball

1шт.

11

A167662

PLATE

SPACER - sensing spring rear

2шт.

12

A167663

RING

- retaining, spacer mounting

2шт.

13

A33404

NUT

- retaining, cross-shaft

2шт.

14

138-2014

PIN,3/16" x 1 7/8", Coiled

2шт.

15

A185874

KIT

BLOCK - sway, adjustable (Replaces A162756)

2шт.

16

33-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

BOLT - round head, square neck, 1/2 NC x 1/2 inch, grade 5

2шт.

17

A185815

SQ HOLE WASHER

- swayblock

2шт.

18

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, hardened, 17/32 x 1-1/16 x 1/8 inch

2шт.

19

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, 1/2 inch NC

2шт.

20

A185782

LINK - solid, lower (Replaces A167794)

2шт.
