Запчасти Case IH 1896 (8-84) - HITCH CONTROL VALVE (08) - HYDRAULICS

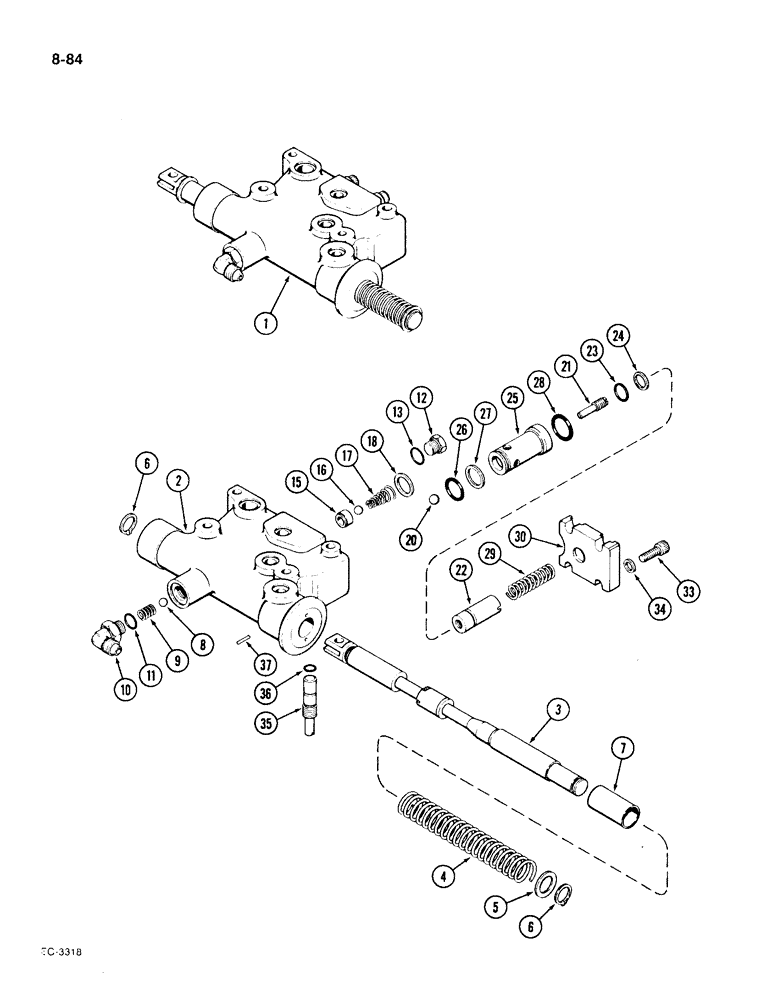

Схема запчастей Case IH 1896 - (8-84) - HITCH CONTROL VALVE (08) - HYDRAULICS
27
29
1
2
24
10
37
22
34
3
16
20
26
7
28
36
5
18
6
21
23
4
17
11
35
12
15
30
25
8
13
33
9
6

Артикул

Название

Примечание

Количество

1

A143713

VALVE

ASSEMBLY - hitch control, Includes: Ref. 2 - 37

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order A143713)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control valve (Order A143713)

1шт.

4

A58366

SPRING

- return

1шт.

5

A58365

WASHER

- spring retainer

1шт.

6

A35094

SNAP RING,#81, Ext

Ring, Snap, #81, Ext

1шт.

7

A160367

BUSHING

SPACER - spool stop

1шт.

8

211-12

BALL,7/16 Dia

- 7/16 inch, chrome alloy steel, grade 200

1шт.

9

A61510

SPRING

- check valve

1шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, 3/8 inch tube, 9/16 inch NF

1шт.

12

9625178

PLUG,9/16" - 18 ORB

3/8 inch tube Hex Soc, 9/16"-18 ORB

1шт.

15

L10120

SEAT

- ball, load check

1шт.

16

211-12

BALL,7/16 Dia

- 7/16 inch, chrome alloy steel, grade 200

1шт.

17

A35099

SPRING

- load check

1шт.

18

A35547

RING

- rectangular, sealing

1шт.

20

211-13

BALL,1/2" Dia

chrome alloy steel, grade 200 1/2" Dia

1шт.

21

A149766

ADJUSTMENT SCREW,3/8" - 24 x 0.75"

SCREW - adjusting

1шт.

22

A149767

PISTON

- poppet, lowering

1шт.

23

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- 5/8 ID x 1/16 inch

1шт.

24

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- backup

1шт.

25

A149768

SLEEVE

- poppet, lowering

1шт.

26

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

- 13/16 x 15/16 x 1/16 inch

1шт.

27

A149775

RING

WASHER - backup

1шт.

28

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- 7/8 x 1-1/16 x 3/32 inch

1шт.

29

A149794

SPRING

- poppet

1шт.

30

A162799

COVER

- control valve

1шт.

33

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

BOLT - Ferry head, 5/16 NC x 1 inch, grade 8

4шт.

34

A148875

WASHER,8.2mm ID x 12.7mm OD x 0.86mm Thk

- cover bolt

4шт.

35

A161270

SCREW,5/8" - 11 x 2 3/16"

- throttle

1шт.

36

A40109

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

- 3/8 ID x 1/16 inch

1шт.

37

138-39

LOCK PIN,3/32" x 5/8", Slotted

PIN, 3/32" x 5/8", Slotted

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

Выбрано товаров: 33
