Запчасти Case IH 1896 (8-78) - DRAFT CONTROL SENSING LINKAGE (08) - HYDRAULICS

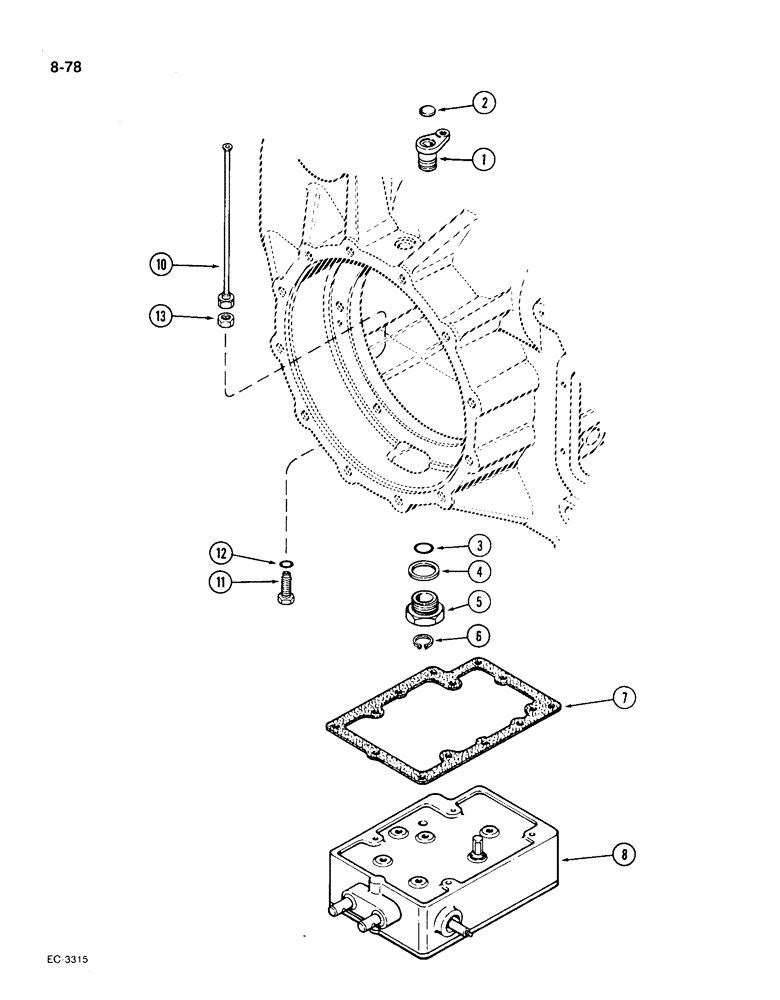

Схема запчастей Case IH 1896 - (8-78) - DRAFT CONTROL SENSING LINKAGE (08) - HYDRAULICS
11
7
10
12
6
4
1
2
13
5
8
3

Артикул

Название

Примечание

Количество

1

A162080

LEVER

- follow-up, draft sensing

1шт.

2

41-12

PLUG,Exp, 3/4"

- expansion, 3/4 inch, follow-up lever

1шт.

3

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- plug

1шт.

4

A63447

GASKET

- plug

1шт.

5

A64429

BUSHING

- follow-up lever (In transmission case)

1шт.

6

B18208

SNAP RING,#100, Ext

1шт.

7

A185805

GASKET

- housing cover

1шт.

8

A147792

HOUSING

- linkage, draft control (See Figure 8-80)

1шт.

10

A141014

TUBE

- breather

1шт.

11

A141002

FITTING

- tube, transmission case breather

1шт.

13

218-1276

LOCK NUT,Blkhd, 1/2"-20

NUT - hex, 1/2 inch NF

1шт.

12

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 inch OD tube

1шт.

Выбрано товаров: 12
