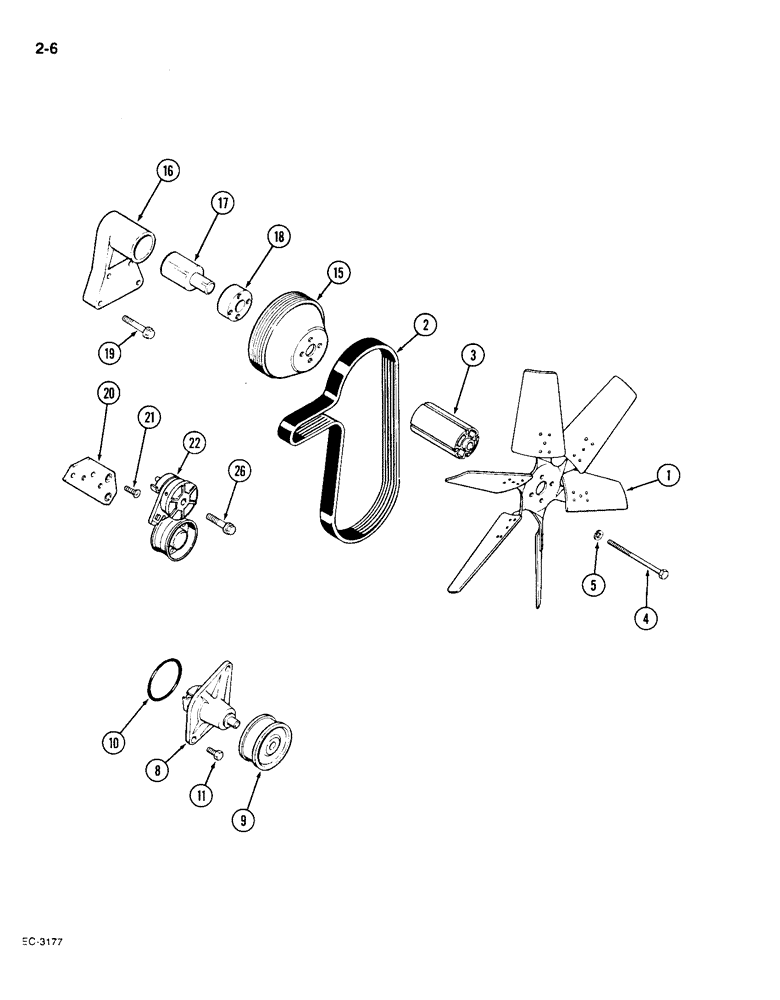

Запчасти Case IH 1896 (2-06) - WATER PUMP SYSTEM, 6T-590 ENGINE (02) - ENGINE

1

A172812

FAN

- engine

1шт.

2

J911570

V-BELT,27.92mm W x 1582mm L, 8 Ribs

Fan, Replaces J902309 3.56 mm W x 1582.00 mm L, 8 Ribs

1шт.

3

A172587

SPACER

- fan

1шт.

4

827-8150

BOLT,Hex, M8 x 1.25 x 150mm, Cl 10.9

- hex, 8 mm x 150 mm, class 10.9

4шт.

5

H426775

WASHER

- flat, hardened

4шт.

AR77471

REMAN-WATER PUMP

PUMP - water, remanufactured

1шт.

J286278R

REMAN-WATER PUMP

1896 & S/N 17895000 Thru 002 & Up

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77471

CORE-WATER PUMP

RETURN NUMBER - pump (Use this part number to return pump core for credit

1шт.

A77471

PUMP, WATER

PUMP KIT - water, Includes: Ref. 8 - 10

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

1896 S/N 17895000 Thru 002 & Up, Replaces P/N A77471 & AR77471

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

9

NSS

NOT SOLD SEPARAT

PULLEY - pump (Order A77471)

1шт.

10

22290R1

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

- sealing

1шт.

11

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

15

J914463

PULLEY,165.25mm OD

- fan (Replaces J902710)

1шт.

16

J911922

SUPPORT ASSY.

BRACKET ASSEMBLY - fan pulley, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

SHAFT - bearing (Order J909890)

1шт.

18

NSS

NOT SOLD SEPARAT

HUB - pulley mounting (Order J909890)

1шт.

19

J900678

BOLT,Hex Flg, M8 x 40mm, Cl 8.8

- hex flange, 8 mm x 40 mm

4шт.

20

J904548

BRACKET

- belt tension

1шт.

21

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head slotted, 8 x 25 mm

2шт.

22

J914086

BELT TENSIONER

TENSIONER ASSEMBLY - belt (Replaces J911315)

1шт.

26

J904446

FLANGE BOLT,Hex, M10 x 70mm, Cl 10.9

BOLT - hex flange, 10 mm x 70 mm (Use with J914086)

1шт.

26

J905426

BOLT,Hex, M10 x 1.5 x 61.86mm

- hex flange, 10 mm x 62 mm (Use with J911315)

1шт.
