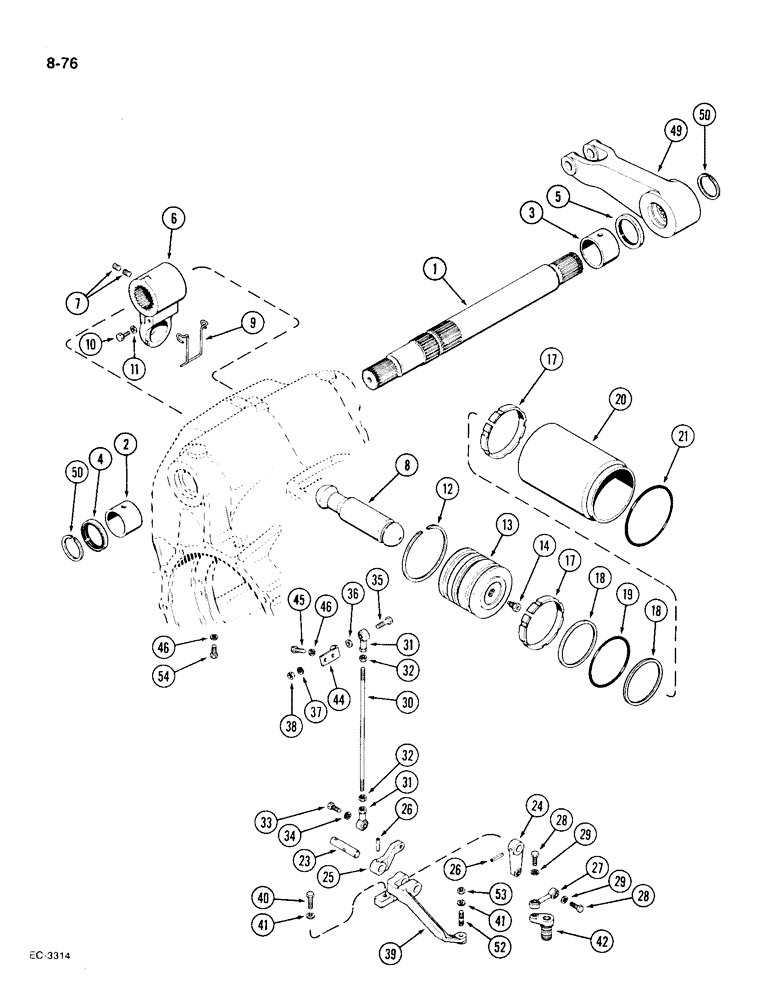

Запчасти Case IH 1896 (8-76) - HITCH ROCKSHAFT AND PISTON (08) - HYDRAULICS

1

A163097

ROCKSHAFT

- lift arm

1шт.

2

A141198

BUSHING,60.47mm ID x 65.24mm OD x 50.93mm L

- right hand

1шт.

3

A141199

BUSHING,70mm ID x 74.8mm OD x 51mm L

- left hand

1шт.

4

A32304

OIL SEAL,60.33mm ID x 85.8mm OD x 11.91mm Thk

- oil, right hand

1шт.

5

A32305

OIL SEAL,69.85mm ID x 92.2mm OD x 11.91mm Thk

- oil, left hand

1шт.

6

A181962

ARM

-, Serial Range: rockshaft-piston

1шт.

7

84-1508

SET SCREW,Hex Soc, 1/2"-20 x 1/2"

SCREW - set, hex socket, 1/2 NF x 1/2 inch

2шт.

8

A181963

ROD

- piston

1шт.

9

A60497

SPRING

- rockshaft piston rod

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

11

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 13/32 x 1-1/16 x 3/16 inch

2шт.

12

A32292

CIRCLIP

RING - retaining, cylinder liner

1шт.

13

A164774

PISTON

- rockshaft

1шт.

14

A164785

VALVE

- safety, thermal

1шт.

17

A32219

RING,126.62mm ID x 133.35mm OD x 15.88mm Thk

- wear, piston

2шт.

18

A32293

RING,121.94mm ID x 133.93mm OD x 2.97mm Thk

- backup, piston seal

2шт.

19

A32294

O-RING,4.725" ID x 5.275" OD x 0.275"

- 4-3/4 inch ID, piston seal

1шт.

20

A147755

SLEEVE

LINER - cylinder

1шт.

21

A32295

O-RING,5.725" ID x 6.275" OD x 0.275"

- 5-3/4 inch ID, liner seal

1шт.

23

A162698

SHAFT

- sensing lever

1шт.

24

A162078

LEVER

- sensing, inner

1шт.

25

A162077

LEVER

- sensing, outer

1шт.

26

138-2040

PIN,1/4" x 1 1/2", Coiled

2шт.

27

A162073

LINK

- follow-up lever

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

29

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

30

A162072

ROD

- adjusting, lever

1шт.

31

A32398

BALL JOINT

LINK - eye, female

2шт.

32

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF, grade 5

2шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

34

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

35

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, grade 5

1шт.

36

A32395

WASHER

SPACER - rod end

1шт.

37

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

38

425-106

NUT,3/8"-16, Cl 5

1шт.

39

A164777

SUPPORT

- lever

1шт.

40

113-2263

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/4", G5

BOLT - hex, 3/8 NC x 1-1/4 inch, grade 5

1шт.

41

492-11038

LOCK WASHER,3/8"

2шт.

42

A162080

LEVER

- follow-up, draft sensing

1шт.

44

A163052

BRACKET

- adjusting rod lever

1шт.

45

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

46

492-11038

LOCK WASHER,3/8"

3шт.

49

1971153C1

ARM

- lift, rockshaft to draft arm (See page 9-??)

2шт.

50

A32300

SNAP RING,#225, 2.174", Ext

RING - retaining, lift arm

2шт.

52

A29717

STUD

- support

1шт.

53

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

54

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.
