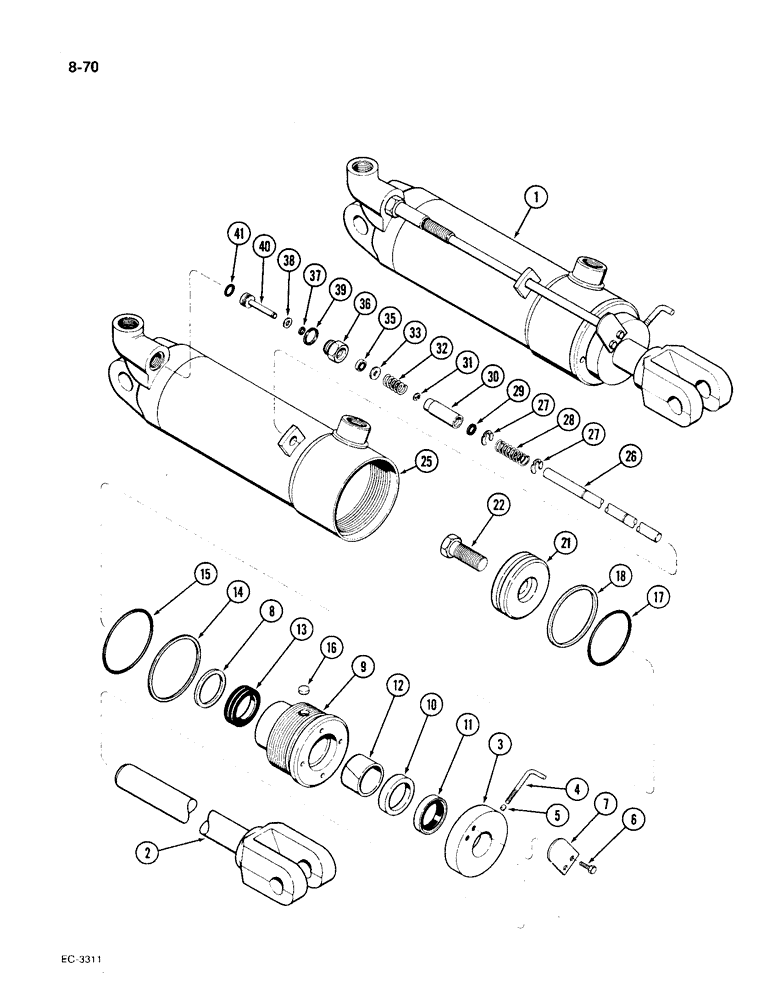

Запчасти Case IH 1896 (8-70) - REMOTE HYDRAULIC CYLINDER, 4 INCH BORE X 8 INCH STROKE (08) - HYDRAULICS

1

G33769

CYLINDER

ASSEMBLY - hydraulic, Includes: Ref. 2 - 41

1шт.

2

G33772

ROD

- piston

1шт.

3

G34980

COLLAR

- stop

1шт.

4

G34977

BOLT

- hook

1шт.

5

G34979

PLUG

- locking

1шт.

6

276-20712

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

SCREW - tapping, hex, 1/4 NC x 1/2 inch

2шт.

7

G32075

PLATE

- stop

1шт.

G104933

CYLINDER

GLAND ASSEMBLY - packing, Includes: Ref. 8 - 16

1шт.

8

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- gland, buffer

1шт.

Part of hydraulic cylinder service kit PN G109478.

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND - cylinder (Order G104933)

1шт.

10

G34299

RING

- retaining, center bearing

1шт.

11

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of hydraulic cylinder service kit PN G109478.

1шт.

12

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Center

1шт.

Part of hydraulic cylinder service kit PN G109478.

1шт.

13

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- piston rod

1шт.

Part of hydraulic cylinder service kit PN G109478.

1шт.

14

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of hydraulic cylinder service kit PN G109478.

1шт.

15

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of hydraulic cylinder service kit PN G109478.

1шт.

16

G102569

PLUG

- nylon, locking, gland

1шт.

17

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- piston

1шт.

Part of hydraulic cylinder service kit PN G109478.

1шт.

18

G31928

RING

- sealing, piston

1шт.

Part of hydraulic cylinder service kit PN G109478.

1шт.

21

G104114

PISTON

- cylinder

1шт.

22

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

25

G31942

HYD TUBE,15.15" L

TUBE - cylinder

1шт.

26

G32428

ROD

- push

1шт.

27

G32429

RING

- retaining

2шт.

28

G31934

SPRING

- return, rod

1шт.

29

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- sleeve

1шт.

30

G32427

SLEEVE

- protector

1шт.

31

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, #X18, .122" Dia, E-Type

1шт.

32

G31980

SPRING

- return, plunger

1шт.

33

G31929

WASHER

- backing, spring

1шт.

35

G31932

WIPER SEAL

SEAL - wiper

1шт.

Part of hydraulic cylinder service kit PN G109478.

1шт.

36

G31933

GLAND

ASSEMBLY - valve, Includes: Ref. 37 and 38

1шт.

37

G31935

O-RING,0.174" ID x 0.377" OD

- plunger

1шт.

Part of hydraulic cylinder service kit PN G109478.

1шт.

38

G31948

WASHER

- plunger

1шт.

39

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

Part of hydraulic cylinder service kit PN G109478.

1шт.

40

G31943

PLUNGER

- valve

1шт.

41

G32070

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

- plunger

1шт.

Part of hydraulic cylinder service kit PN G109478.

1шт.

G109478

GASKET KIT

KIT - service, hydraulic cylinder, Includes: Ref. 8, 11 - 15, 17, 18, 29, 35, 37, 39 and 41

1шт.
