Запчасти Case IH 1896 (8-68) - REMOTE QUICK DISCONECT COUPLINGS (08) - HYDRAULICS

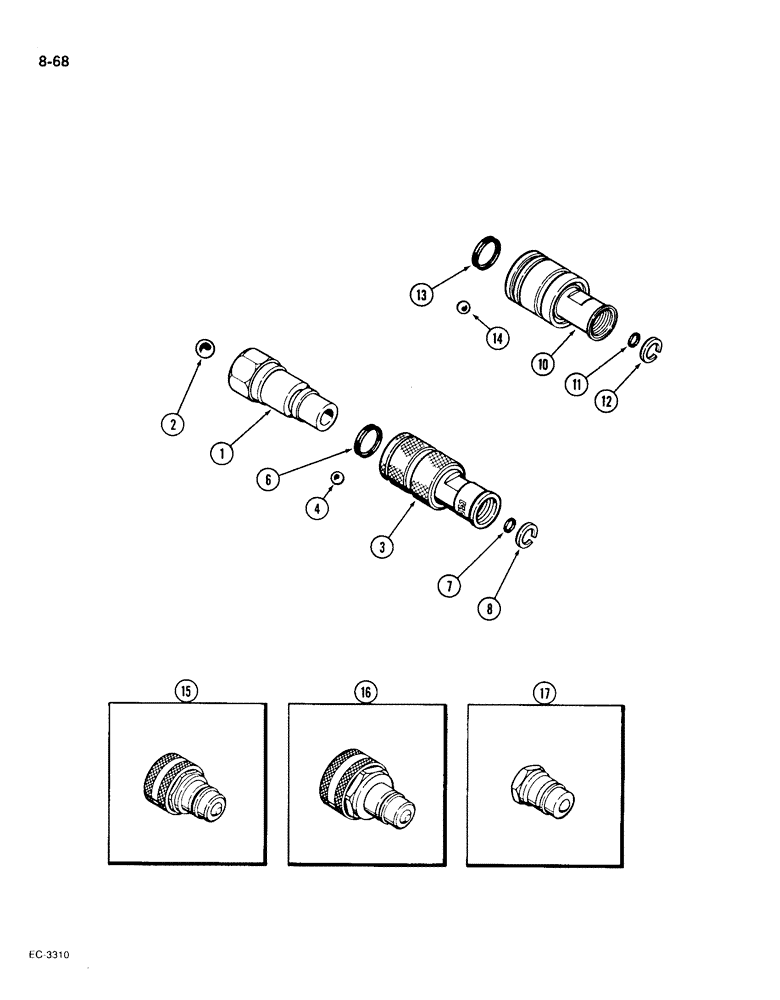

Схема запчастей Case IH 1896 - (8-68) - REMOTE QUICK DISCONECT COUPLINGS (08) - HYDRAULICS
6
16
12
11
7
15
14
1
17
13
2
3
4
10
8

Артикул

Название

Примечание

Количество

1

A147889

COUPLING, BREAK AWAY

COUPLING - hydraulic, male, Includes: Ref. 2

1шт.

2

211-316

BALL,17/32" Dia

- 17/32 inch, carbon steel, grade 100

1шт.

3

NSS

NOT SOLD SEPARAT

COUPLING - quick disconnect, female half (Order A177478), Includes: Ref. 4 - 8

1шт.

4

211-5

BALL,3/16" Dia

- 3/16 inch, grade 200, chrome alloy steel

1шт.

A47220

GASKET KIT

KIT - service, quick disconnect couplings

1шт.

6

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- coupling body

1шт.

7

A47222

SEAL

- valve coupling

1шт.

8

A45603

RING, LOCKING

RING - lock, male coupling

1шт.

10

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway, Includes: Ref. 11 - 14

1шт.

A47220

GASKET KIT

KIT - service, quick disconnect couplings

1шт.

11

A47222

SEAL

- valve coupling

1шт.

12

A45603

RING, LOCKING

RING - lock, male coupling

1шт.

13

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- coupling body

1шт.

14

211-355

BALL

- 3/16 inch, carbon steel, grade 200

1шт.

15

A160879

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (John Deere male half to J I Case A147888 female half), hydraulic coupling

1шт.

16

A160880

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (International Harvester male half to J I Case A147888 female half), hydraulic coupling

1шт.

17

A160937

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male half (Same as A147889 except with 1/2-14 inch internal thread), hydraulic, adapters

1шт.

Выбрано товаров: 17
