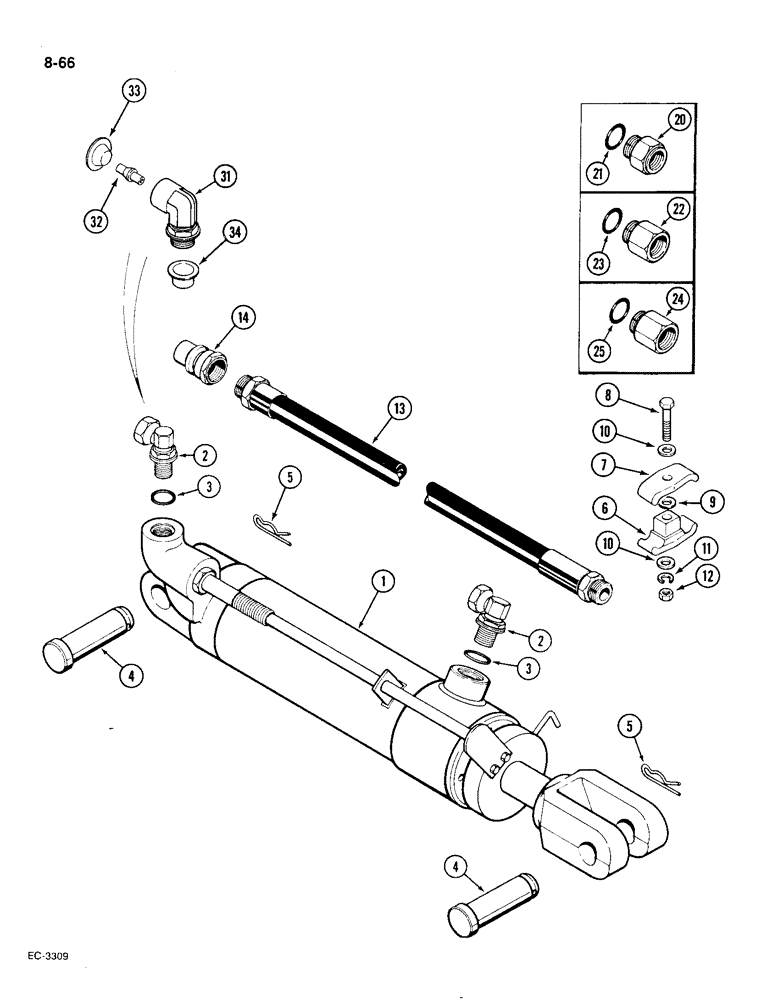

Запчасти Case IH 1896 (8-66) - REMOTE CYLINDER, HOSES AND COUPLINGS (08) - HYDRAULICS

A149161

CYLINDER

- portable hydraulic, Includes: Ref. 1 - 14

1шт.

1

G33769

CYLINDER

- hydraulic (See Figure 8-70)

1шт.

A67447

KIT - hydraulic hoses, Includes: Ref. 2 - 14

1шт.

2

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

- 90 degree, adjustable, 7/8 inch NF x 1/2 inch NP

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, class 6

1шт.

4

A27347

PIN

- retaining, cylinder

2шт.

5

A29054

HAIR PIN COTTER

- hair type, cylinder pin retaining

2шт.

6

D124301

CLAMP,3/4" ID

- tube, 3/4 inch

1шт.

7

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

- tube, cap

1шт.

8

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch, grade 5

1шт.

9

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

1шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

A135006

HYDRAULIC HOSE,0.50" ID x 106.00", SAE 100R1 per SAE 100 R1

0.50" ID x 106.00", SAE 100R1 per SAE 100 R1

1шт.

13

A135007

HYDRAULIC HOSE,0.50" ID x 118.00", SAE 100R1 per SAE 100 R1

0.50" ID x 118.00", SAE 100R1 per SAE 100 R1

1шт.

14

A147889

COUPLING, BREAK AWAY

COUPLING - hydraulic, male (See page 8-??)

2шт.

A135687

ADAPTER

KIT - adapter, coupling (J I Case Implement hoses), hydraulic, Includes: Ref. 20 and 21

1шт.

20

A135005

ADAPTER - 7/8 inch NF male x 7/8-18 inch female, hydraulic hose adapters

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, class 6, hydraulic hose adapters

1шт.

A135688

ADAPTER

KIT - adapter, coupling (John Deere Implement hoses), hydraulic, Includes: Ref. 22 and 23

1шт.

22

A135673

ADAPTER - 7/8 inch NF male x 3/4 inch NF female, hydraulic hose

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, class 6, hydraulic hose adapters

1шт.

24

218-5095

ADAPTER,7/8" - 14 ORB x 1/2" NPT

- 7/8 inch NF male x 1/2 inch NPTF female (International Harvester Implement hoses), hydraulic, Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, class 6, hydraulic hose adapters

1шт.

A65953

HYDRAULIC VALVE

KIT - regulator, portable cylinder, return flow, Includes: Ref. 31 - 34

1шт.

A65954

REGULATOR

ASSEMBLY - oil return, cylinder, flow

1шт.

31

A65955

ELBOW,90 Degree, 7/8"-14" O-Ring x 1/2" NPT Fem

- 90 degree, regulator, cylinder return flow

1шт.

32

A57369

SPOOL

- regulator, cylinder return flow

1шт.

33

353-17

PLUG,Cap, .911" OD

CAPLUG - protective closure, No. 11, cylinder return flow regulator

1шт.

34

353-23

CAP,Cap, 1.355" OD

LUG - protective closure, No. 15, cylinder return flow regulator

1шт.
