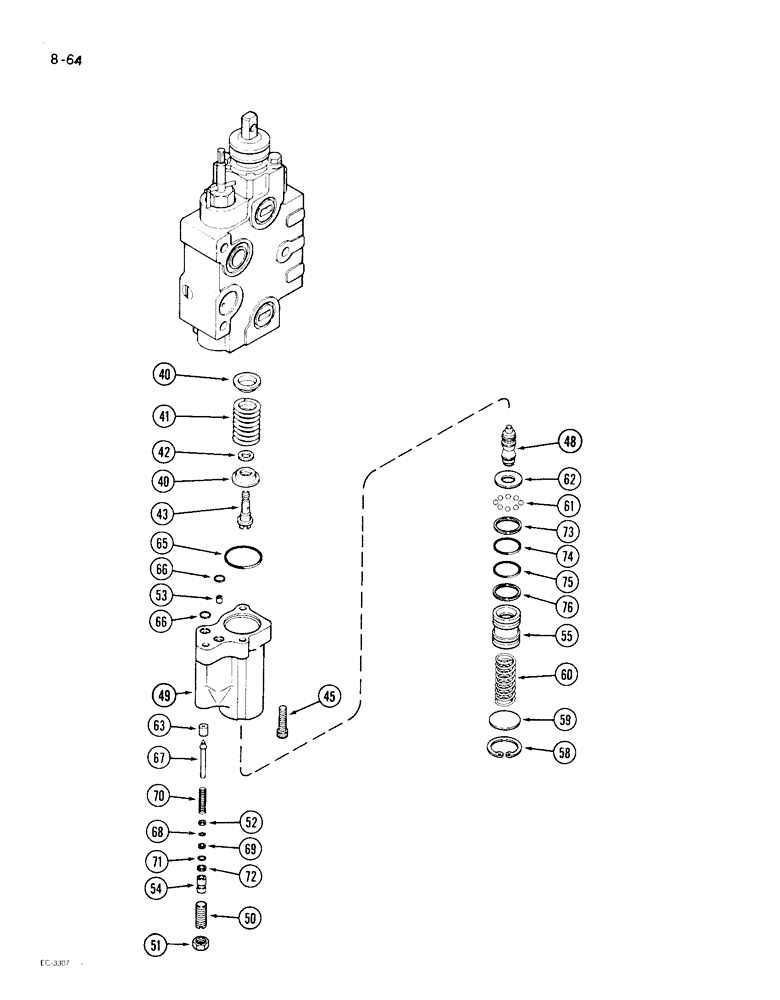

Запчасти Case IH 1896 (8-64) - REMOTE VALVE SECTION, THIRD CIRCUIT, WITHOUT LOAD CHECK (08) - HYDRAULICS

A48945

HOUSING

SECTION - valve, without load check(Continued from Figure 8-62), Includes: Ref. 40 - 76 and 2 - 36 on Fig. 8-62

1шт.

40

A47197

RETAINER

- spring

2шт.

41

A47177

SPRING

- centering

1шт.

42

A48930

SPACER

- detent

1шт.

43

A46923

COUPLING, BREAK AWAY

COUPLER - detent pivot

1шт.

45

61-32516

HEX SOC SCREW,1/4"-20 x 1"

SCREW - cap, hex socket, 1/4 NC x 1 inch

3шт.

A48940

KIT

- service, detent, Includes: Ref. 48 - 76

1шт.

48

NSS

NOT SOLD SEPARAT

SHAFT - detent

1шт.

49

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - detent, Includes: Ref. 50 - 76

1шт.

50

A52437

SET SCREW,3/8" - 24 x 1", Gr 7

- adjusting

1шт.

51

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF, grade 5

1шт.

52

A48935

WASHER

- valve

1шт.

53

A47658

PLUG

- orifice

1шт.

54

A48936

GOVERNOR

PISTON - regulator

1шт.

55

A48932

PISTON

- kickout

1шт.

58

A30975

SNAP RING,1.188", Int, #118

1шт.

59

A48933

RING

RETAINER - piston

1шт.

60

A48934

SPRING

- detent

1шт.

61

211-6

BALL,7/32" Dia

grade 200, chrome steel 7/32" Dia

8шт.

62

A48931

WASHER

- guide

1шт.

63

A46924

SEAT

- pilot float assembly

1шт.

A48942

KIT

- service, detent seals, Includes: Ref. 65 - 76

1шт.

65

A59066

O-RING,1.239" ID x 1.379" OD

- 1-1/4 inch ID

1шт.

66

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk (1/4 x 3/8 x 1/16")

2шт.

67

A48958

VALVE POPPET

POPPET - detent

1шт.

68

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

- 1/8 x 1/4 inch, class 6

1шт.

69

A52378

RING,Split, 3.56mm ID x 6.3mm OD x 1.32mm Thk

- backup

1шт.

70

A48961

RETAINER

SPRING - relief

1шт.

71

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- oil tube

1шт.

72

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

- backup

1шт.

73

L35295

SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk

RING - backup

1шт.

74

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

75

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk

1шт.

76

A52208

SEAL,25.98mm ID x 28.73mm OD x 1.32mm Thk

RING - backup

1шт.
