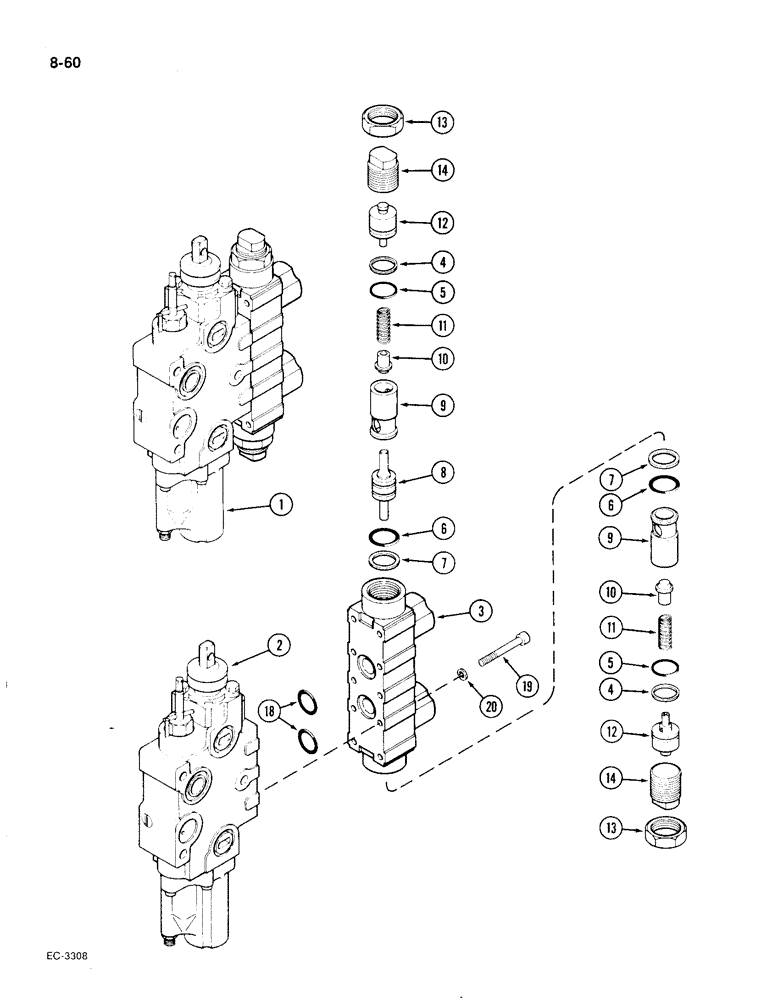

Запчасти Case IH 1896 (8-60) - REMOTE VALVE SECTION, THIRD CIRCUIT, WITH LOAD CHECK (08) - HYDRAULICS

1

A169456

VALVE

SECTION - valve, with load check, Includes: Ref. 3 - 20

1шт.

2

A48945

HOUSING

SECTION - valve (See Figure 8-62), Includes: Ref. 3 - 20

1шт.

A48946

VALVE

ASSEMBLY - load check

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - load check valve (Order A48946)

1шт.

A48943

KIT

- service, load check seals, Includes: Ref. 4 - 7

1шт.

4

N7509

RING

- backup

2шт.

5

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

- retainer

2шт.

6

384376R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

- 15/16 x 1-1/16 inch, class 6

2шт.

7

R31052

O-RING,15/16" ID x 1-1/16" OD x 3/64"

RING - backup

2шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - load check (Order A48946)

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - load check (Order A48946)

2шт.

10

NSS

NOT SOLD SEPARAT

POPPET - load check (Order A48946)

2шт.

11

NSS

NOT SOLD SEPARAT

SPRING - poppet (Order A48946)

2шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - spring (Order A48946)

2шт.

13

NSS

NOT SOLD SEPARAT

NUT - lock, 1-1/16 inch (Order A48946)

2шт.

14

NSS

NOT SOLD SEPARAT

PLUG - load check (Order A48946)

2шт.

NLS

NO LONGER SERVICED

- service, load check cover, Includes: Ref. 18 - 20

1шт.

18

A43626

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- load check body

2шт.

19

61-32532

HEX SOC SCREW,1/4"-20 x 2"

SCREW - cap, hex socket, 1/4 NC x 2 inch

6шт.

20

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.
