Запчасти Case IH 1896 (8-52) - REMOTE VALVE SECTIONS, FIRST AND SECOND CIRCUITS (08) - HYDRAULICS

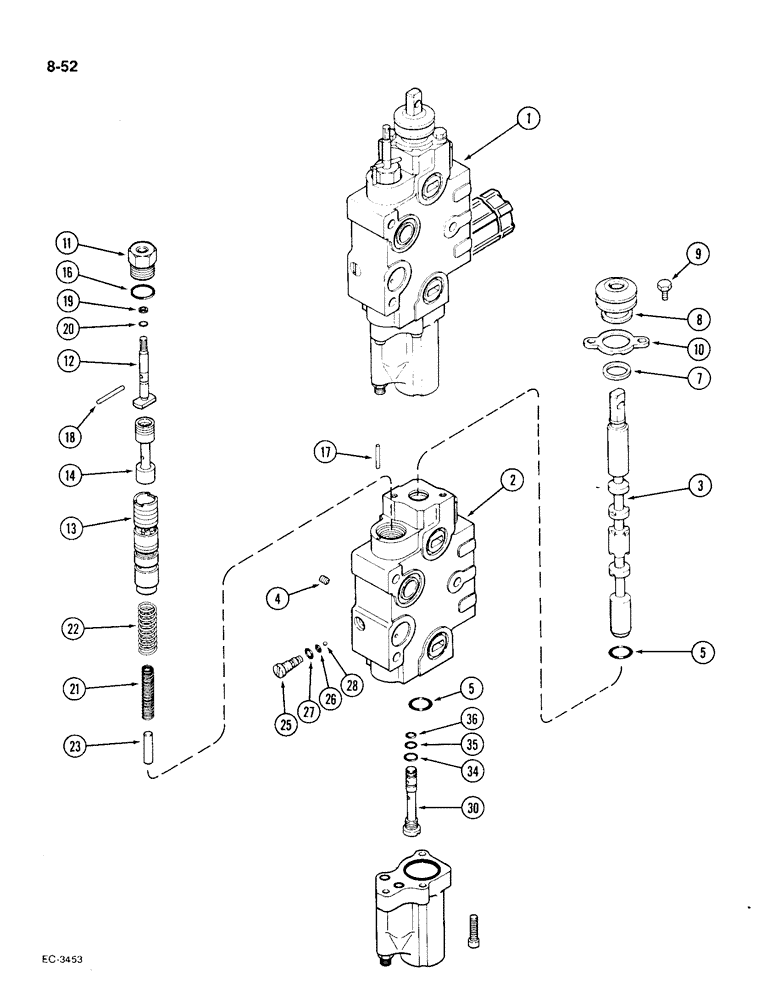

Схема запчастей Case IH 1896 - (8-52) - REMOTE VALVE SECTIONS, FIRST AND SECOND CIRCUITS (08) - HYDRAULICS
26
8
14
11
7
12
34
10
5
1
25
27
35
16
4
9
22
5
28
13
30
21
20
23
36
2
17
19
3
18

Артикул

Название

Примечание

Количество

1

A52404

VALVE

SECTION - valve, priority float, with lockout, Includes: Ref. 2 - 36 and 40 - 77 on Fig. 8-54

1шт.

1

A185006

VALVE BODY

SECTION - valve, float, with lockout, Includes: Ref. 2 - 36 and 40 -77 on Fig. 8-54

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order A52404 or A185006 as required)

1шт.

3

1986844C1

SPOOL

- valve (Order A52404 or A185006 as required)

1шт.

4

A47105

PLUG

- expansion

1шт.

5

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- 5/16 inch ID

2шт.

A48938

KIT

- service, body and spool filter, Includes: Ref. 7 - 10

1шт.

7

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

FILTER - spool

2шт.

8

A47188

COVER

BOOT - dust

1шт.

9

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

- hex, 1/4 NC x 1/2 inch

2шт.

10

A47196

RETAINER

- dust guard

1шт.

11

A48925

PLUG

- flow control

1шт.

12

A48929

SHAFT

- adjusting

1шт.

13

A52412

TUBE

- flow control

1шт.

14

A52411

PISTON

SPOOL - flow control

1шт.

A48941

SEAL

KIT - service, flow control seals, Includes: Ref. 16 - 22

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, class 6

1шт.

17

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

18

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

19

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

- backup

1шт.

20

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- shaft

1шт.

21

A48960

SPRING

- inner, flow control

1шт.

22

A48959

SPRING

- outer, flow control

1шт.

23

A52410

PIN

- stop

1шт.

A47210

PLUG

ASSEMBLY - shuttle, secondary, Includes: Ref. 25 - 27 and service kit, P/N A48939

1шт.

25

A47204

PLUG

BODY - shuttle

1шт.

A48939

KIT

- service, shuttle seals

1шт.

26

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

- 3/16 x 5/16 inch, class 6

1шт.

27

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 inch O.D. tube

1шт.

28

211-255

BALL,3/16 Dia

grade 50, chrome steel 3/16 Dia

1шт.

30

A47209

SPOOL

SHUTTLE ASSEMBLY - primary

1шт.

N6632

SEAL KIT

- service, shuttle seals, Includes: Ref. 34 - 36

1шт.

34

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

35

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk

1шт.

36

23524R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

- 7/32 x 11/32 inch, class 6 Continued on Figure 8-54

1шт.
