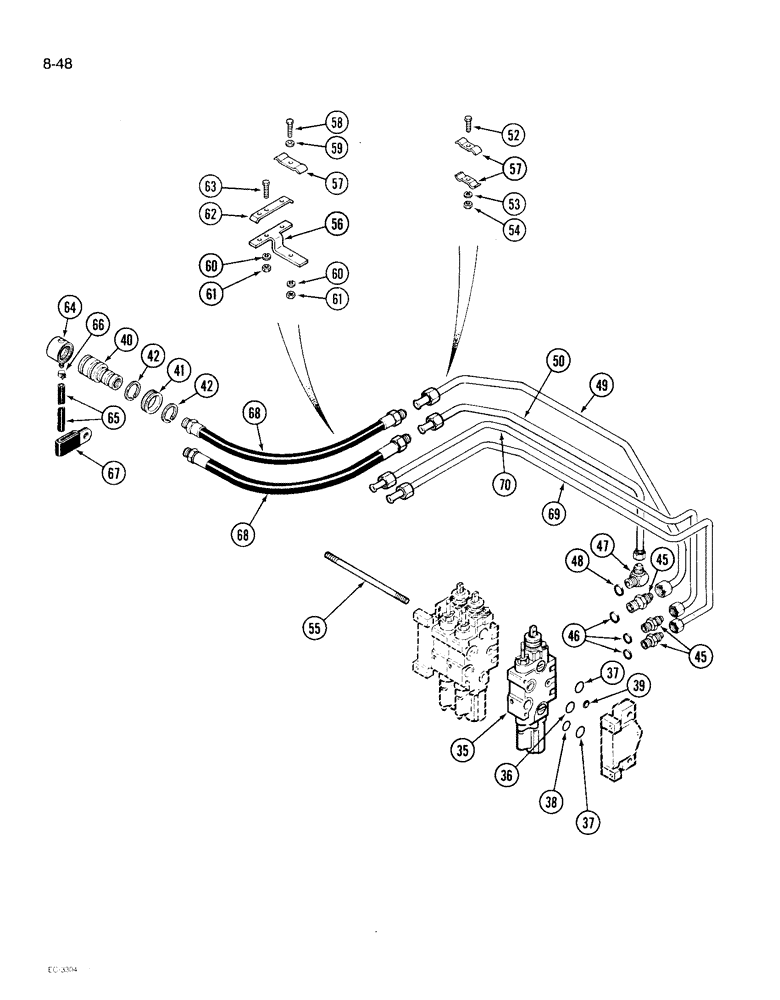

Запчасти Case IH 1896 (8-48) - REMOTE ADD-ON ATTACHMENT, NO. THREE OR NO. FOUR CIRCUIT, WITHOUT LOAD CHECK (08) - HYDRAULICS

A181930

ATTACHMENT

KIT - remote valve 'add-on' attachment, without load check (Continued from Figure 8-46), Includes: Ref. 35 - 70 and 1 - 31 on fig. 8-46

1шт.

35

A169029

VALVE

SECTION - valve, remote, without load check (See Figure 8-56) (Use for 3rd or 4th circuit installation)

1шт.

A47576

KIT

- seals and shims, Includes: Ref. 36 - 39

1шт.

36

S6578

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- 1 inch ID

1шт.

37

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 inch ID

2шт.

38

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 inch ID

1шт.

39

D77566

SHIM,.0030" Thk

Control valve sections .0030" Thk

3шт.

40

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway (See Figure 8-68)

2шт.

41

A139805

RETAINER

- coupling

2шт.

42

A137976

SNAP RING,#150, 1.408", Ext

RING - retaining

4шт.

45

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION - straight, 5/8 inch tube, 7/8 inch NF (Use qty 1 with Ref. No. 47 for 3rd cicuit installation, or use qty 2 for 4th circuit installation), Includes: Ref. 46

2шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, class 6

1шт.

47

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 5/8 inch tube, 7/8 inch NF (Used with qty 1 of Ref. No. 45 for 3rd circuit installation), Incl. Ref. 48

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, class 6

1шт.

49

A181336

TUBE

- valve to No. 5 coupling (With A181359 replaces A145905) (Use for 3rd circuit installation)

1шт.

50

A181338

TUBE

- valve to No. 6 coupling (With A181359 replaces A180046) (Use for 3rd circuit installation)

1шт.

52

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

53

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

54

9635082

NUT,5/16" - 18, Gr 5

1шт.

55

A147507

STUD

- 3/8 NC x 9-7/8 inch (3rd section mounting)

3шт.

55

A147508

STUD

- 3/8 NC x 11-3/4 inch (4th section mounting)

3шт.

56

A147771

BRACKET

- support, tube clamp

1шт.

57

A17542

CLAMP

- tube

3шт.

58

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

59

95-4

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

60

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

61

25-104

NUT,1/4"-20, G5

3шт.

62

A147772

CLAMP

- tube

1шт.

63

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

64

A177479

CAP

- dust, coupling

2шт.

65

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain (Cut to Length) 7.90 mm ID x 914.40 mm, SAE J200

2шт.

66

A180159

CLAMP,10.29mm - 12.32mm

- hose

2шт.

67

A180154

CLAMP

- drain hose

1шт.

68

A181359

HOSE,12.70 mm ID x 782.00 mm, SAE 100R2

- - Remote tubes to couplings (Use for 3rd or 4th circuit installation) 12.70 mm ID x 782.00 mm, SAE 100R2

2шт.

69

A181340

TUBE

- valve to No. 7 coupling (With A181359 replaces A145907) (Use for 4th circuit installation)

1шт.

70

A181341

TUBE

- valve to N0. 8 coupling (With A181359 replaces A145908) (Use for 4th circuit installation)

1шт.
