Артикул
Название
Примечание
Количество
A181932

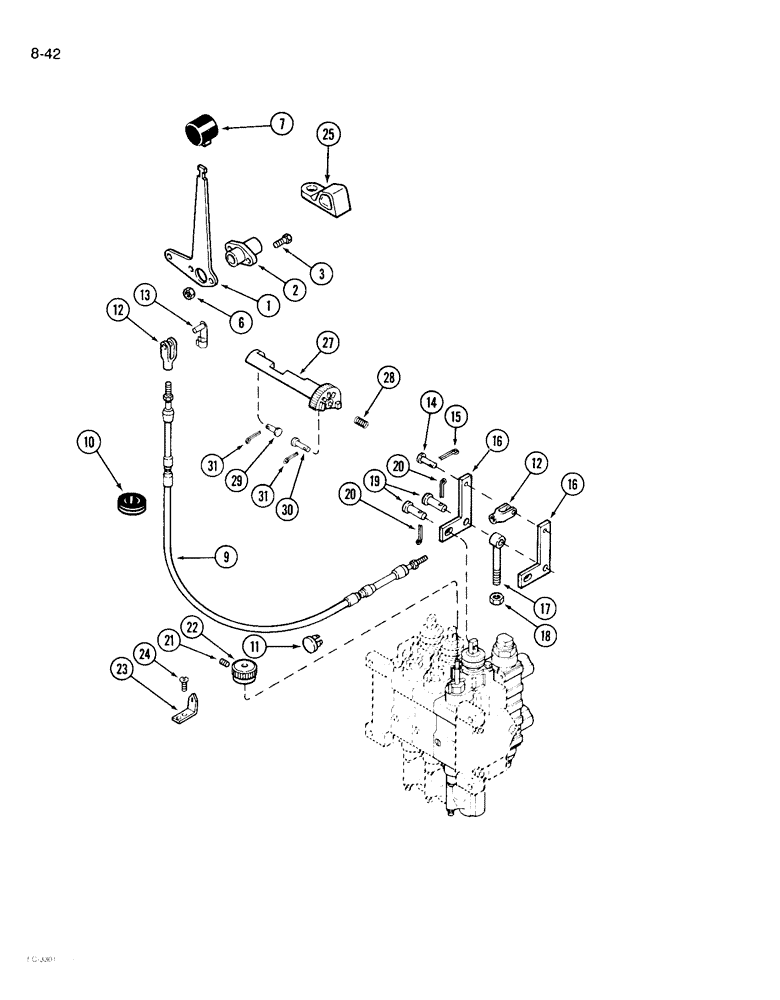

KIT - hydraulic, remote No.3 'add-on' circuit, with load check, Includes: Ref. 1 - 31 and 35 - 68 on fig. 8-44
1шт.
1
A141392
LEVER
- remote hand control
1шт.
A67386
KIT
- lever, remote control, Includes: Ref. 2 - 25
1шт.
2
A160500
BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L
BEARING - control lever
1шт.
3
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch, grade 5
2шт.
6
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA
2шт.
7
A177438
KNOB
- hand lever (Black)
1шт.
9
A177635
CABLE
- control, Serial Range: lever-valve
1шт.
10
A141389
GROMMET
- cable
1шт.
11
A162961
PLUG
- 3/4 inch diameter head
1шт.
12
213-1
ADJUSTABLE CLEVIS,#10-32
CLEVIS - rod end, adjustable, No. 10
2шт.
13
A149683
PIN
- spring, 3/16 inch clevis
1шт.
14
A67313
PIN
- clevis
1шт.
15
132-7
COTTER PIN,1/16" x 3/4"
Pin, Split (Cotter), 1/16" x 3/4"
2шт.
16
A145598
LEVER
- remote valve bellcrank
2шт.
17
A144497
EYE - bellcrank pivot
1шт.
18
25-146
JAM NUT,Jam, 3/8"-16, G5
- hex jam, 3/8 inch NC
1шт.
19
141-54
CLEVIS PIN,3/8" x 1 1/16"
2шт.
20
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
21
A160814
KNOB
- flow control
1шт.
22
84-21010
SET SCREW,Hex Soc, #10-32 x 5/8"
SCREW - set, hex socket, No. 10-32 x 5/8 inch
1шт.
23
A64179
INDEX
- flow control
1шт.
24
263-5446
SELF-TAP SCREW,Slotted Pan Hd, #8 x 3/8"
SCREW - tapping, pan slotted, No. 8-18 x 3/8 inch
2шт.
25
A141542
LEVER
TAB - float lockout
1шт.
27
A162861
QUADRANT
- remote lockout
1шт.
28
A164976
SPRING
- remote lockout
1шт.
29
A67313
PIN
- clevis, quadrant
1шт.
30
A167543
PIN,4.72mm OD x 19.99mm L
- clevis, remote lockout
1шт.
31
132-7
COTTER PIN,1/16" x 3/4"
Pin, Split (Cotter), , Continued on Figure 8-44 1/16" x 3/4"
2шт.
Выбрано товаров: 30
