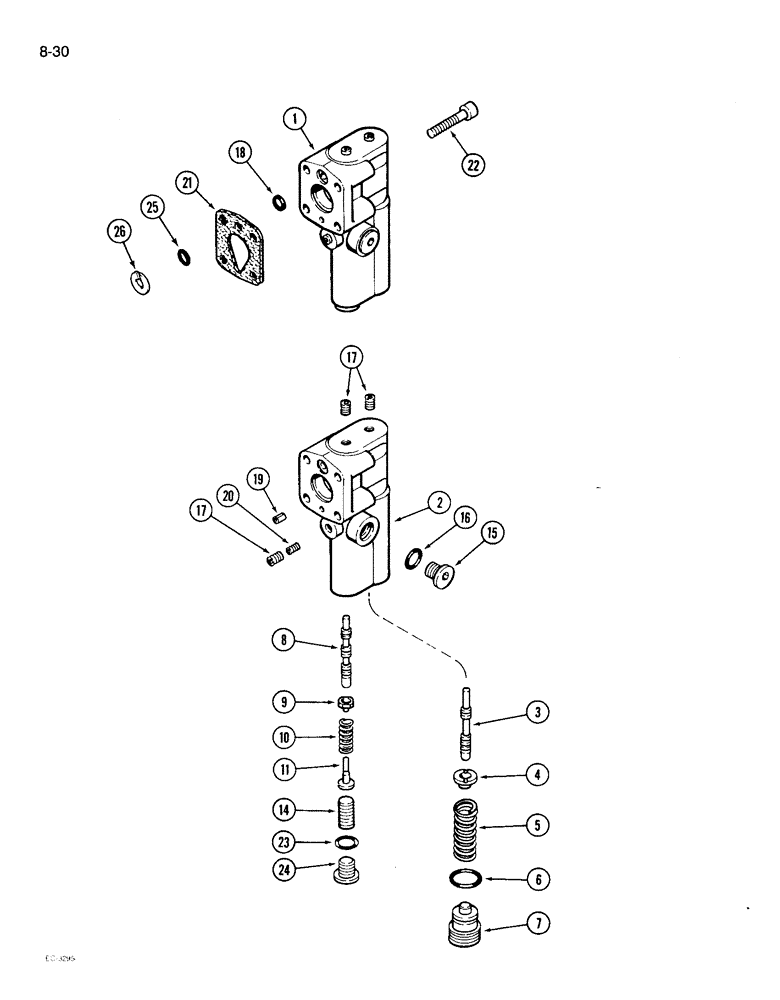

Запчасти Case IH 1896 (8-30) - GEAR AND PISTON PUMP ASSEMBLY, COMPENSATOR VALVE (08) - HYDRAULICS

A166504

PUMP

ASSEMBLY - hydraulic, complete, Includes: Ref. 1 - 26

1шт.

1346425C1

REMAN-HYD PUMP

1896 (S/N 17895000 THRU 002 & UP) (1/84-12/86)

1шт.

1346426C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

A49832

VALVE

COMPENSATOR ASSEMBLY - pump, Includes: Ref. 2 - 26

1шт.

2

A49438

VALVE

BODY - valve

1шт.

3

A47316

SPOOL

- pressure limiter

1шт.

4

A47317

PLUG

SEAT - spool, pressure limiter

2шт.

5

A47318

SPRING

- spool, pressure limiter

1шт.

6

392382R1

O-RING,0.551" ID x 0.07" Width

- 9/16 x 11/16 inch, Class 6

1шт.

Part of seal and gasket service kit P/N A47567.

1шт.

7

A47320

PLUG

- adjusting, pressure limiter spool

1шт.

8

A47321

SPOOL

- load sensing

1шт.

9

A49441

SEAT

- spring, load sensing

1шт.

10

A49439

SPRING

- load sensing spool

1шт.

11

A49442

SEAT

- load sensing

1шт.

14

A49440

SET SCREW,Lock

- set, load sensing

1шт.

15

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

16

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

Part of seal and gasket service kit P/N A47567.

1шт.

17

221-850

PLUG,Hex Soc, 1/16"-27

- hex socket, 1/16 inch PT

3шт.

18

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16 ID x 1/16 inch, class 6

1шт.

Part of seal and gasket service kit P/N A47567.

1шт.

19

A47845

PLUG

- valve body

1шт.

20

A47327

FITTING

ORIFICE - valve body

1шт.

21

A49436

GASKET

- mounting, pump

1шт.

Part of seal and gasket service kit P/N A47567.

1шт.

22

165-26

HEX SOC SCREW,#10 - 24 x 1 1/4"

SCREW - hex socket, No. 10 x 1-1/4 inch

4шт.

23

A49435

O-RING

- rubber

1шт.

Part of seal and gasket service kit P/N A47567.

1шт.

24

A49437

PLUG

- hex socket

1шт.

25

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- sealing

1шт.

Part of seal and gasket service kit P/N A47567.

1шт.

26

A47340

RING

- retaining, piston rod

1шт.

A47567

KIT

- service, seals and gaskets, Includes: Ref. 6, 16, 18, 21, 23 and 25, see Figure 8-22

1шт.
