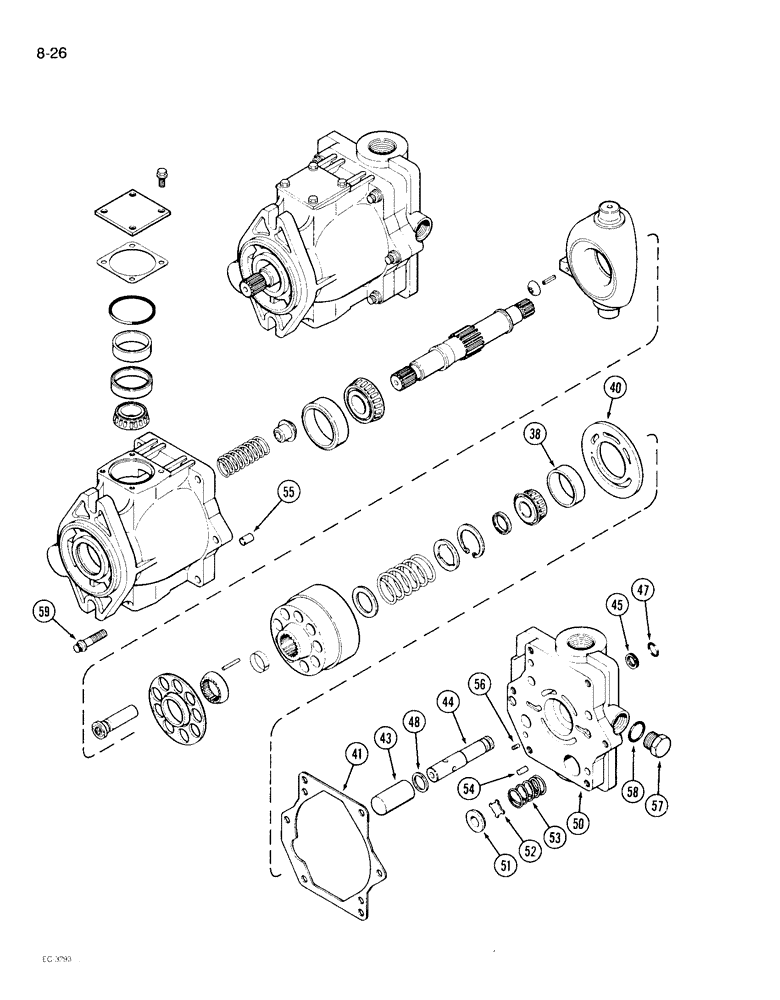

Запчасти Case IH 1896 (8-26) - GEAR AND PISTON PUMP ASSEMBLY, PISTON PUMP (08) - HYDRAULICS

A166504

PUMP

ASSEMBLY - hydraulic, complete (Continued from Figure 8-24), Includes: Ref. 38 - 59 and 1 - 36 on fig. 8-24

1шт.

1346425C1

REMAN-HYD PUMP

1896 (S/N 17895000 THRU 002 & UP) (1/84-12/86)

1шт.

1346426C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - piston (Continued from Figure 8-24), Includes: Ref. 38 - 59 and Fig. 1 - 36 on fig. 8-24

1шт.

38

B14849

CUP

- bearing

1шт.

39

B14850

ROLLER BEARING,0.8445" ID x 0.72"

CONE - bearing

1шт.

40

A47302

PLATE

- wafer

1шт.

41

A47280

GASKET,0.53mm Thk

- piston pump housing

1шт.

Part of seal and gasket service kit P/N A47567.

1шт.

1263240C1

PACKAGE

KIT - service, compensator piston and rod, Includes: Ref. 43 - 45

1шт.

43

NSS

NOT SOLD SEPARAT

PISTON - compensator

1шт.

44

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

45

A47340

RING

- retaining, piston rod

1шт.

47

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- sealing, piston rod

1шт.

Part of seal and gasket service kit P/N A47567.

1шт.

48

A47479

BUSHING

SPACER - steel, piston limit

1шт.

50

A49434

PIPE

BLOCK - valve

1шт.

51

A47306

PLUG

SEAT - valve block

1шт.

52

A47307

VALVE

- check

1шт.

53

A47308

SPRING

- valve block

1шт.

54

A47309

PIN

PLUG - headless, 1/4 x 1/2 inch

1шт.

55

A47301

PIN

- locating, pump housing to valve body

2шт.

56

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

57

86512512

PLUG,7/8" - 14 ORB

- hex, 5/8 inch tube, 7/8 inch NF, Incl. Ref. 58

1шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube

1шт.

Part of seal and gasket service kit P/N A47567.

1шт.

59

166-47

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2", Gr 8

SCREW - 12 point head, 3/8 NC x 1-1/2 inch Continued on Figure 8-28

6шт.

A47567

KIT

- service, seals and gaskets, Includes: Ref. 41, 47 and 58, See Figure 8-22

1шт.
