Артикул
Название
Примечание
Количество
A166504
PUMP

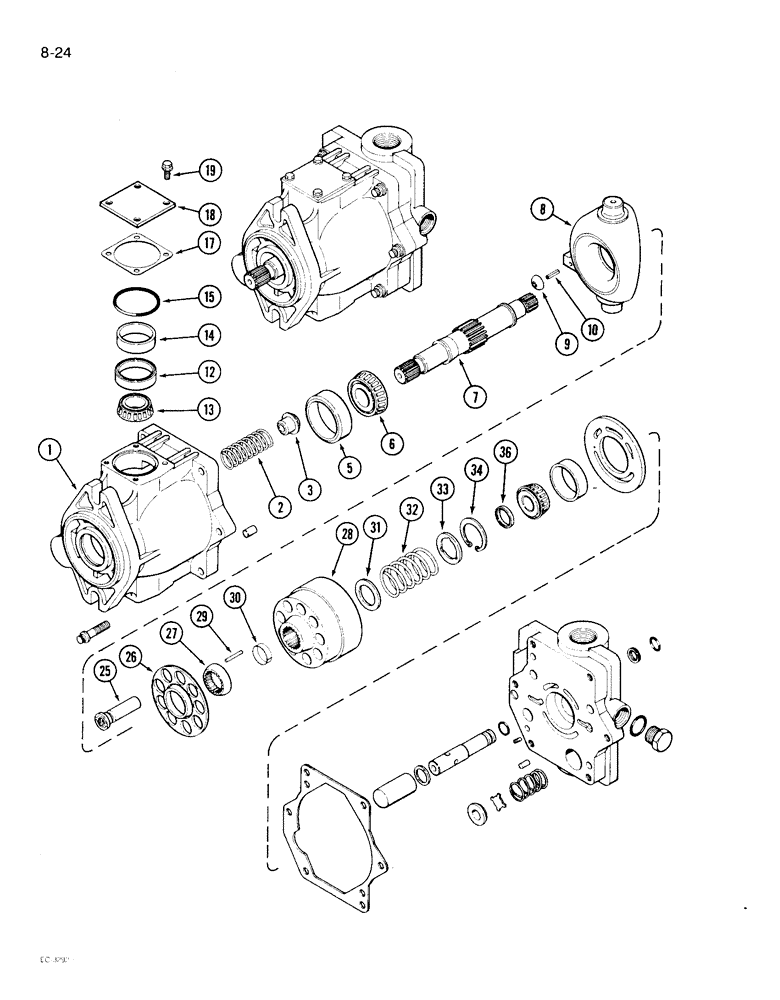

ASSEMBLY - hydraulic, complete, Includes: Ref. 1 - 36 and 38 - 59 on fig. 8-26
1шт.
1346425C1
REMAN-HYD PUMP
1896 (S/N 17895000 THRU 002 & UP) (1/84-12/86)
1шт.
1346426C1
CORE-HYDRAULIC PUMP
Return Number
1шт.
NSS
NOT SOLD SEPARAT
PUMP ASSEMBLY - piston (Order A166504), Includes: Ref. 1 - 36 and 38 - 59 on fig. 8-26
1шт.
1
A47278
HOUSING
- pump, piston
1шт.
2
A47281
SPRING
- piston pump housing
1шт.
3
A47282
PLUG
SEAT - spring, piston pump housing
1шт.
5
642954R1
BEARING ASSY,1" ID x 2.441" OD x 0.8125"
CUP - bearing
1шт.
6
594446R1
ROLLER BEARING
CONE - bearing
1шт.
7
A47289
SHAFT
- drive, piston pump
1шт.
8
A47284
YOKE
- swing
1шт.
9
A47283
SEAT
- spherical, piston pump housing
1шт.
10
138-88
LOCK PIN,3/16" x 1/2", Slotted
PIN, 3/16" x 1/2", Slotted
1шт.
12
D29267
BEARING CUP,1.98" OD x 0.42"
CUP - bearing
1шт.
13
572563R1
ROLLER BEARING,27 mm ID x 50.317 mm OD x 14.732 mm
CONE - bearing
1шт.
14
A47286
SPACER
- yoke bearing
2шт.
15
G102152
O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro
- 2-3/64 ID x 7/64 inch
2шт.
Part of seal and gasket service kit P/N A47567.
1шт.
145590C1
SHIM KIT
KIT - service, yoke bearing shims, Includes: Ref. 17
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 0.003 inch (Qty. 3 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 0.005 inch (Qty. 2 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 0.010 inch (Qty. 2 in kit)
1шт.
18
A47288
COVER
- housing, piston pump
2шт.
19
121-3
SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
8шт.
25
A47334
PACKAGE
KIT - piston (Includes 9 pistons and 9 shoes)
1шт.
N8303
KIT
- service, rotating group, Includes: Ref. 26 - 34
1шт.
26
A47292
PLATE
- shoe, piston pump
1шт.
27
A47293
WASHER
- spherical, cylinder block
1шт.
28
A47295
BLOCK
- cylinder
1шт.
29
A47296
PIN
- cylinder block
3шт.
30
A47297
SNAP RING,7.11mm Thk, Int
- pin
1шт.
31
A47299
WASHER
- spring, front
1шт.
32
A47298
SPRING
- block
1шт.
33
A47300
SPRING WASHER
WASHER - spring, rear
1шт.
34
NLS
NO LONGER SERVICED
Ring, Snap, , piston pin 1.625", Int, #162
1шт.
145582C1
KIT
- bearing spacers, Includes: Ref. 36
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.139 inch
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.142 inch
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.145 inch
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.148 inch
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.151 inch
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.154 inch
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.157 inch
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.160 inch
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.163 inch
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.166 inch
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.169 inch Continued on Figure 8-26
1шт.
A47567
KIT
- service, seals and gaskets, Includes: Ref. 15, see Figure 8-22
1шт.
Выбрано товаров: 48
