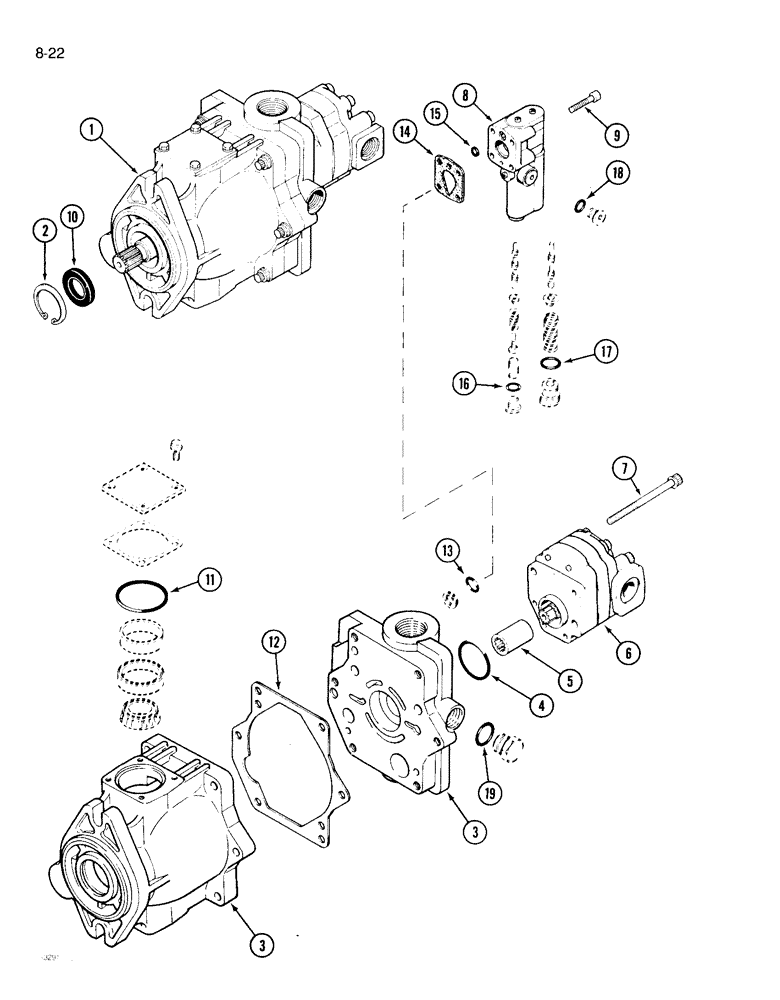

Запчасти Case IH 1896 (8-22) - GEAR AND PISTON PUMP ASSEMBLY (08) - HYDRAULICS

1

A166504

PUMP

ASSEMBLY - hydraulic, Includes: Ref. 2 - 19

1шт.

1346425C1

REMAN-HYD PUMP

1896 (S/N 17895000 THRU 002 & UP) (1/84-12/86)

1шт.

1346426C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

A49490

CIRCLIP

RING - retaining, oil seal

1шт.

3

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - piston (See Figure 8-22)

1шт.

4

F98069

O-RING

- sealing

1шт.

5

A47312

COUPLING, BREAK AWAY

COUPLING - drive, gear pump to piston pump (See Figure 8-28)

1шт.

6

A47928

PUMP

ASSEMBLY - gear type (See Figure 8-28)

1шт.

84372945R

REMAN-HYD PUMP

1896 (S/N 17895000 THRU 002 & UP) (1/84-12/86), Reman for New PN A47928

1шт.

84372945C

CORE-HYDRAULIC PUMP

Return Number

1шт.

7

A47412

SCREW,M8 x 100mm

- metric, gear pump to piston pump

2шт.

8

A49832

VALVE

COMPENSATOR ASSEMBLY - pump (See Figure 8-30)

1шт.

9

165-26

HEX SOC SCREW,#10 - 24 x 1 1/4"

SCREW - hex socket, No. 10 x 1-1/4 inch

4шт.

A47567

KIT

- service, seals and gaskets, Includes: Ref. 10 - 19

1шт.

10

A47480

SEAL,25.35mm ID x 44.78mm OD x 7.57mm Thk

- oil

1шт.

11

G102152

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

- 2-3/64 ID x 7/64 inch, yoke cover to piston

2шт.

12

A47280

GASKET,0.53mm Thk

- piston pump housing

1шт.

13

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- sealing

1шт.

14

A49436

GASKET

- mounting, Serial Range: compensator-pump

1шт.

15

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16 ID x 1/16 inch, class 6

1шт.

16

A49435

O-RING

- rubber

1шт.

17

392382R1

O-RING,0.551" ID x 0.07" Width

- 9/16 x 11/16 inch, class 6

1шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, class 6

1шт.
