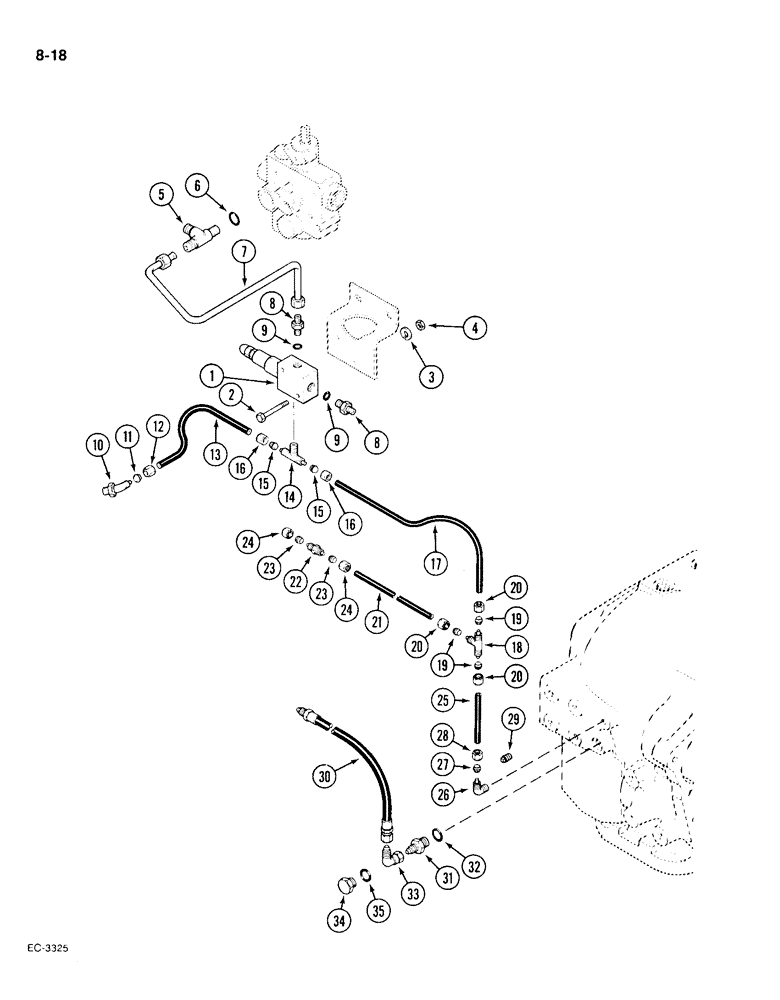

Запчасти Case IH 1896 (8-18) - SEAT AIR/OIL SUSPENSION (08) - HYDRAULICS

1

A185476

VALVE

ASSEMBLY - pressure regulator (See Figure 8-20)

1шт.

2

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

5

218-5578

TEE,9/19/16"-18, 37 Degree x 1 1/16"-12, O-Ring Run

- adjustable, 3/8 x 3/4 x 3/4 inch O.D. tube, Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch O.D. tube, class 6

1шт.

7

A181865

TUBE

- seat valve supply

1шт.

8

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

UNION - straight, 3/8 x 1/4 inch O.D. tube, Includes: Ref. 9

2шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

10

222-2726

ELBOW,45 Degree, 17/32"-24 x 1/4" NPT, Comp

- 45 degree, 3/8 inch tube, 1/4 inch NPTF (Differential lock valve) (See Figure 7-10), Includes: Ref. 11 and 12

1шт.

11

222-2611

SLEEVE

- 3/8 inch O.D. tube

1шт.

12

222-2601

NUT

NUT - hex, 3/8 inch tube, 17/32-24 inch thread

1шт.

13

A137319

TUBE

- nylon, 3/8 x 15 inch

1шт.

14

222-2676

TEE,17/32"-24 x 1/4" NPT Br

- 3/8 x 3/8 inch tube x 1/4 inch NPTF, Includes: Ref. 15 and 16

1шт.

15

222-2611

SLEEVE

- flanged, 3/8 inch O.D. tube

2шт.

16

222-2601

NUT

NUT - hex, 3/8 inch tube, 17/32-24 inch thread

2шт.

17

A63670

TUBE

- nylon, 3/8 x 15 inch

1шт.

18

222-2751

HYD CONNECTOR

TEE - 3/8 inch tube, 17/32-24 inch thread, Includes: Ref. 19 and 20

1шт.

19

222-2611

SLEEVE

- flanged, 3/8 inch O.D. tube

3шт.

20

222-2601

NUT

NUT - hex, 3/8 inch tube, 17/32-24 inch thread

3шт.

21

A137319

TUBE

- nylon, 3/8 x 15 inch (Seat drain extension)

1шт.

22

222-2651

HYD CONNECTOR,17/32"-24

UNION - 3/8 inch tube, 17/32-24 inch thread, Includes: Ref. 23 and 24

1шт.

23

222-2611

SLEEVE

- flanged, 3/8 inch O.D. tube

2шт.

24

222-2601

NUT

NUT - hex, 3/8 inch tube, 17/32-24 inch thread

2шт.

25

A50961

NUT

TUBE - bypass

1шт.

26

222-2646

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

- 90 degree, 3/8 inch tube x 1/8 inch NPTF, Includes: Ref. 27 and 28

1шт.

27

222-2611

SLEEVE

- flanged, 3/8 inch O.D. tube

1шт.

28

222-2601

NUT

NUT - hex, 3/8 inch tube, 17/32-24 inch thread

1шт.

29

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT (Without air/oil seat)

1шт.

30

H165282

HYDRAULIC HOSE,6.35 mm ID x 533.40 mm, SAE 100R1

6.35 mm ID x 533.40 mm, SAE 100R, Seat Drain Extension

1шт.

31

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

UNION - straight, 3/8 x 1/2 inch O.D. tube (With air/oil seat), Includes: Ref. 32

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

33

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 3/8 inch tube x 9/16 inch NF

1шт.

34

214389

PLUG,3/4" - 16 ORB

1/2 inch tube (Without air/oil seat), Includes Ref. 35 Hex Hd, 3/4"-16 ORB

1шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.
