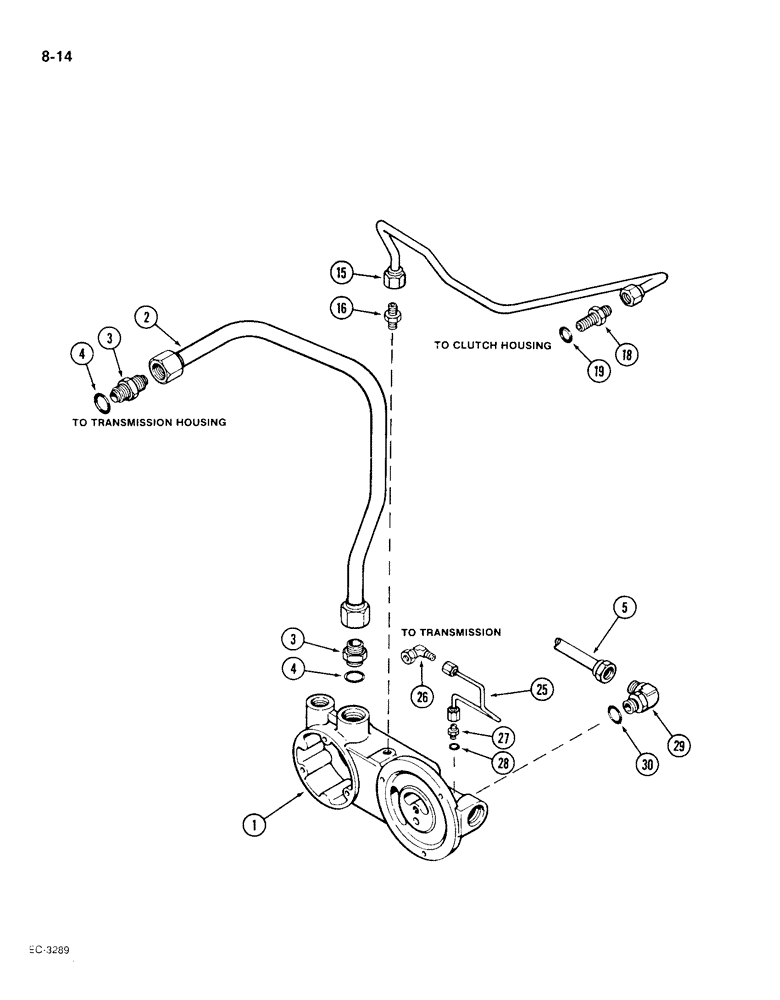

Запчасти Case IH 1896 (8-14) - TRANSMISSION LUBRICATION TUBES, WITH POWER SHIFT (08) - HYDRAULICS

1

A167841

HOUSING

- filter (See Figure 8-12)

1шт.

2

A160224

TUBE

- charge pump, transmission

1шт.

3

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

UNION - straight, 1 inxh tube, 1-5/16 inch NF, Incl. Ref. 4

2шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1 inch O.D. tube

1шт.

5

A160218

TUBE

- suction, steering (See Figure 8-10)

1шт.

15

A166793

TUBE

- lubrication, (C1) clutch

1шт.

16

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

UNION - straight, 1/2 inch tube, 3/4 inch NF x 3/8 inch NPTF

1шт.

18

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION - bulkhead, 1/2 inch tube, 3/4 inch NF

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

25

A164078

TUBE

- lubrication, transmission countershaft

1шт.

26

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree swivel, 14 inch tube, 7/16 inch NF

1шт.

27

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

UNION - straight, 1/4 inch tube, 7/16 inch NF, Incl. Ref. 28

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

29

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 5/8 inch tube, 7/8 inch NF, Incl. Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 58 inch O.D. tube, class 6

1шт.
