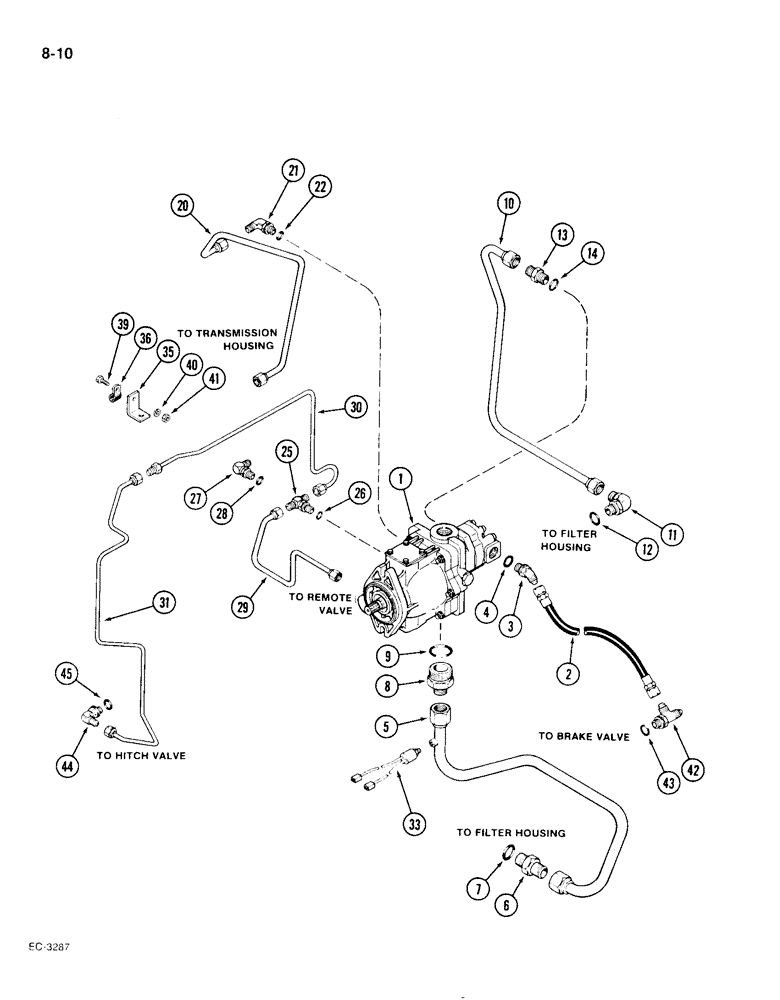

Запчасти Case IH 1896 (8-10) - HYDRAULIC PUMP CIRCUIT (08) - HYDRAULICS

1

A166504

PUMP

ASSEMBLY - hydraulic (See Figure 8-22)

1шт.

1346425C1

REMAN-HYD PUMP

1896 (S/N 17895000 THRU 002 & UP) (1/84-12/86)

1шт.

1346426C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

A166607

HYDRAULIC HOSE,0.50" ID x 37.00", SAE 100R2 Type A per SAE J517

- Hydraulic pump to brake valve 0.50" ID x 37.00", SAE 100R2 Type A per SAE J517

1шт.

3

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree adjustable, 1/2 inch tube, 3/4 inch NF, Incl. Ref 4

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

5

A160222

TUBE

- suction, Serial Range: filter-pump

1шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

UNION - straight, 1 inch tube, 1-5/16 inch NF, Incl. Ref. 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1 inch O.D. tube

1шт.

8

A147128

CONNECTOR, ELEC

UNION - straight, 1 inch tube, 1-5/16 NF x 1-7/8 inch NF, Includes: Ref. 9

1шт.

9

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-1/2 inch O.D. tube

1шт.

10

A160218

TUBE

- suction, steering

1шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 5/8 inch tube, 7/8 inch NF, Incl. Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, class 6

1шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION - straight, 5/8 inch tube, 7/8 inch NF, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, class 6

1шт.

20

A160223

TUBE

- pump drain

1шт.

21

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 1/2 to 5/8 inch O.D. tube, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, class 6

1шт.

25

218-5510

TEE,9/16"-18, 37 Degree x 7/16"-20, O-Ring Br

- adjustable, 3/8 x 3/8 x 1/4 inch O.D. tube (With hitch), Includes: Ref. 26

1шт.

26

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

27

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

- 90 degree, adjustable, 3/8 x 1/4 inch O.D. tube (Without hitch), Incl. Ref. 28

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

29

A164627

TUBE

- pump, remote valve

1шт.

30

A162530

PIPE

TUBE - hitch pilot valve, left hand

1шт.

31

A162529

TUBE

- hitch pilot valve, right hand

1шт.

33

A167895

SWITCH

- pressure, 15 psi, transmission filter

1шт.

35

A162527

BRACKET

- clamp (With hitch)

1шт.

36

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- harness retaining, 3/8 inch ID (With hitch)

1шт.

39

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(with hitch) Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

40

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, (With hitch) 5/16"

1шт.

41

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, grade 5 (With hitch)

1шт.

42

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- adjustable, 1/2 inch tube, 3/4 inch NF, Includes: Ref. 43

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

44

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree adjustable, 3/8 inch tube, 9/16 inch NF (With hitch), Includes: Ref. 45

1шт.

45

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.
