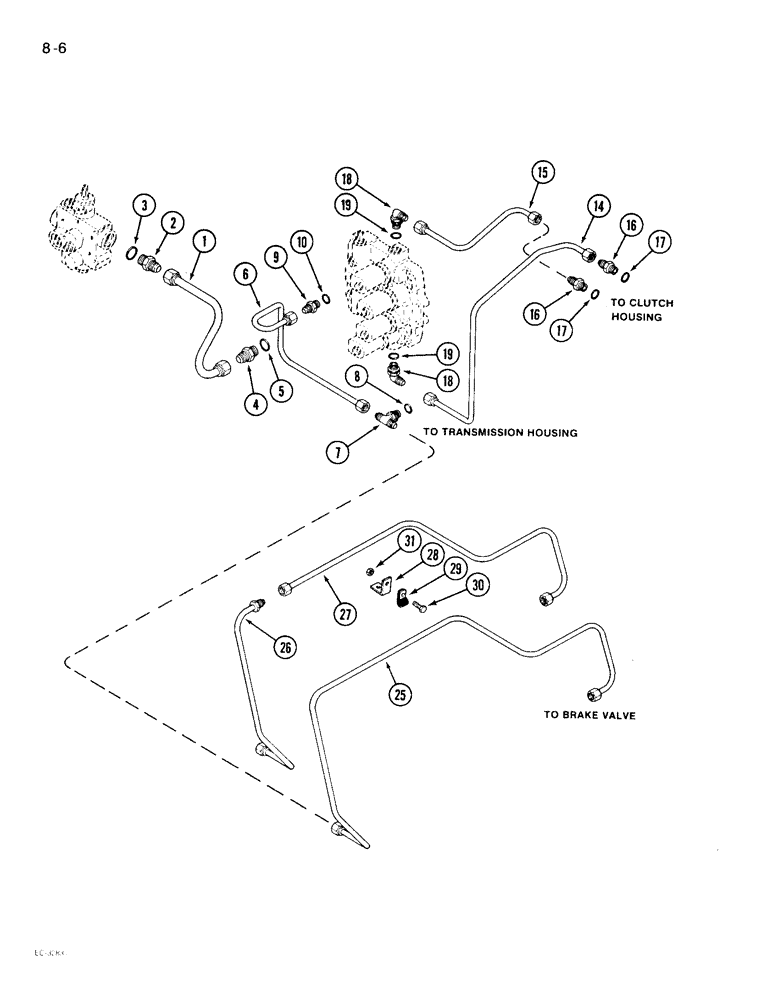

Запчасти Case IH 1896 (8-06) - POWER SHIFT CONTROL CIRCUIT (08) - HYDRAULICS

1

A176435

TUBE

- supply, regulator valve to control valve

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

UNION - straight, 3/4 inch tube, 1-1/16 inch NF, Incl. Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch O.D. tube, class 6

1шт.

4

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

UNION - straight, reducing, 3/4 to 5/8 inch O.D. tube, Includes: Ref. 5

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch O.D. tube, class 6

1шт.

6

A166533

TUBE

- control valve, shift manifold

1шт.

7

219-5183

TEE - adjustable, 1/2 inch tube, 3/4 inch NF, Includes: Ref. 8

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION - straight, 1/2 inch tube, 3/4 inch NF, Incl. Ref 10

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

14

A166530

TUBE

- fill, (C1) clutch

1шт.

15

A166531

TUBE

- fill, (C4) clutch

1шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION - straight, 1/2 inch tube, 3/4 inch NF, Incl. Ref 17

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 1/2 inch tube, 3/4 inch NF, Includes: Ref. 19

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

25

NSS

NOT SOLD SEPARAT

TUBE - return, oil cooler (Order A167134 and A167135)

1шт.

26

A167134

TUBE

- oil cooler (Service only)

1шт.

27

A167135

TUBE

- return, oil cooler (Service only)

1шт.

28

A164948

BRACKET

- clamp, brake tube

1шт.

29

49838

CLAMP

- tube, oil cooler

1шт.

30

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

31

425-106

NUT,3/8"-16, Cl 5

1шт.
