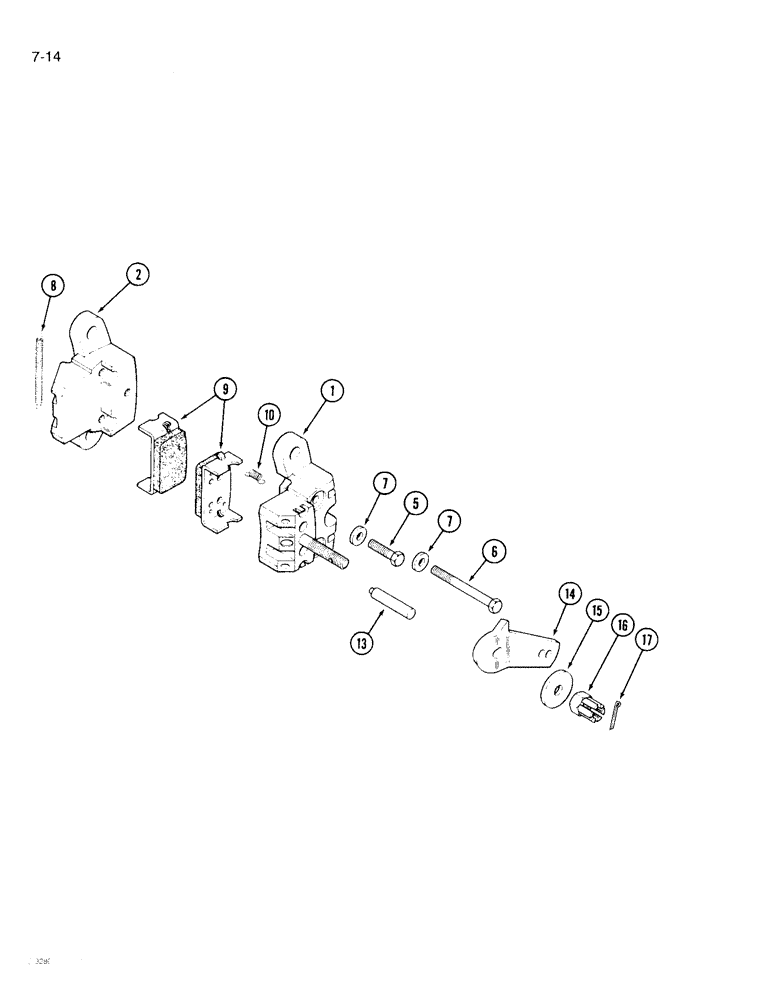

Запчасти Case IH 1896 (7-14) - CALIPER DISC BRAKE (07) - BRAKES

A156788

BRAKE

ASSEMBLY - disc, mechanical caliper, Includes: Ref. 1 - 17

1шт.

A48215

HOUSING

BODY ASSEMBLY - brake, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - brake, with stud (Order A48215)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - brake, without stud (Order A48215)

1шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, grade 5

2шт.

6

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- hex, 3/8 NC x 3-3/4 inch, grade 5

1шт.

7

A48221

WASHER

- special

3шт.

8

S107628

SPRING

- pad return

1шт.

9

S107627

BRAKE PAD

PAD - brake

2шт.

10

A48217

SPRING

- pad return

2шт.

13

S113626

PIN

- thrust, park brake

2шт.

14

A48218

CAM

- brake

1шт.

15

S113628

WASHER

- brake cam (Hard)

1шт.

16

A48220

NUT

- hex slotted, 1/2 inch NC

1шт.

17

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.
