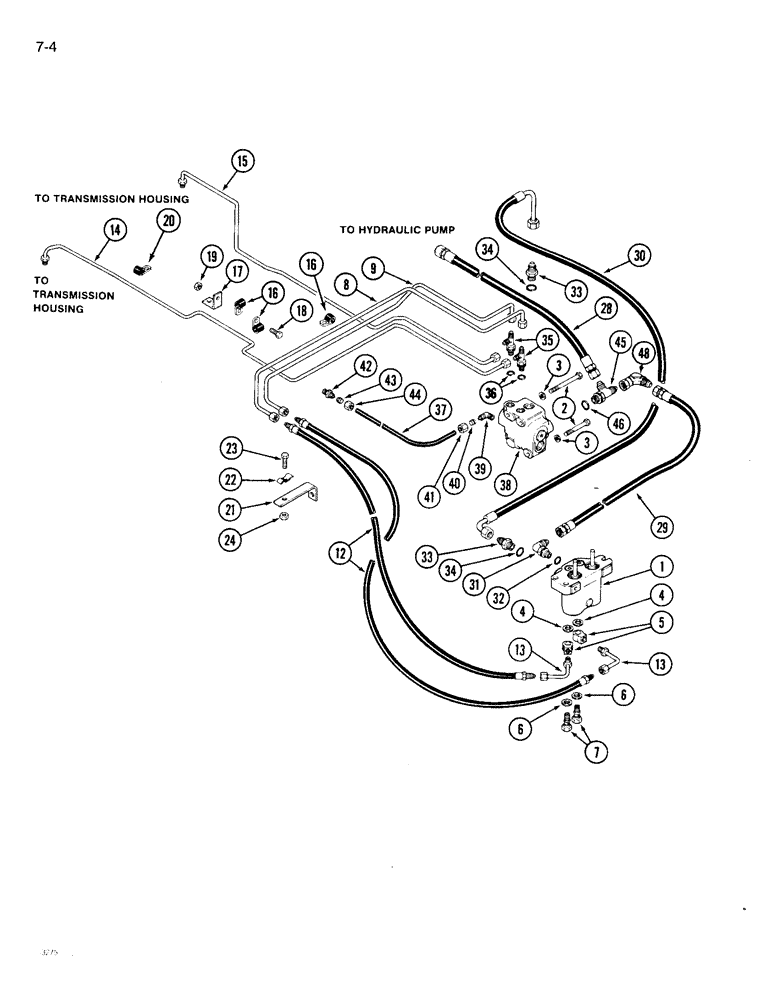

Запчасти Case IH 1896 (7-04) - BRAKE VALVE, HOSES AND TUBES (07) - BRAKES

1

REF

INSTRUCTION

VALVE ASSEMBLY - brake master (See Figure 7-8)

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

2

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

3

492-11038

LOCK WASHER,3/8"

3шт.

4

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - brake master cylinder

2шт.

5

A18531

FITTING

- special, brake tube

2шт.

6

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- brake master cylinder

2шт.

7

A12864

BOLT

- special, brake master cylinder

2шт.

8

A166603

TUBE

- brake, front right

1шт.

9

A166604

TUBE

- brake, front left

1шт.

12

A164950

HYDRAULIC HOSE,0.25" ID x 15.50", SAE 100R1 per SAE J517

- Brake master cylinder outlet 0.25" ID x 15.50", SAE 100R1 per SAE J517

2шт.

13

A164949

TUBE

- brake master cylinder outlet

2шт.

14

A166605

TUBE

- brake, rear right

1шт.

15

A166606

TUBE

- brake, rear left

1шт.

16

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- retaining, brake tubes

1шт.

17

A164948

BRACKET

- clamp retaining

1шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

20

R13002

CLAMP

- brake tube

1шт.

21

A149866

BRACKET

- hose clamp

1шт.

22

A63323

CLAMP

- hose

1шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

24

131-634

SPRING NUT,J, Ret, 3/8"-16

1шт.

28

A166607

HYDRAULIC HOSE,0.50" ID x 37.00", SAE 100R2 Type A per SAE J517

- Hydraulic pump to brake valve 0.50" ID x 37.00", SAE 100R2 Type A per SAE J517

1шт.

29

A180958

HOSE,0.25" ID x 28.00", SAE J516, SAE 100R1, SAE J343, SAE J517

- brake valve to master cylinder 0.25" ID x 28.00", SAE J516, SAE 100R1, SAE J343, SAE J517

1шт.

30

A177847

HOSE

- master cylinder drain

1шт.

31

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, 3/8 inch tube x 9/16 inch NF, Includes: Ref. 32

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

33

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

UNION - straight, 1/4 inch tube x 1/2 inch tube, Includes: Ref. 34

2шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

35

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- adjustable, 1/4 inch tube, 7/16 inch NF, Includes: Ref. 36

2шт.

36

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

37

A75811

TUBE

- nylon, 3/8 inch O.D. x 34 inch

1шт.

38

G105128

VALVE, BRAKE

VALVE ASSEMBLY - power brake (See Figure 7-06)

1шт.

39

222-2641

ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp

- 90 degree, 3/8 inch tube x 1/4 inch NPT, Includes: Ref. 40 and 41

1шт.

40

222-2611

SLEEVE

- 3/8 inch O.D. tube

1шт.

41

222-2601

NUT

NUT - hex, 3/8 inch tube, 17/32-24 inch thread

1шт.

42

222-2626

FITTING,17/32"-24 x 1/4" NPT, Comp

UNION - straight, 3/8 inch tube x 1/4 inch NPT, Includes: Ref. 43 and 44

1шт.

43

222-2611

SLEEVE

- 3/8 inch O.D. tube

1шт.

44

222-2601

NUT

NUT - hex, 3/8 inch tube, 17/32-24 inch thread

1шт.

45

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- adjustable, 1/2 inch tube, 3/4 inch NF, Includes: Ref. 46

1шт.

46

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

48

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 1/2 inch tube x 3/4 inch NF

1шт.
