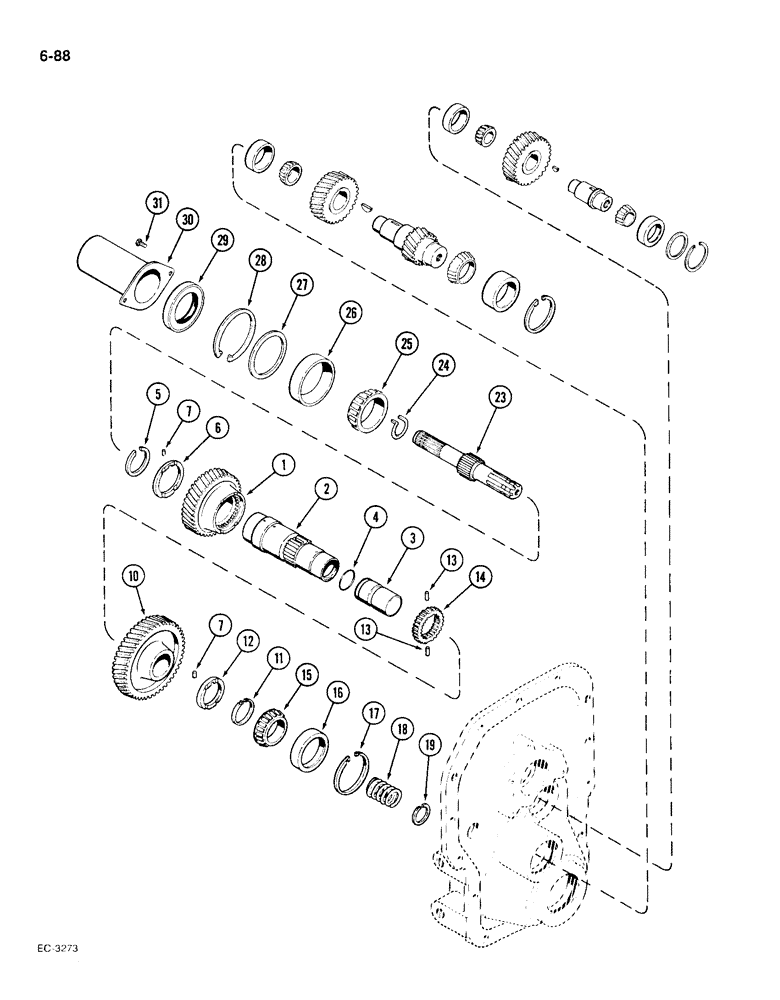

Запчасти Case IH 1896 (6-88) - PTO OUTPUT SHAFT, DUAL SPEED, 540 - 1000 RPM (06) - POWER TRAIN

1

A152182

GEAR

- output, 1000 rpm (40 teeth)

1шт.

2

A142886

SPLINED COUPLING

SLEEVE - output gear, outer

1шт.

3

A142887

SLEEVE

- outout gear, inner

1шт.

4

A59001

O-RING,1.612" ID x 1.818" OD

- sleeve, PTO output shaft

1шт.

Part of PTO clutch and brake seal kit P/N A49420.

1шт.

5

A27233

RING

- retaining, PTO rear thrust washer

1шт.

6

A64309

WASHER,70.28mm ID x 88.9mm OD x 5.59mm Thk

- thrust, large

1шт.

7

138-50

LOCK PIN,1/8" x 5/16", Slotted

PIN, 1/8" x 5/16", Slotted

2шт.

10

A152183

GEAR

- output shaft, 540 rpm (49 teeth)

1шт.

11

A150145

RING

- retaining, external

1шт.

12

A64308

WASHER,58.95mm ID x 76.2mm OD x 5.59mm Thk

- thrust, small

1шт.

13

A62026

PIN

- collar, 5/16 x23/32 inch

2шт.

14

A58210

COLLAR

- shifting

1шт.

15

A150146

ROLLER BEARING,57.163 mm ID x 22.022 mm

CONE - bearing, front

1шт.

16

A30308

ROLLER BEARING,98.450 mm OD x 17.826 mm

CUP - bearing, front

1шт.

17

A151609

RING

- retaining, spacer, 0.062 inch

1шт.

17

A151608

RING

- retaining, spacer, 0.067 inch

1шт.

17

A151607

RING

- retaining, spacer, 0.072 inch

1шт.

17

A151606

RING

- retaining, spacer, 0.077 inch

1шт.

17

A152252

RING

- retaining, spacer, 0.082 inch

1шт.

17

A142251

RING - reatining, spacer, 0.087 inch

1шт.

17

A152250

RING

- retaining, spacer, 0.092 inch

1шт.

17

A152249

RING

- retaining, spacer, 0.097 inch

1шт.

17

A152248

RING

- retaining, spacer, 0.103 inch

1шт.

18

A58213

SPRING

- PTO gear shifting

1шт.

19

A58212

RING

- retaining, gear shift spring

1шт.

23

A140655

SHAFT

- output, dual speed

1шт.

24

A61029

SNAP RING,3.48mm Thk, Int

- retaining, output shaft

1шт.

25

R32215

ROLLER BEARING,2.7559" ID x 4.3307" OD x 1.02363"

CONE - bearing, rear

1шт.

26

R32214

CUP

- bearing, rear

1шт.

27

A152659

SPACER

- rear bearing, PTO output

1шт.

28

R32220

SNAP RING,4.331", Int, #433

Ring, Snap, , rear output brg 4.331", Int, #433

1шт.

29

A182451

OIL SEAL

SEAL - oil, PTO

1шт.

Part of PTO clutch and brake seal kit P/N A49420.

1шт.

30

A142425

GUARD

- output shaft (If fitted)

1шт.

31

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

A49420

SEAL

KIT - seals, PTO clutch and brake, Includes: Ref. 4 and 29

1шт.
