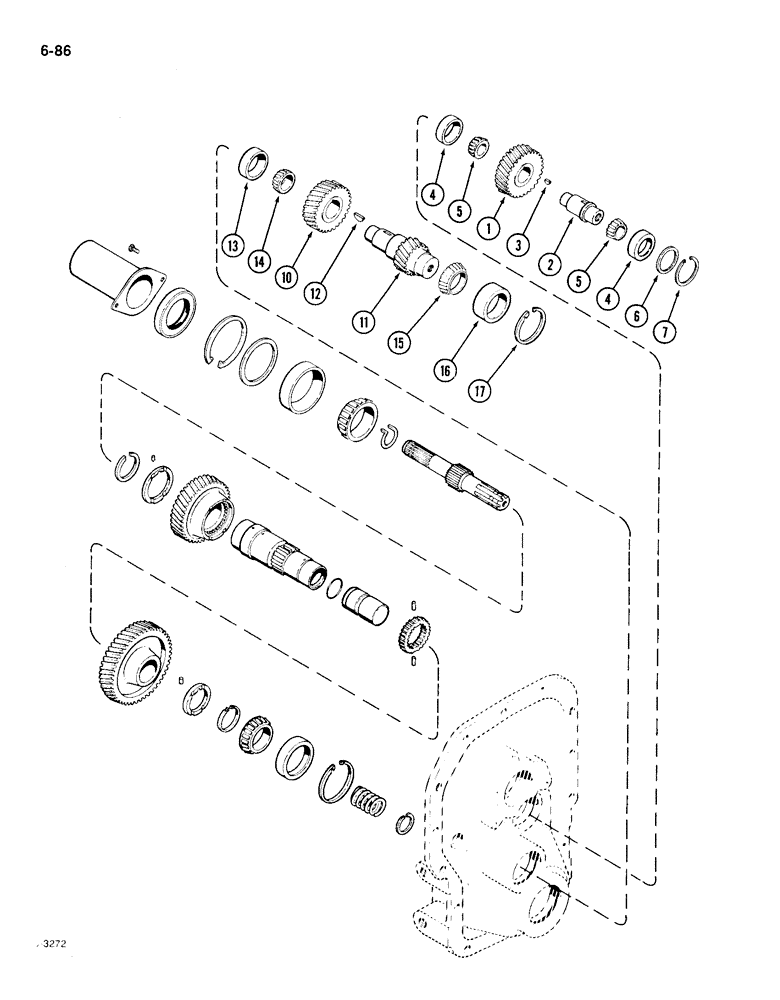

Запчасти Case IH 1896 (6-86) - PTO IDLER GEARS AND SHAFT, DUAL SPEED, 540 - 1000 RPM (06) - POWER TRAIN

1

A150952

GEAR

- idler, first (29 teeth)

1шт.

2

A142872

SHAFT

- first idler gear

1шт.

3

126-115

WOODRUFF KEY,#8, 5/32" x 3/4", HT

1шт.

4

D31948

BEARING CUP,2.5312" OD x 0.6563"

CUP - bearing, first idler

2шт.

5

D31949

ROLLER BEARING,30.175 mm ID x 21.636 mm

CONE - bearing, first idler

2шт.

6

A151692

BUSHING

SPACER - first idler gear, 0.045 inch

1шт.

6

A151691

BUSHING

SPACER - first idler gear, 0.050 inch

1шт.

6

A151346

BUSHING

SPACER - first idler gear, 0.055 inch

1шт.

6

A151345

BUSHING

SPACER - first idler gear, 0.060 inch

1шт.

6

A151344

BUSHING

SPACER - first idler gear, 0.065 inch

1шт.

6

A151343

BUSHING

SPACER - first idler gear, 0.070 inch

1шт.

6

A151342

BUSHING

SPACER - first idler gear, 0.075 inch

1шт.

6

A151341

BUSHING

SPACER - first idler gear, 0.080 inch

1шт.

7

A140746

SNAP RING,#253, 2.706", Int

RING - retaining, first idler gear

1шт.

10

A155613

GEAR

- idler, second (29 teeth)

1шт.

11

A155612

SHAFT

- second idler gear

1шт.

12

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

13

A27631

CUP

- bearing, outer, second idler

1шт.

14

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer, second idler

1шт.

15

R32217

ROLLER BEARING,50 mm ID x 21.5 mm

CONE - bearing, inner, second idler

1шт.

16

R32216

BEARING CUP,82 mm OD x 17 mm

CUP - bearing, inner, second idler

1шт.

17

A151678

RING

- retaining, spacer, 0.070 inch

1шт.

17

A151677

RING

- retaining, spacer, 0.076 inch

1шт.

17

A151676

RING

- retaining, spacer, 0.081 inch

1шт.

17

A151675

RING

- retaining, spacer, 0.086 inch

1шт.

17

A152246

RING

- retaining, spacer, 0.091 inch

1шт.

17

A152245

RING

- reatining, spacer, 0.096 inch

1шт.

17

A152244

RING

- retaining, spacer, 0.101 inch

1шт.

A182715

SPRING

new

1шт.

A66479

RING

WASHER new

1шт.
