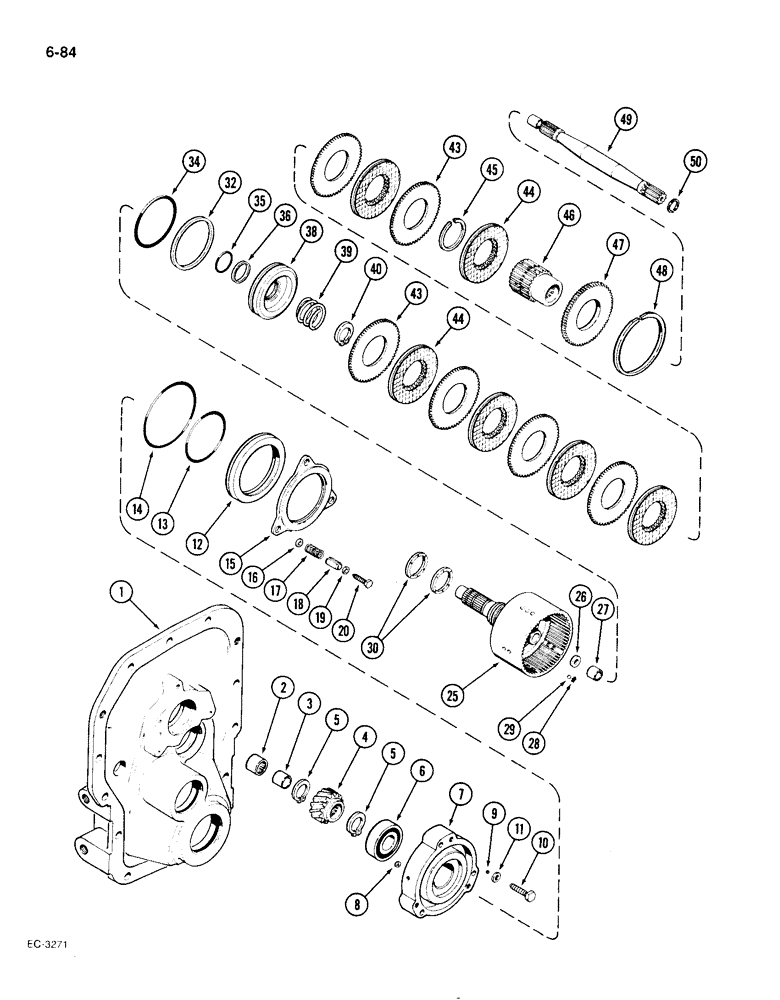

Запчасти Case IH 1896 (6-84) - PTO CLUTCH AND BRAKE (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING - PTO (See Figure 6-82)

1шт.

2

K690321

NEEDLE BEARING

BEARING - needle, input, clutch carrier

1шт.

3

A142869

ROLLER CAGE BEARING

SLEEVE - needle bearing, input, clutch carrier

1шт.

4

A152151

GEAR

- PTO input, (24 internal and 19 external teeth)

1шт.

5

A144595

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

2шт.

6

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BEARING - ball

1шт.

7

A142868

CARRIER

- PTO brake piston

1шт.

8

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - square section, 0.301 ID x 0.066 inch

2шт.

Part of PTO clutch and brake seal kit P/N A49420.

1шт.

9

211-9

BALL,5/16" Dia

- 5/16 inch, grade 200, chrome alloy steel

1шт.

10

26-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

- hex, 3/8 NC x 2-3/4 inch, grade 8

3шт.

11

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened, carrier bolts

3шт.

12

A150236

PISTON

- PTO brake

1шт.

13

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

- inner, 5 inch

1шт.

Part of PTO clutch and brake seal kit P/N A49420.

1шт.

14

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

- outer, 6-1/2 inch

1шт.

Part of PTO clutch and brake seal kit P/N A49420.

1шт.

15

A142864

BRAKE

- PTO, with lining

1шт.

16

A148875

WASHER,8.2mm ID x 12.7mm OD x 0.86mm Thk

- PTO brake return spring

3шт.

17

A152184

SPRING

- PTO brake return

3шт.

18

138-202

LOCK PIN,1/2" x 1 3/8", Slotted

Pin, 1/2" x 1 3/8", Slotted

3шт.

19

95-4

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

3шт.

20

26-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

- hex, 5/16 NC x 2-1/4 inch, grade 8

3шт.

A156294

CARRIER

ASSEMBLY - PTO clutch, Includes: Ref. 25 - 29

1шт.

25

A156285

CARRIER

- PTO clutch and brake

1шт.

26

A63265

WASHER

- thrust, PTO input shaft

1шт.

27

A64451

BUSHING,20.54mm ID x 25.41mm OD x 22.35mm L

- shaft, PTO power input

1шт.

28

A153400

SNAP RING,0.312", Int, #31

ball 0.312", Int, #31

1шт.

29

211-8

BALL,9/32" Dia

grade 200, chrome alloy steel 9/32" Dia

1шт.

30

A59005

SEAL

O-RING - PTO clutch carrier

2шт.

32

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

SEAL - piston, 5-7/64 inch O.D.

1шт.

Part of PTO clutch and brake seal kit P/N A49420.

1шт.

34

A155963

SEAL

O-RING - piston seal, 4-21/32 inch

1шт.

Part of PTO clutch and brake seal kit P/N A49420.

1шт.

35

A155964

O-RING,1.812" ID x 0.073" Thk

O-RING - piston seal, internal, 1-51/64 inch

1шт.

Part of PTO clutch and brake seal kit P/N A49420.

1шт.

36

A63258

SEAL

- piston, 1-17/32 inch ID

1шт.

Part of PTO clutch and brake seal kit P/N A49420.

1шт.

38

A155962

PISTON

- PTO clutch

1шт.

39

A63260

SPRING

- piston return

1шт.

40

T37909

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

1шт.

43

A67156

PLATE

- clutch, steel

6шт.

44

1981228C1

PLATE

- clutch, friction (Replaces A67130)

6шт.

45

A58217

SNAP RING,#275, 2.594, Ext

RING - retaining, external, PTO hub

1шт.

46

A156284

HUB

- PTO clutch

1шт.

47

A50643

PLATE

- clutch back-up

1шт.

48

A50639

RING

- retaining, back-up plate

1шт.

49

A154932

SHAFT

- PTO drive, rear

1шт.

50

A75171

SNAP RING,#112, 1.060", Ext

RING - retaining, shaft

1шт.

A49420

SEAL

KIT - seals, PTO clutch and brake, Includes: Ref. 8, 13, 14 and 32 - 36

1шт.
