(1-14) - PICTORIAL INDEX, REMOTE HYDRAULICS

Запчасти Case IH 1896 (1-14) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX

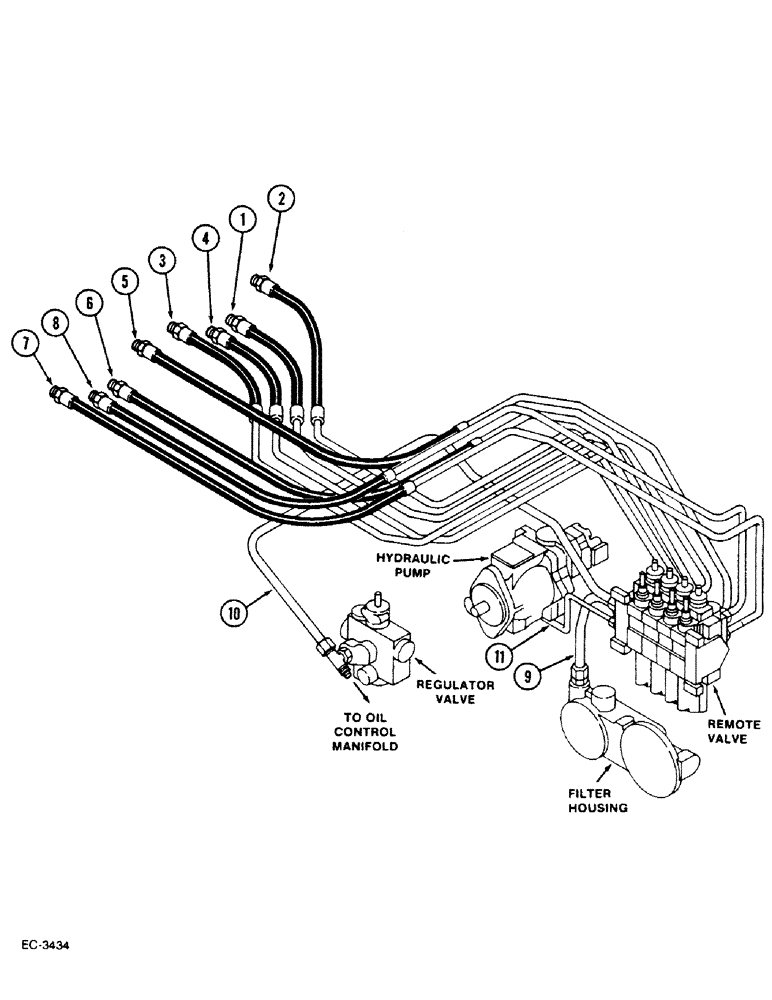

Схема запчастей Case IH 1896 - (1-14) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX
2
1
8
4
11
9
6
7
3
10
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

No. 1 Remote Coupling Hose, Pages 8-39, 41

1шт.

2

No. 2 Remote Coupling Hose, Pages 8-39, 41

1шт.

3

No. 3 Remote Coupling Hose, Pages 8-39, 41

1шт.

4

No. 4 Remote Coupling Hose, Pages 8-39, 41

1шт.

5

No. 5 Remote Coupling Hose, Pages 8-41, 49

1шт.

6

No. 6 Remote Coupling Hose, Pages 8-41, 49

1шт.

7

No. 7 Remote Coupling Hose, Page 8-49

1шт.

8

No. 8 Remote Coupling Hose, Page 8-49

1шт.

9

Tube, Remote Valve to Filter Housing, Pages 8-39, 41

1шт.

10

Tube, Regulator Valve to Remote Valve, Pages 8-39, 41

1шт.

11

Tube, Pump to Remote Valve, Page 8-11

1шт.
