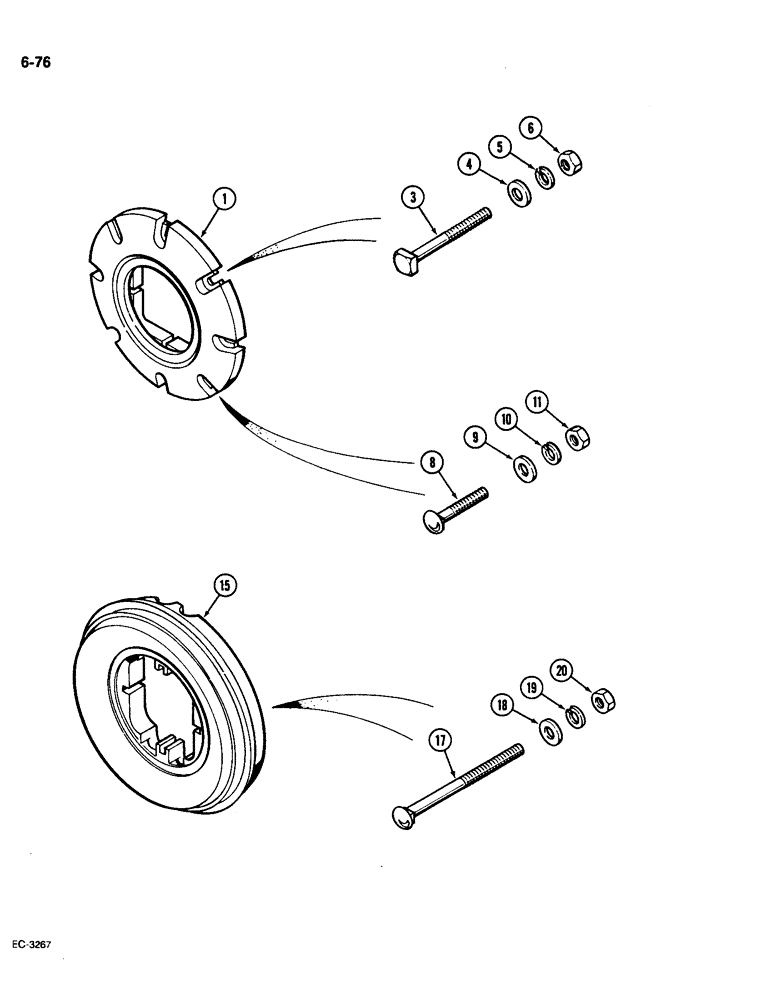

Запчасти Case IH 1896 (6-76) - REAR WHEEL WEIGHTS (06) - POWER TRAIN

1

A33178

WEIGHT

- outside of wheel, 140 lb

1шт.

A67485

KIT - hardware, first outside weight, Includes: Ref. 3 - 11

1шт.

3

117-509

BOLT,Sq Hd, 5/8" - 11 x 6-1/4", Gr 5

- square head, 5/8 NC x 6-1/4 incg, grade 5, outside weights

8шт.

4

95-10

WASHER,5/8"

- flat, 5/8 inch, outside weights

8шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Outside weights 5/8"

8шт.

6

25-1010

NUT,5/8"-11, G5

Outside weights 5/8"-11, G5

8шт.

A62577

PACKAGE

KIT - hardware, each add-on weight, outside

1шт.

8

111-641

CARRIAGE BOLT,Short NK, 5/8"-11 x 4", G5

BOLT - round head, square neck, 5/8 NC x 4 inch, grade 5, outside weights

8шт.

9

95-10

WASHER,5/8"

- flat, 5/8 inch, outside weights

8шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Outside weights 5/8"

8шт.

11

25-1010

NUT,5/8"-11, G5

Outside weights 5/8"-11, G5

8шт.

15

A34797

WEIGHT - inside of wheel, 400 lb

1шт.

A67487

KIT - hardware, inside weights, Includes: Ref. 17 - 20

1шт.

17

111-637

CARRIAGE BOLT,Short NK, 5/8 -11 x 9", G5

BOLT - round head, square neck, 5/8 NC x 9 inch, grade 5, inside weights

1шт.

18

95-10

WASHER,5/8"

- flat, 5/8 inch, inside weights

8шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Inside weights 5/8"

8шт.

20

25-1010

NUT,5/8"-11, G5

Inside weights 5/8"-11, G5

8шт.
