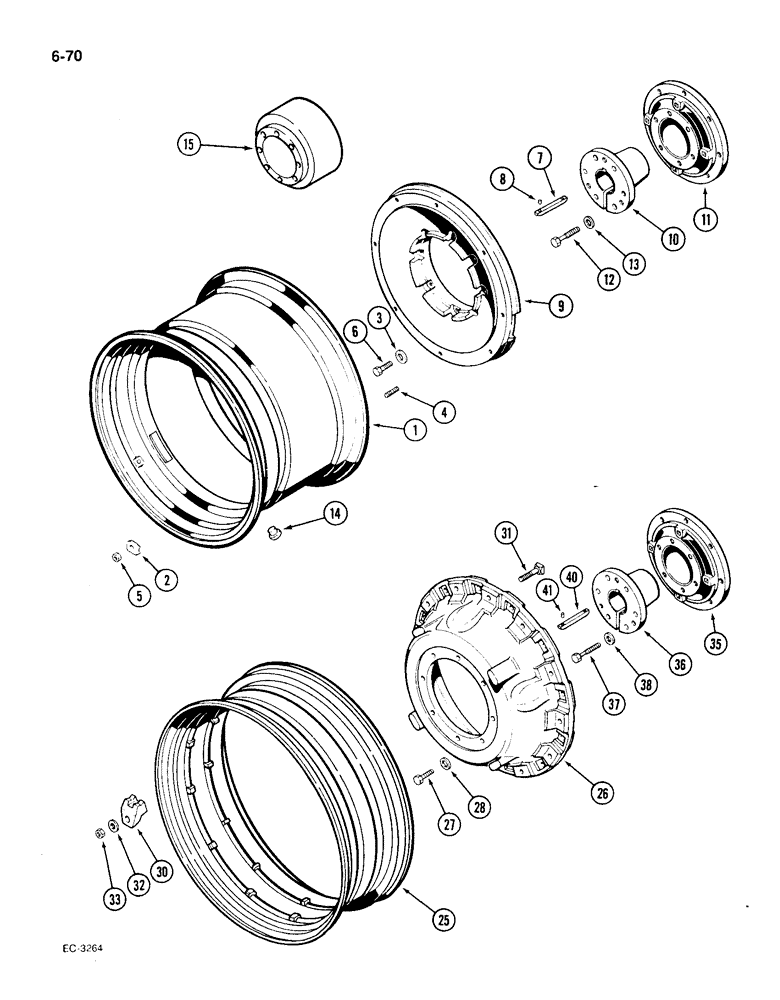

Запчасти Case IH 1896 (6-70) - CAST DUAL REAR WHEELS (06) - POWER TRAIN

1

A33460

RIM

- wheel (DW20-34) (For 23.1 x 34 tire), 34 inch universal

2шт.

A67506

KIT - hardware, dual rear wheels, 34 inch universal, Includes: Ref. 2 - 8

2шт.

2

A166501

CLAMP

- wheel to rim, 34 inch universal

8шт.

3

A64303

WASHER

- flat, hardened steel, 34 inch universal wheel

8шт.

4

A60047

STUD

- clamp, rim to wheel, 34 inch universal

8шт.

5

A27183

NUT

- hex, stud, rear wheel rim, 34 inch universal

8шт.

6

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex, 5/8 NC x 2-3/4 inch, grade 8, 34 inch universal wheel

8шт.

7

A34890

BUCKET TOOTH KEY

KEY - axle, 5/8 x 6 inch, 34 inch universal wheel

1шт.

8

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , 34 inch universal wheel 1/4" x 1/2", Slotted

1шт.

9

A57686

WHEEL

- rear, cast, universal, 34 inch

2шт.

A59790

HUB ASSEMBLY - wheel, universal, 34 inch, Includes: Ref. 10 - 13

2шт.

10

A59792

HUB

BUSHING - wheel, 3-1/2 inch ID, 34 inch universal

1шт.

11

A59791

HUB

- universal, tapered, 34 inch, wheel

1шт.

12

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

SCREW - 3/4 inch, hub to bushing, 34 inch universal wheel

6шт.

13

D31328

WASHER

- flat, 3/4 inch, 34 inch universal wheel

6шт.

14

A145052

PLUG

- valve opening in rim, 34 inch universal wheel

1шт.

15

A67397

KIT - wheel spacer (See Figure 6-74) (Used with 96 inch standard axle), 34 inch universal

1шт.

25

A160971

RIM

- wheel (W16L-38) (For 18.4 x 38 tire), 38 and 42 inch universal

2шт.

25

A160972

RIM

- wheel (W18L-38DB) (For 20.8 x 38 tire), 38 and 42 inch universal

2шт.

25

A160973

RIM

- wheel (W16L-42) (For 18.4 x 42 tire), 38 and 42 inch universal

2шт.

26

A145464

WHEEL

- rear, cast, universal, 38 and 42 inch

2шт.

A67578

KIT - hardware, dual wheels, 38 and 42 inch universal, Includes: Ref. 27 - 33

1шт.

27

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch, grade 8, 38 and 42 inch universal wheel

16шт.

28

D31328

WASHER

- flat, 3/4 inch, 38 and 42 inch universal wheel

16шт.

30

A57654

CLAMP

- adjusting, double ramp, 38 and 42 inch universal wheel

24шт.

31

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch, grade 5, 38 and 42 inch universal wheel

24шт.

32

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- flat, wheel, 38 and 42 inch universal

24шт.

33

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

38 and 42 inch universal wheel 3/4"-10, G5, Hvy

24шт.

A67415

KIT - universal hub (For 3-1/2 inch O.D. axle), 38 and 42 inch, wheel, Includes: Ref. 35 - 38 and hub assembly

1шт.

A67420

KIT - universal hub (For 3-7/8 inch O.D. axle), 38 and 42 inch, wheel, Includes: Ref. 35 - 38 and hub assembly

1шт.

A149013

HUB ASSEMBLY - wheel, universal (For 3-1/2 inch O.D. axle), 38 and 42 inch, Includes: Ref. 35 - 38

2шт.

A149014

HUB

ASSEMBLY - wheel, universal (For 3-7/8 inch O.D. axle), 38 and 42 inch, Includes: Ref. 35 - 38

2шт.

35

A145321

HUB CAP

HUB - universal, tapered (For 3-1/2 inch O.D. axle), 38 and 42 inch, wheel

1шт.

35

A145322

HUB

- universal, tapered (For 3-7/8 inch O.D. axle), 38 and 42 inch wheel

1шт.

36

A59792

HUB

BUSHING - wheel, 3-1/2 inch ID, 38 and 42 inch universal

1шт.

36

A63805

BUSHING

- wheel, 3-7/8 inch ID, 38 and 42 inch universal

1шт.

37

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

SCREW - 3/4 inch, hub to bushing, 38 and 42 inch universal wheel

6шт.

38

D31328

WASHER

- flat, 3/4 inch, 38 and 42 inch universal wheel

6шт.

A66581

KIT

- hardware, 3-1/2 inch O.D. axle, 38 and 42 inch universal wheel, Includes: Ref. 40 and 41

1шт.

A66592

KIT

- hardware, 3-7/8 inch O.D. axle, 38 and 42 inch universal wheel, Includes: Ref. 40 and 41

1шт.

40

A34890

BUCKET TOOTH KEY

KEY - axle, 5/8 x 6 inch (3-1/2 inch O.D. axle), 38 and 42 inch universal wheel

2шт.

40

A63219

KEY

- axle, 3/4 x 6 inch (3-7/8 inch O.D. axle), 38 and 42 inch universal wheel

2шт.

41

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , 38 and 42 inch universal wheel 1/4" x 1/2", Slotted

2шт.
