(6-66) - REAR WHEELS

Запчасти Case IH 1896 (6-66) - REAR WHEELS (06) - POWER TRAIN

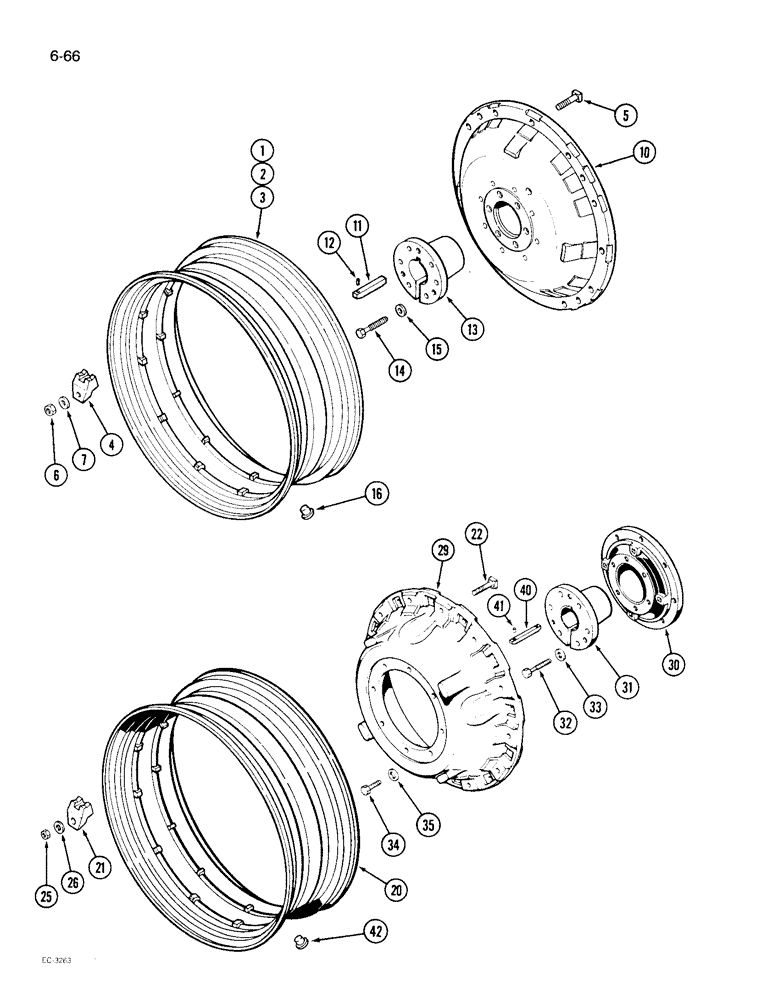

Схема запчастей Case IH 1896 - (6-66) - REAR WHEELS (06) - POWER TRAIN
25
13
26
16
32
40
35
42
22
3
2
11
12
34
10
29
6
14
7
30
31
21
1
41
15
5
4
33
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A33223

RIM

- wheel (W14-38) (For 16.9 x 38 tire), 38 and 42 inch cast

2шт.

1

A160971

RIM

- wheel (W16L-38) (For 18.4 x 38 tire), 38 and 42 inch cast

2шт.

1

A160972

RIM

- wheel (W18L-38DB) (For 20.8 x 38 tire), 38 and 42 inch cast

2шт.

1

A160973

RIM

- wheel (W16L-42) (For 18.4 x 42 tire), 38 and 42 inch cast

2шт.

Ref. 1D, 1978549C4 wheel W12 x 46.

1шт.

4

A57654

CLAMP

- adjusting, double ramp, 38 and 42 inch cast wheel

16шт.

5

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch, grade 5, 38 and 42 inch cast wheel

16шт.

6

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

38 and 42 inch cast wheel 3/4"-10, G5, Hvy

16шт.

7

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- flat, wheel, 38 and 42 inch cast

16шт.

10

A161818

WHEEL

- rear, cast, 38 and 42 inch

2шт.

11

A63219

KEY

- axle, 3/4 x 6 inch, 38 and 42 inch cast wheel

2шт.

12

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , 38 and 42 inch cast wheel 1/4" x 1/2", Slotted

2шт.

13

A145896

BUSHING

- wheel, 3-1/2 inch ID, 38 and 42 inch cast

2шт.

13

A63805

BUSHING

- wheel, 3-7/8 inch ID, 38 and 42 inch cast

2шт.

14

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

SCREW - 3/4 inch, hub to bushing, 38 and 42 inch cast wheel

12шт.

15

D31328

WASHER

- flat, 3/4 inch, 38 and 42 inch cast wheel

2шт.

16

A145052

PLUG

- valve opening in rim, 38 and 42 inch cast wheel

1шт.

20

A160971

RIM

- wheel (W16L-38) (For 18.4 x 38 tire), 38 and 42 inch universal cast

2шт.

20

A160972

RIM

- wheel (W18L-38DB) (For 20.8 x 38 tire), 38 and 42 inch universal cast

2шт.

20

A160973

RIM

- wheel (W16L-42) (For 18.4 x 42 tire), 38 and 42 inch universal cast

2шт.

21

A57654

CLAMP

- adjusting, double ramp, 38 and 42 inch universal cast wheel

24шт.

22

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch, grade 5, 38 and 42 inch universal cast wheel

24шт.

25

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

38 and 42 inch universal cast wheel 3/4"-10, G5, Hvy

24шт.

26

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- flat, wheel, 38 and 42 inch universal cast

24шт.

29

A145464

WHEEL

- rear, cast, universal, 28 and 42 inch

2шт.

A149013

HUB ASSEMBLY - wheel, universal (For 3-1/2 inch O.D. axle), 38 and 42 inch, cast, Includes: Ref. 30 - 33

2шт.

A149014

HUB

ASSEMBLY - wheel, universal (For 3-7/8 inch O.D. axle), 38 and 42 inch, cast, Includes: Ref. 30 - 33

2шт.

30

A145321

HUB CAP

HUB - universal, tapered (For 3-1/2 inch O.D. axle), 38 and 42 inch, cast, wheel

1шт.

30

A145322

HUB

- universal, tapered (For 3-7/8 inch O.D. axle), 38 and 42 inch, cast, wheel

1шт.

31

A59792

HUB

BUSHING - wheel, 3-1/2 inch ID, 38 and 42 inch universal cast

1шт.

31

A63805

BUSHING

- wheel, 3-7/8 inch ID, 38 and 42 inch universal cast

1шт.

32

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

SCREW - 3/4 inch, hub to bushing, 38 and 42 inch universal cast wheel

6шт.

33

D31328

WASHER

- flat, 3/4 inch, 38 and 42 inch universal cast wheel

6шт.

34

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch, grade 8, 38 and 42 inch universal cast wheel

16шт.

35

D31328

WASHER

- flat, 3/4 inch, 38 and 42 inch universal cast wheel

16шт.

40

A63219

KEY

- axle, 3/4 x 6 inch, 38 and 42 inch universal cast wheel

2шт.

41

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , 38 and 42 inch universal cast wheel 1/4" x 1/2", Slotted

2шт.

42

A145052

PLUG

- valve opening in rim, 38 and 42 inch universal cast wheel

1шт.
