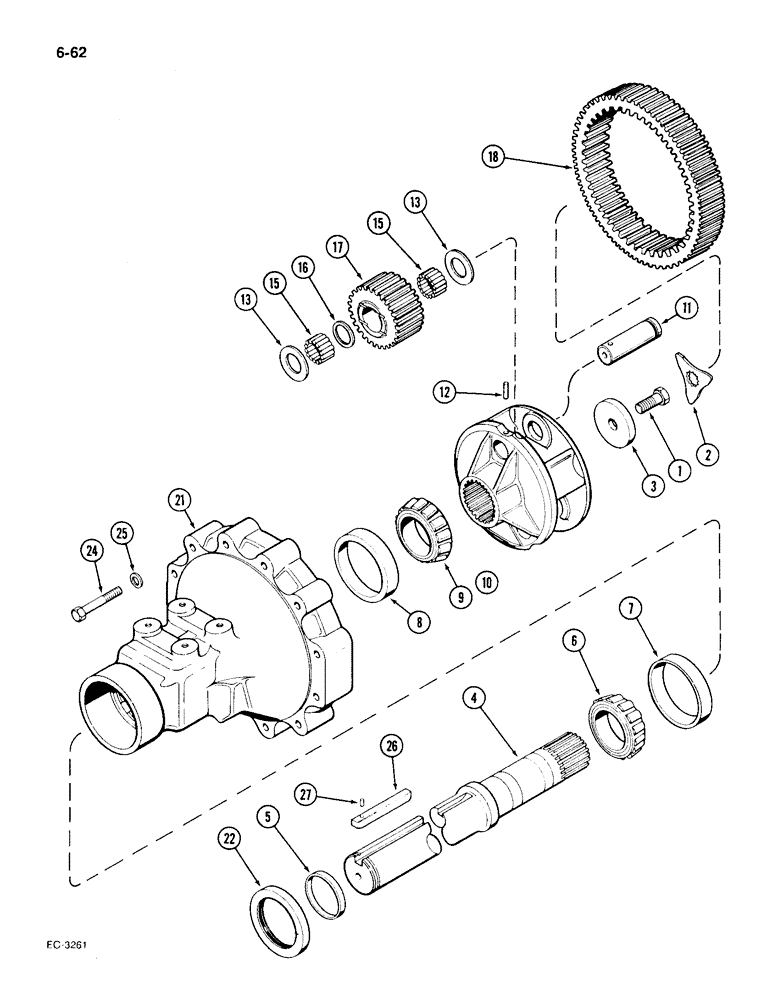

Запчасти Case IH 1896 (6-62) - REAR AXLE, HOUSING AND PLANETARY GEARS, 120 INCH LONG AXLE (06) - POWER TRAIN

1

26-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

- hex, 7/8 NC x 2-1/4 inch, grade 8

2шт.

2

A63221

PLATE

- bearing lock

2шт.

3

A63220

PLATE

- retaining, rear axle

2шт.

4

A155225

SHAFT

- rear axle

2шт.

Prior to Transmission S/N 16265423

1шт.

4

A168510

AXLE

SHAFT - rear axle

2шт.

Transmission S/N 16265423 and after

1шт.

5

A67368

RING

- wear, outer oil seal

1шт.

6

A34340

ROLLER BEARING

CONE - bearing, outer

2шт.

7

A34343

BEARING CUP

CUP - bearing, outer

2шт.

8

A50324

BEARING CUP

CUP - bearing, inner

2шт.

9

PA34339

NUT

CONE - bearing, inner

2шт.

10

A148732

CARRIER

- planetary gears

2шт.

Prior to Transmission S/N 16265423

1шт.

10

A168153

CARRIER

- planetary gears

2шт.

Transmission S/N 16265423 and after

1шт.

11

A51449

YOKE

PIN - planetary gear

6шт.

Prior to Transmission S/N 16265423

1шт.

11

A168244

PIN,41.94mm OD x 138.2mm L

- planetary gear (With 3/8 inch hole)

6шт.

Transmission S/N 16265423 and after

1шт.

12

138-2066

PIN,3/8" x 1 1/2", Coiled

6шт.

13

A63228

WASHER

- planetary gear

12шт.

Prior to Transmission S/N 16265423

1шт.

13

A67116

WASHER

- planetary gear

12шт.

Transmission S/N 16265423 and after

1шт.

15

A46421

ROLLER BEARING

KIT - bearing, planetary gear rollers (Pack of 46)

1шт.

Prior to Transmission S/N 16265423

1шт.

15

A47252

ROLLER BEARING

KIT - bearing, planetary bearing (Pack of 38)

1шт.

Transmission S/N 16265423 and after

1шт.

16

A63227

SPACER

- bearing seperator

6шт.

16

A67117

SPACER

- bearing separator

6шт.

Transmission S/N 16265423 and after

1шт.

17

A168174

GEAR

- planetary, rear axle

6шт.

Prior to Transmission S/N 16265423

1шт.

17

A168175

GEAR

- planetary, rear axle

6шт.

Transmission S/N 16265423 and after

1шт.

18

A140811

GEAR

- ring, planetary

2шт.

Prior to Transmission S/N 16265423

1шт.

18

A151934

GEAR

- ring, planetary

2шт.

Transmission S/N 16265423 and after

1шт.

21

A179634

HOUSING

- rear axle

2шт.

Prior to Transmission S/N 16265423

1шт.

21

A179983

HOUSING

- rear axle

2шт.

Transmission S/N 16265423 and after

1шт.

22

A154957

OIL SEAL

- oil, rear azle

2шт.

24

26-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, grade 8

24шт.

25

A64303

WASHER

- flat, hardened steel

24шт.

26

A34890

BUCKET TOOTH KEY

KEY - axle, 5/8 x 6 inch

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
