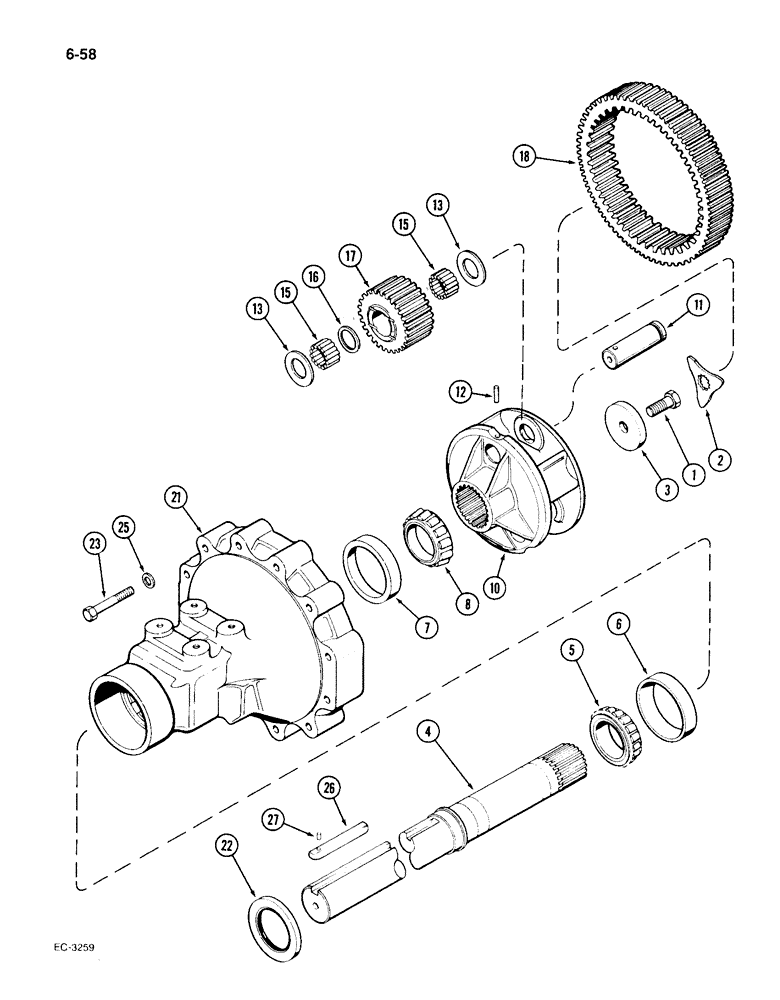

Запчасти Case IH 1896 (6-58) - REAR AXLE, HOUSING AND PLANETARY GEARS, 96" LONG, 3-1/2 DIAMETER AXLES, PRIOR TO TRANS. S/N 16265423 (06) - POWER TRAIN

1

26-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

- hex, 7/8 NC x 2-1/4 inch, grade 8

2шт.

2

A63221

PLATE

- bearing lock

2шт.

3

A63220

PLATE

- retaining, rear axle

2шт.

4

A151843

SHAFT

- rear axle

2шт.

5

PA34339

NUT

CONE - bearing, outer

2шт.

6

A50324

BEARING CUP

CUP - bearing, outer

2шт.

7

A67331

CUP

- bearing, inner

2шт.

8

A67332

ROLLER BEARING,3.149" ID x 1.3386"

CONE - bearing, inner

2шт.

10

A148732

CARRIER

- planetary gear

2шт.

11

A151499

PIN - planetary gear (With 3/8 inch hole)

6шт.

12

138-2066

PIN,3/8" x 1 1/2", Coiled

6шт.

13

A63228

WASHER

- planetary gear

12шт.

15

A46421

ROLLER BEARING

KIT - bearing rollers, planet gear (Pack of 46)

1шт.

16

A63227

SPACER

- bearing separator

6шт.

17

A168174

GEAR

- planetary, rear axle

6шт.

18

A140811

GEAR

- ring, planetary

2шт.

21

A179633

HOUSING

- rear axle

2шт.

22

A155226

OIL SEAL

- oil,rear axle

2шт.

23

26-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, grade 8

24шт.

25

A64303

WASHER

- flat, hardened steel

24шт.

26

A34890

BUCKET TOOTH KEY

KEY - axle, 5/8 x 6 inch

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
