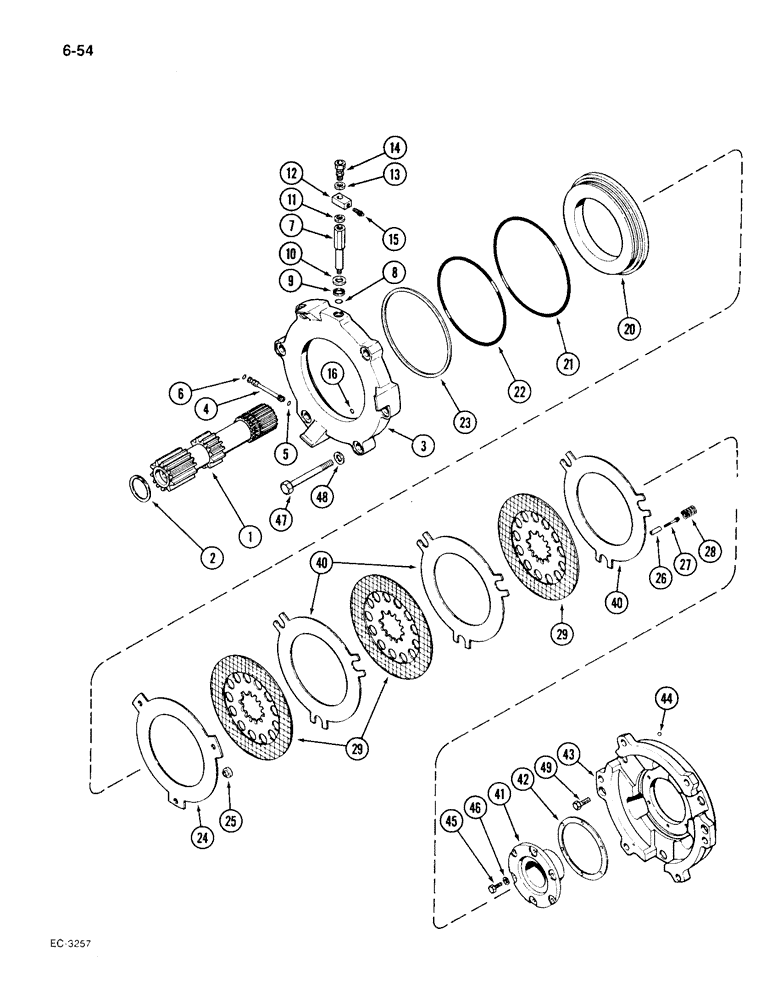

Запчасти Case IH 1896 (6-54) - DIFFERENTIAL ASSEMBLY, SHAFT AND BRAKE, TRANSMISSION SERIAL NUMBER 16265423 AND AFTER (06) - POWER TRAIN

1

A168167

SHAFT

- differential sun gear (Replaces A168154)

2шт.

2

A63195

SNAP RING,#215, 2.060", Ext Spiral

RING - retaining, sun gear shaft

2шт.

3

A148728

CYLINDER

- brake support, right and left

2шт.

4

A150240

TUBE

oil, differential lock

1шт.

5

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

-012, 70 Duro, .364" ID x .070" Thk

1шт.

6

A8613

O-RING,0.426" ID x 0.566" OD

-013, 70 Duro, .426" ID x .070" Thk

1шт.

7

A66395

FITTING

ADAPTER - hydraulic brake bleed screw

2шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

9

A64071

GROMMET

- brake fitting

2шт.

10

195-2201

WASHER,0.69" ID x 1.12" OD x 0.07" Thk

- flat, 11/16 x 1-1/4 x 1/16 inch

6шт.

11

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - upper, brake fitting

2шт.

12

A64072

FITTING

- brake bleed screw

2шт.

13

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- lower, brake fitting

2шт.

14

A64073

HOLLOW SCREW

- connector, brake

2шт.

15

A41491

BLEEDER,1/4" - 28 x 23.37mm

- air bleed, brake

4шт.

16

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - square section, 0.301 ID x 0.066 inch

1шт.

20

A144692

PISTON

- brake

2шт.

21

A144693

O-RING,0.21" Thk x 8.97" ID, -373, Cl 6, 90 Duro

-373, 90 Duro, 8.975" ID x .210" Thk, piston, 9-11/64 inch

2шт.

22

A140826

O-RING,7.975" ID x 0.21"

-369, 90 Duro, 7.975" ID x .210" Thk, piston, 8-3/16 inch

2шт.

23

A144694

RING

- sealing, piston, 8-6/64 inch

2шт.

24

A67337

PLATE

- piston return

2шт.

25

A67362

RETAINER

- brake adjuster

6шт.

26

A154607

PIN

- roll

6шт.

27

A156626

LOCK BOLT,1/4" - 20 x 1.50, Gr 8

SCREW - brake adjuster

6шт.

28

A151927

SPRING

- brake return

6шт.

29

1981266C1

PLATE

- brake, sintered

6шт.

40

A67336

PLATE

- brake, steel

6шт.

41

A142698

RETAINER

- bearing carrier

2шт.

42

A140819

SHIM,.003" Thk

Retainer .003" Thk

1шт.

42

A140820

SHIM,.007" Thk

Retainer .007" Thk

1шт.

42

A140821

SHIM

- retainer, 0.010 inch

1шт.

42

A155160

SHIM

- retainer, 0.020 inch

1шт.

43

A142727

HOUSING

- differential brake, left (Right illustrated)

1шт.

A152150

HOUSING

ASSEMBLY - differential brake, right, Includes: Ref. 43 and 44

1шт.

43

A142725

HOUSING

- differential brake, right

1шт.

44

211-9

BALL,5/16" Dia

- 5/16 inch, grade 200, chrome alloy steel

1шт.

45

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

12шт.

46

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- flat, hardened

12шт.

47

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

12шт.

48

A64303

WASHER

- flat, hardened steel

12шт.

49

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.
