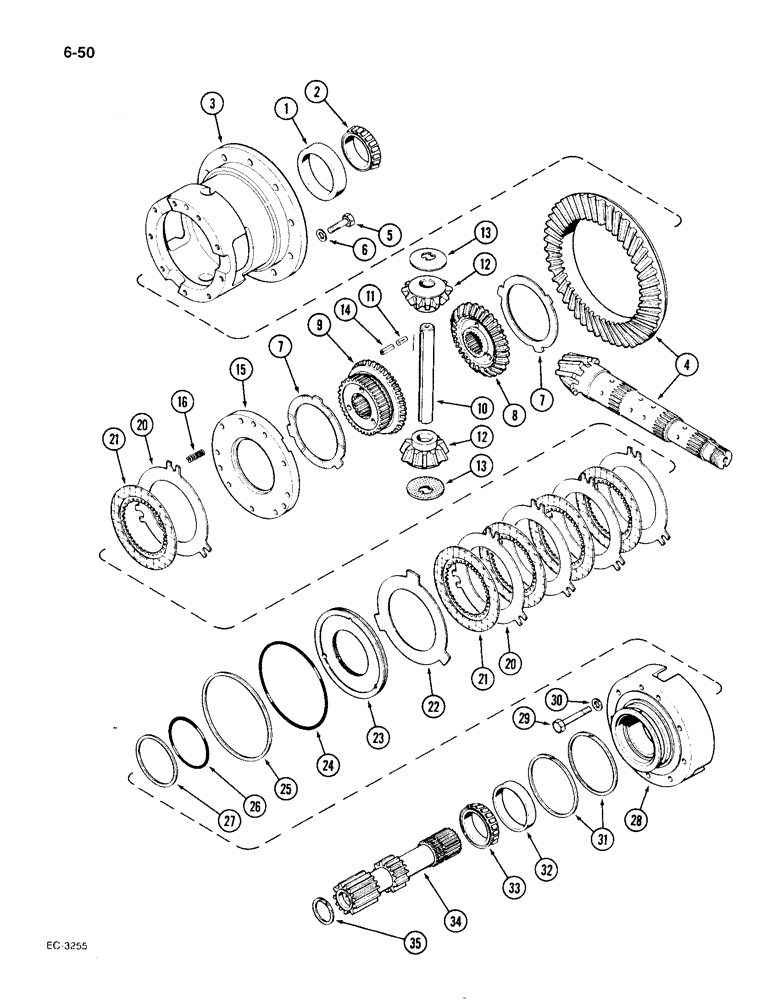

Запчасти Case IH 1896 (6-50) - DIFFERENTIAL ASSEMBLY, PINION GEAR, CLUTCH AND CAGE (06) - POWER TRAIN

1

A67327

BEARING CUP,120 mm OD x 25 mm

CUP - bearing, ring gear differential cage

1шт.

2

A67328

ROLLER BEARING,74.98mm ID x 29.5mm W

CONE - bearing, ring gear differential cage

1шт.

3

A179507

HOUSING

CAGE - differential gear

1шт.

4

A168188

GEAR-SET

GEAR - set, bevel and countershaft (Matched set) (Without brake)

1шт.

4

A168189

GEAR

- set, bevel and countershaft (Matched set) (MFD Tractors)

1шт.

5

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8

10шт.

6

A64303

WASHER

- flat, hardened steel

10шт.

7

A153988

THRUST WASHER,137.92mm ID x 191.52mm OD x 2.39mm Thk

- thrust

2шт.

8

A154890

GEAR

- bevel, left hand

1шт.

9

A154891

GEAR

- bevel, right hand

1шт.

10

A168064

PIN,31.74mm OD x 254mm L

- differential pinion

1шт.

11

A159573

GROOVED PIN,3/8" x 1", Type A

Pin, Grooved, 3/8" x 1", Type A

1шт.

12

A179575

PINION

GEAR - pinion

2шт.

13

A179590

THRUST WASHER,32.05mm ID x 80mm OD x 2.39mm Thk

- thrust

2шт.

14

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

1шт.

15

A154013

PLATE

- reaction, differential lock

1шт.

16

A152187

SPRING

- return, differential lock

3шт.

20

A67334

PLATE

- clutch, steel

5шт.

21

A136340

PLATE

- clutch, sintered

5шт.

22

A67335

PLATE

- piston return

1шт.

23

A146670

PISTON

- differential lock

1шт.

24

A150753

O-RING,7.84" ID x 0.107"

- 7-7/8 inch O.D., piston, outer

1шт.

25

A146682

RING

- sealing, 8-9/32 inch O.D., piston outer

1шт.

26

A150754

O-RING,4.718" ID x 0.107"

- 4-11/16 inch ID, piston, inner

1шт.

27

A146683

RING

- sealing, 4-15/32 inch ID, piston, inner

1шт.

28

A142728

HOUSING

CAGE - differential lock

1шт.

29

26-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

- hex, 1/2 NC x 3-1/2 inch, grade 8

9шт.

30

A150672

WASHER

- flat, hardened, 1/2 x 1 x 3/32 inch

9шт.

31

A67370

RING

- sealing

2шт.

32

L33303

BEARING CUP

CUP - bearing

1шт.

33

L33297

ROLLER BEARING

CONE - bearing

1шт.

34

A168167

SHAFT

- differential sun gear, Start Serial: 16265423

2шт.

34

A182731

SHAFT

- differential sun gear (Replaces A168154), Serial Range: -16265423

2шт.

35

A63195

SNAP RING,#215, 2.060", Ext Spiral

RING - retaining, sun gear shaft

2шт.
