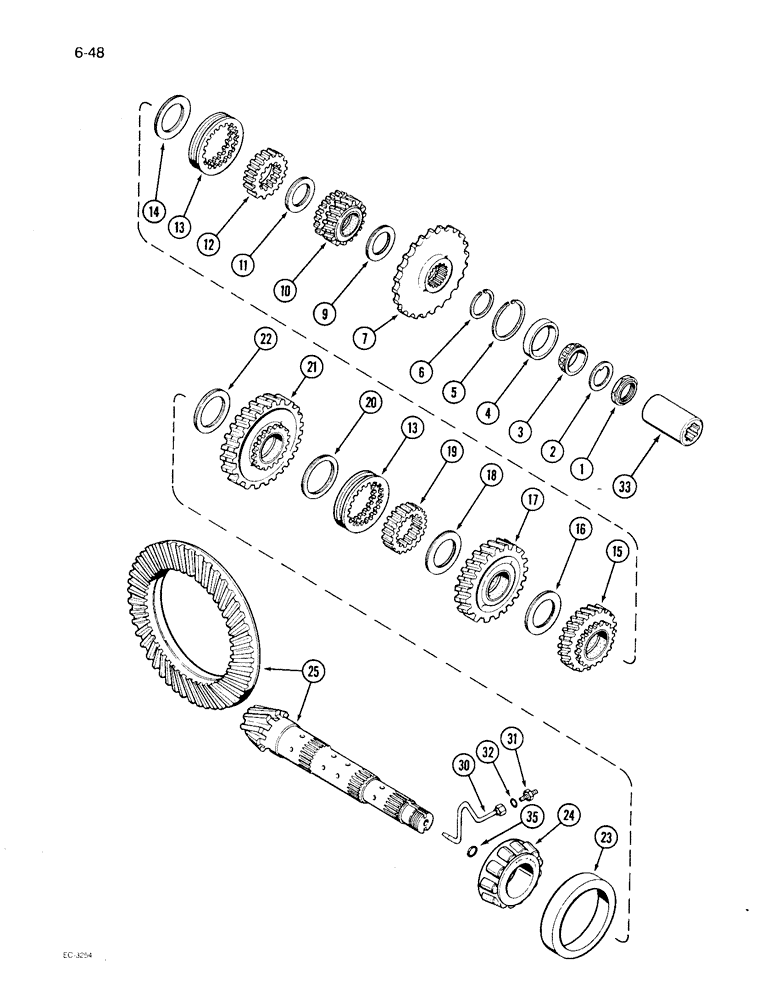

Запчасти Case IH 1896 (6-48) - TRANSMISSION COUNTERSHAFT (06) - POWER TRAIN

1

A60019

NUT

- bearing adjusting (Without brake)

1шт.

1

A156561

NUT

- bearing adjusting (MFD Tractor) (See Figure 6-42)

1шт.

2

A28170

WASHER

- bearing (Without brake)

1шт.

3

R32217

ROLLER BEARING,50 mm ID x 21.5 mm

CONE - bearing, countershaft, front

1шт.

4

R32216

BEARING CUP,82 mm OD x 17 mm

CUP - bearing, countershaft, front

1шт.

5

A152194

RING

- retaining, countershaft front bearing

1шт.

6

A150930

RING

- retaining, 0.078 inch, park lock gear

1шт.

6

A152278

RING

- retaining, 0.088 inch, park lock gear

1шт.

6

A152279

RING

- retaining, 0.098 inch, park lock gear

1шт.

6

A152280

RING

- retaining, 0.108 inch, park lock gear

1шт.

6

A152281

RING

- retaining, 0.118 inch, park lock gear

1шт.

6

A152282

RING

- retaining, 0.128 inch, park lock gear

1шт.

6

A152283

RING

- retaining, 0.138 inch, park lock gear

1шт.

7

A155636

GEAR

- park lock (See Figure 6-56)

1шт.

9

A152706

WASHER

- thrust, 0.109 inch (Position 7)

1шт.

10

A157394

GEAR

- driven (19 and 31 teeth), 4th

1шт.

11

A152705

WASHER

- thrust, 0.203 inch (Position 6)

1шт.

12

A153892

HUB

- pinion, splined shaft (39 internal, 31 external teeth) (3rd and 4th gear)

1шт.

13

A168028

COLLAR

- sliding, shift

2шт.

14

A152704

WASHER

- thrust, 0.156 inch (Position 5)

1шт.

15

A157396

GEAR

- driven (29 and 31 teeth), 3rd

1шт.

16

A152703

WASHER, THRUST

WASHER - thrust, 0.436 inch (Position 4)

1шт.

17

A157398

GEAR

- driven (29 and 31 teeth), 2nd

1шт.

18

A152702

WASHER

- thrust, 0.156 inch (Position 3)

1шт.

19

A153891

HUB

- pinion, splined shaft (43 internal, 31 external teeth) (1st, 2nd and reverse)

1шт.

20

A152701

WASHER

- thrust, 0.156 inch (Position 2)

1шт.

21

A157400

GEAR

- driven (42 and 31 teeth), 1st

1шт.

22

A152700

WASHER

- thrust, 0.250 inch (Position 1)

1шт.

23

A140553

LAMP

- bearing, countershaft, rear

1шт.

24

A63089

ROLLER BEARING,76.2mm ID x 46.11mm W

CONE - bearing, countershaft, rear

1шт.

25

A168188

GEAR-SET

GEAR - set, bevel and countershaft (Matched set) (Without brake)

1шт.

25

A168189

GEAR

- set, bevel and countershaft (Matched set) (MFD Tractor)

1шт.

30

A154742

TUBE

- countershaft lubrication (Without brake)

1шт.

30

A157297

TUBE

- countershaft lubrication (MFD Tractor) (See Figure 6-42)

1шт.

31

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

UNION - bulkhead, 7/16 inch NF

1шт.

32

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

33

A185065

SPLINED COUPLING

COUPLING - countershaft (MFD Tractor) (See Figure 6-42)

1шт.

35

A153571

O-RING,0.799" ID x 1.005" OD x 0.103"

-117, Cl 7, .799" ID x .103" Thk, countershaft (MFD Tractor)

1шт.
